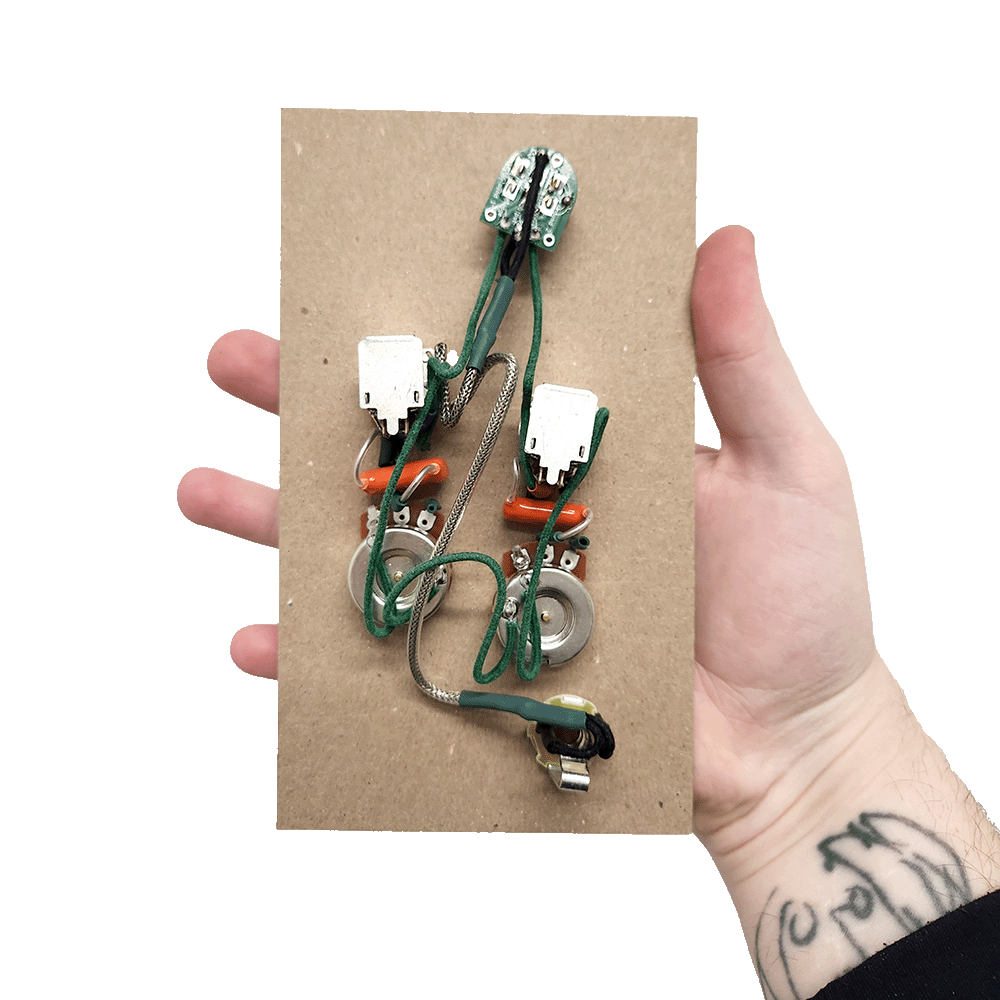

Gunstreet SG Wiring Harness - Coil Cutting

Sale price$114.95

Our kits are a perfect drop-in replacement for your SG style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

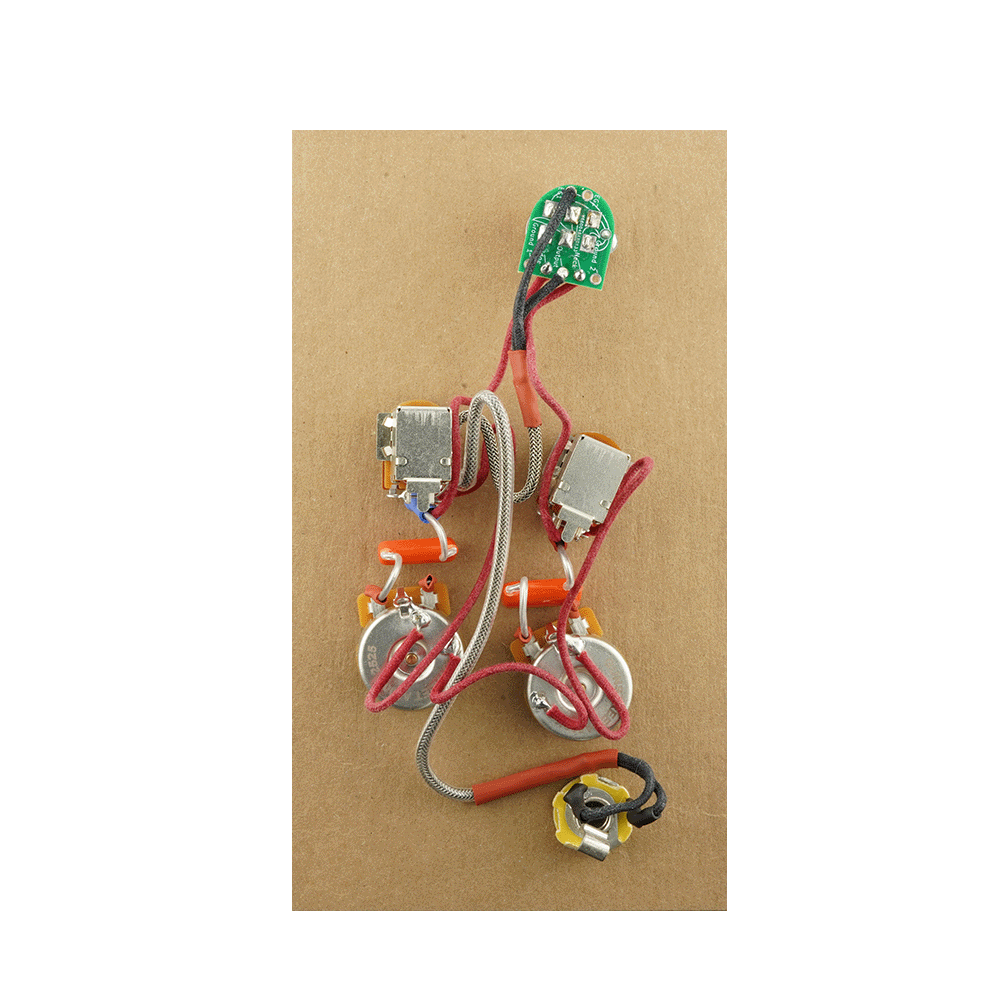

  1. Red 50’s Wiring (Vintage High Pass Filter) This wiring was found in the first gen of electric guitars. It features a transparent sound as you roll off the volume at the cost of a steep volume taper and an on/off tone control that interacts a lot with your volume position
  2. Blue Modern Wiring: (Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.

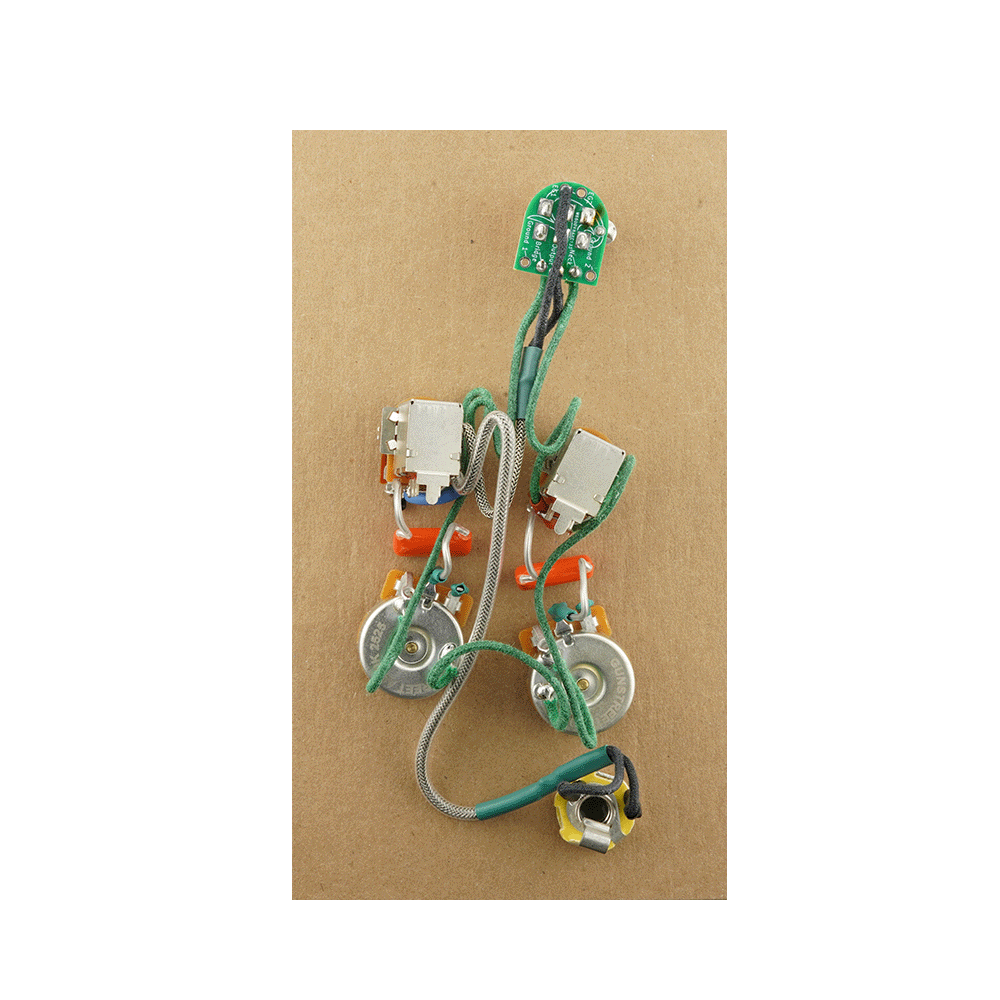

  3. Green Treble Bleed (Modern High pass Filter) Often called a “Volume bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes

Secondary Circuit: Coil Cutting: Often called by many names like coil splitting or tapping. This secondary wiring style cancels out the humcanceling properties of a humbucker by grounding a coil and changing it to a single coil.

Part Info

Metric Pot

  • Taper style: Audio

  • Shaft Diameter: 6MM

  • Shaft Length: 9.52MM (3/8th)

  • Knob Pattern: Coarse

  • Nut thread: M8 x 0.75

  • Metric Push Pull Require Depth: 1-1/16th”

DHE Gunstreet Pots

    • Taper Style: Custom Audio Taper

    • Knob type: 18 spline Coarse knurling

    • Shaft diameter: 3/8" (9.52mm)

    • Thread type: 3/8"-32

    • Threaded portion: 3/8" (9.52mm)

    • Required mounting hole diameter: 3/8" (9.52mm)

    • Value: 500k +/-15%

CTS 450G Push Pull

  • Taper style: Audio

  • Shaft Diameter: 3/8” (9.52MM)

  • Shaft Length:

  • Short shaft: 3/8th (9.52MM )

  • Knob Pattern: Fine

  • Nut thread: 3/8 x 32

  • CTS Push Pull Require Depth: 1”



  • Required Body cavity depth: 7/8”" (22.23MM)

  • Mounting hole diameter: 1/2" (12.70mm)

  • Thread height: 11/32” (8.74MM)

  • Thread Pattern: 15/32x 32

  • Switch tip Thread: 8-32

Neutrik Rean mono jack

  • Required mounting hole diameter: 3/8" (9.53mm)

  • Thread: 3/8 x 32Thread height: 3/8" (9.53mm)

Requirements (Must Read)

  • This Kit Requires that you have 4 conductor pickup wires
  • SG bodies come in many different thicknesses. Make sure your cavity can fit a Push Pull as some will be too thin
  • This Kit Requires that you have pickups with a 4 conductor wire
  • Converting an Import guitar to US spec

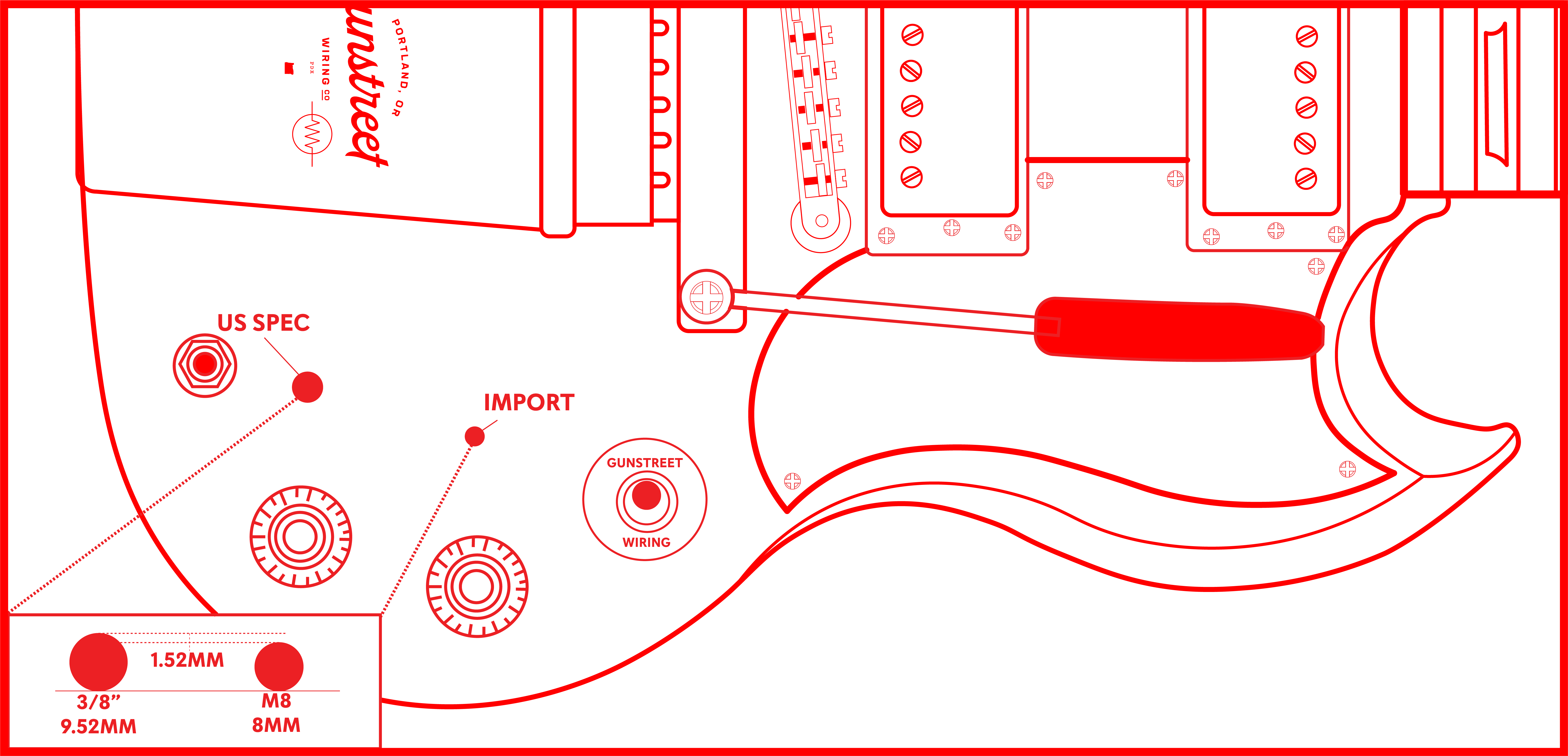

    • US spec pots like CTS or Bourns will require you to enlarge the stock pot holes to be 3/8th
    • If swapping to CTS you will need new "Fine Knurled" knobs
    • Import cavities are different then US spec guitars. Double check if your cavity can fit a Right angle toggle switch. If it cannot, during checkout in our "Order notes" let us know you need a straight toggle switch and we will change that
  • Getting the correct knob can stop you from damaging the pot when installing
    • Choosing Import Versions will require an 18th tooth "Coarse" Knurled knob
    • Choosing a CTS Version will require a 24 tooth "Fine" knurled knob

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!
