Gunstreet SG Wiring Harness - Classic
Gunstreet SG Wiring Harness - Classic
Gunstreet SG Wiring Harness - Classic

Gunstreet SG Wiring Harness - Classic

Sale price$119.95

Our kits are a perfect drop-in replacement for your SG style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

  1. Red 50’s Wiring (Vintage High Pass Filter) This wiring was found in the first gen of electric guitars. It features a transparent sound as you roll off the volume at the cost of a steep volume taper and an on/off tone control that interacts a lot with your volume position

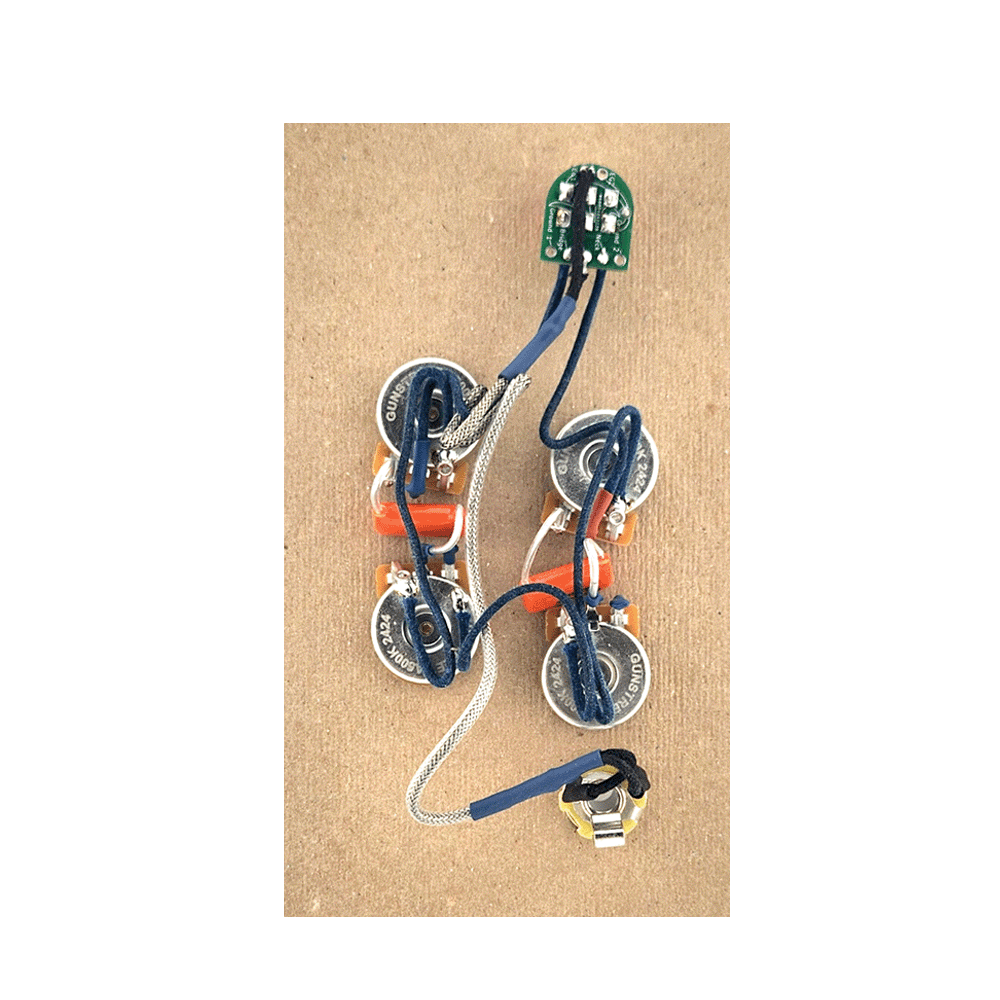

  2. Blue Modern Wiring: (Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.

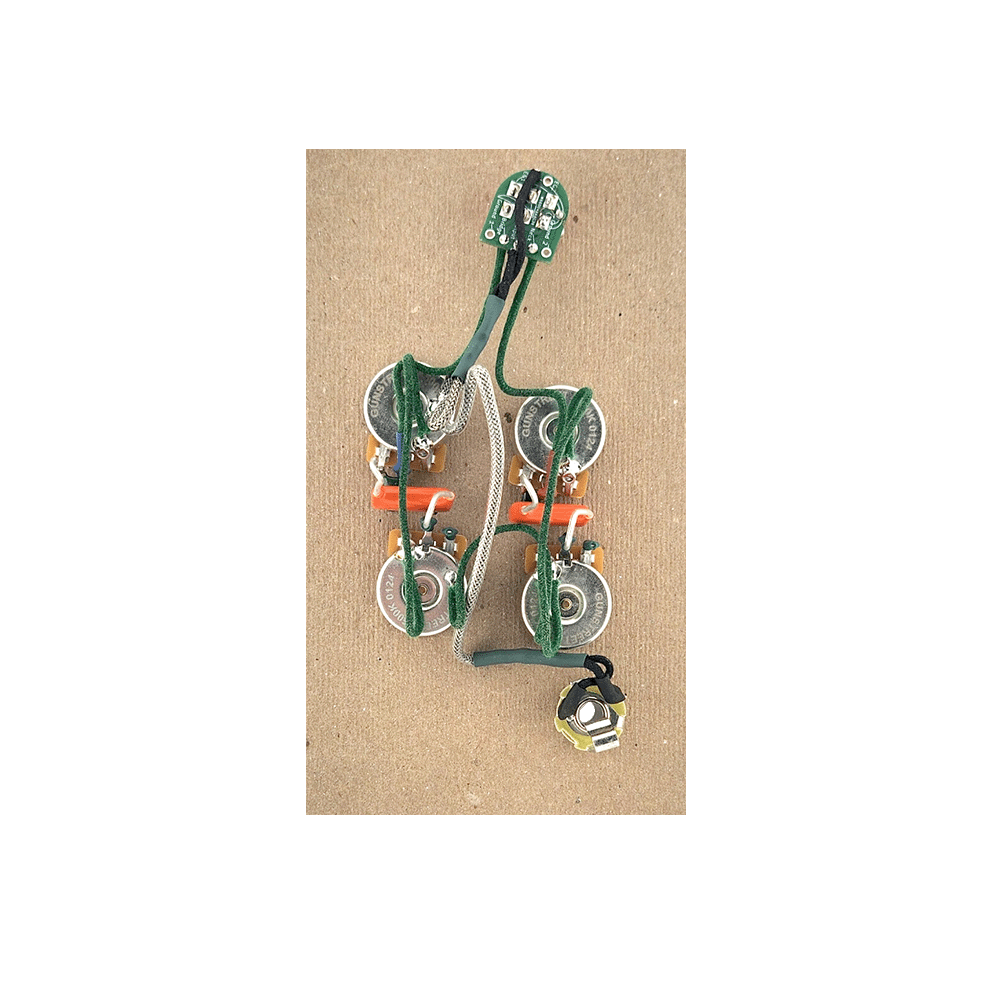

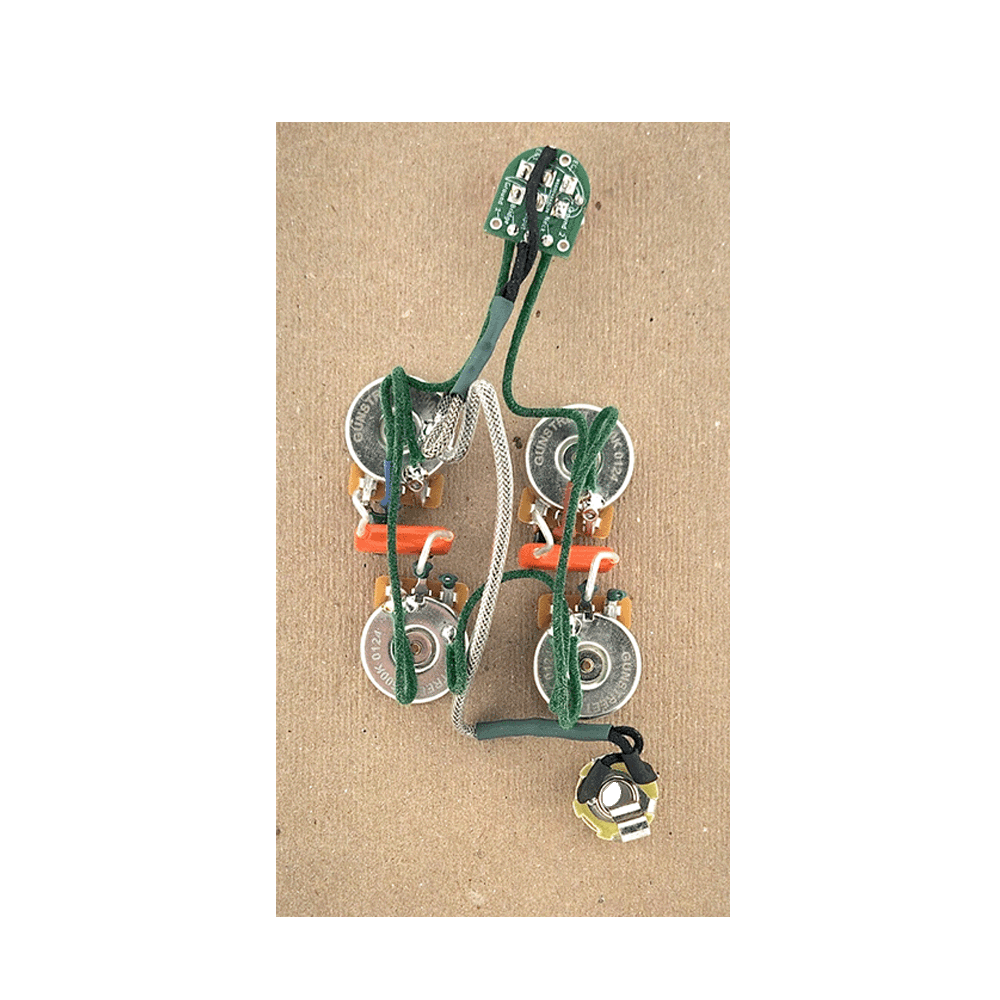

  3. Green Treble Bleed (Modern High pass Filter) Often called a “Volume bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes

Part Info

Pickup Option Values

  1. Humbucker Values: Pots 500k, Cap 0.022uf

  2. P90: Values: Pots 500kVol 250kTone, Cap 0.022uf

Metric: New custom DHE Gunstreet Pots

  • Shaft Diameter: 6MM
  • Taper style: Custom Audio taper
  • Shaft Length: 9.52MM (3/8th)
  • Knob Pattern:18 tooth Coarse
  • Nut thread: M8 x 0.75

US Spec: DHE Gunstreet Pots

  • Taper Style: Custom Audio Taper

  • Knob type: 18 spline Fine knurling

  • Shaft diameter: 3/8" (9.52mm)

  • Thread type: 3/8"-32

  • Threaded portion: 3/8" (9.52mm)

  • Required mounting hole diameter: 3/8" (9.52mm)



  • New Gunstreet Toggle Switch Specs

    Our new easy to install switch offers a better overall quality compared to Switchcraft. All while offering a quieter switching experience.

    • Body cavity depth 5/8" (15.87mm)

    • Mounting hole diameter 1/2" (12.70mm)

    • Thread height 7/32" (5.56mm)

    • Switch Tip Threading: M4

    Learn more about it and our new Gunstreet pots here

Neutrik Rean mono jack

  • Required mounting hole diameter: 3/8" (9.53mm)

  • Thread: 3/8 x 32Thread height: 3/8" (9.53mm)

Requirements

  • Although our custom Metric pot is the same as our US Spec in Quality, if you want to convert an Import guitar to our US spec pot. You will be required to enlarge the stock 8mm pot holes to 3/8th(9.32mm)
  • STOP! THIS IS VERY IMPORTANT: These Pots require an 18-tooth "Coarse" knurled knob. If you are swapping from a CTS pot to a Gunstreet pot, new knobs will be required.
  • Proper installation of the correct knobs is crucial to prevent damage. Applying more than 30 lbs of upward or downward force can damage any potentiometer, or shaft. Remember, never forcefully pull a stuck knob; instead, "walk it off."

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!
