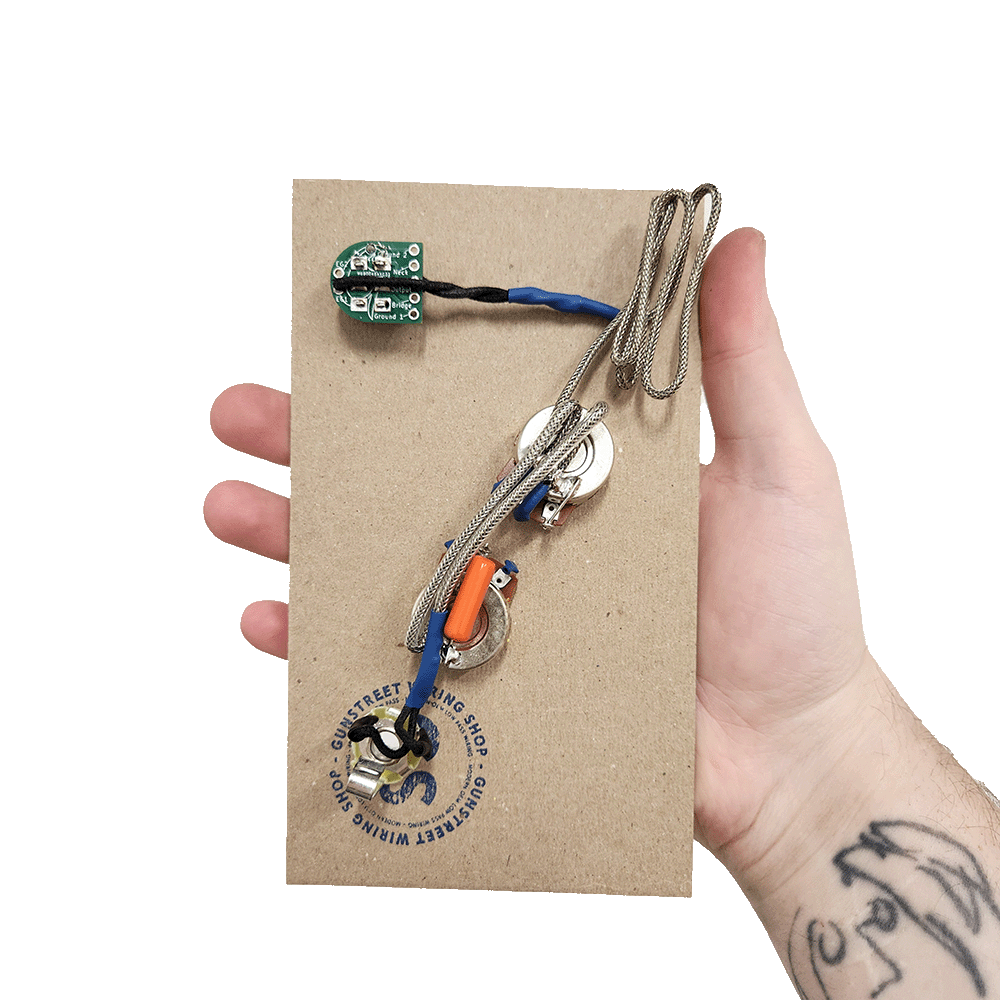

Gunstreet Jazzmaster Wiring Harness - No Rhythm Gunstreet Jazzmaster Wiring Harness - No Rhythm Gunstreet Jazzmaster Wiring Harness - No Rhythm
Gunstreet Jazzmaster Wiring Harness - No Rhythm
Gunstreet Jazzmaster Wiring Harness - No Rhythm
Gunstreet Jazzmaster Wiring Harness - No Rhythm

Gunstreet Jazzmaster Wiring Harness - No Rhythm

SKU: GSWH-JMNR-MH-5

$74.95
(1)

Our kits are a perfect drop-in replacement for your Jazzmaster style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

  1. Red 50’s Wiring (Vintage High Pass Filter) This wiring was found in the first gen of electric guitars. It features a transparent sound as you roll off the volume at the cost of a steep volume taper and an on/off tone control that interacts a lot with your volume position
  2. Blue Modern Wiring: (Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.
  3. Green Volume Bleed (Modern High pass Filter) Often called a “treble bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.

Part Info

Switchcraft L Angle Toggle Switch Specs

  • Body cavity depth 1" (25.4mm)

  • Mounting hole diameter 1/2" (12.70mm)

  • Thread height 7/32" (5.56mm)

CTS Spec Pots

  • Resistance 500K-ohm

  • Taper style: Audio

  • Knob type = 24 spline Fine knurling

  • Shaft diameter 0.235" (5.95mm)

  • Thread type: 3/8"-32

  • Threaded portion, 3/8"

  • Required mounting hole diameter 3/8" (9.52mm)

Low Friction Bourns Spec Pots

  • Resistance 500K-ohm

  • Taper style: Audio

  • Knob type = 18 spline Coarse knurling

  • Shaft diameter 0.235" (5.95mm)

  • Thread type: 3/8"-32

  • Threaded portion, 3/8"

  • Required mounting hole diameter 3/8" (9.52mm)

Import Pot Specs

  • Value: 500k -/+20%

  • Shaft Style: Split, Coarse Knurling

  • Diameter: 6mm

  • Thread:M8 x 0.75

Capacitor Specs

  • Brand: CDE

  • Model "Orange Drop"

Neutrik Output Jack Specs

  • Mounting hole diameter 3/8" (9.52mm)

  • Thread 3/8 x 32

  • Threaded portion height 1/4" (6.35mm)

Pot and Cap values by Pickup choice

  • Classic Jazzmaster: 1meg/0.033uf

  • Humbucker: 500k/0.022uF

  • P90: 250k/0.047uf

Requirements (Must Read)

  • This circuit cannot be used to "Splice" into a standard Rhytm circuit style layout. These are 2 completely different circuits.
  • Converting an Import guitar to US spec
    • US spec pots will require you to enlarge the stock pot holes to be 3/8th
    • If swapping to CTS you will need new "24 tooth Fine Knurled" knobs
  • Choosing Bourns or Import Versions will require an 18th tooth "Coarse" Knurled knob
  • Choosing a CTS Version will require a 24 tooth "Fine" knurled knob

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!

Instructions

How to install a 50s, Modern, or Volume Bleed Wiring kit in your jazzmaster
