Unlock a whole lotta tone with one of rock’s most legendary wiring circuits.

We’ve made the famously complex Jimmy Page circuit easier to command, putting 21 distinct tones at your fingertips, from Black Dog Bite to Misty Mountain shimmer.

Coil split the bridge, coil cut the neck for hum-canceling middle-position performance, flip the bridge out of phase, or engage series mode for massive output. All in a solderless kit that makes upgrading a breeze.

With additional refinements from our classic hand-wired kit, including a proprietary Volume voicing circuit that maintains musical response as you roll back, the Classic Les Paul Jimmy Page Solderless Wiring Harness is the modern way to achieve some of the most iconic guitar sounds of all time – without ever picking up a soldering iron.

Includes the Switch wire assembly

How each control and the VVC works

Diagram of a device with labeled connection points and components.

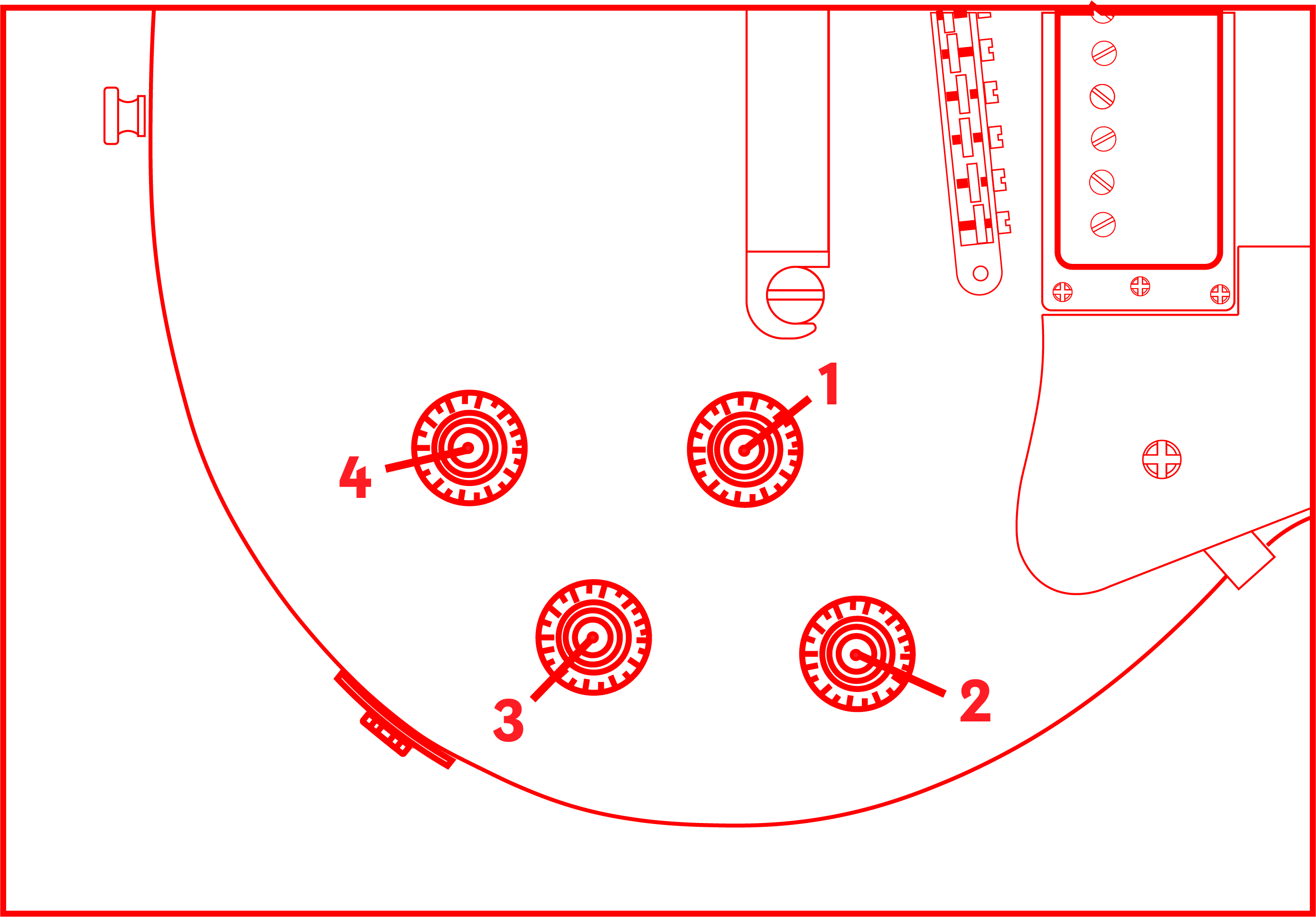

Control Layout

Name: Gunstreet Classic Les Paul Jimmy Page Solderless Wiring Harness
Brand: Gunstreet
SKU: GSWH-SL-LPSTND-JP-M
Price: 189.95 USD
Availability: InStock
Rating: 5.0 (2 reviews)

1.Neck Volume:Coil Cut
2.Bridge Volume: Coil Split
3.Bridge Tone: Phase Switch
4.Neck Tone: Series Switch

If you want a more detailed explanation of this circuit, click here

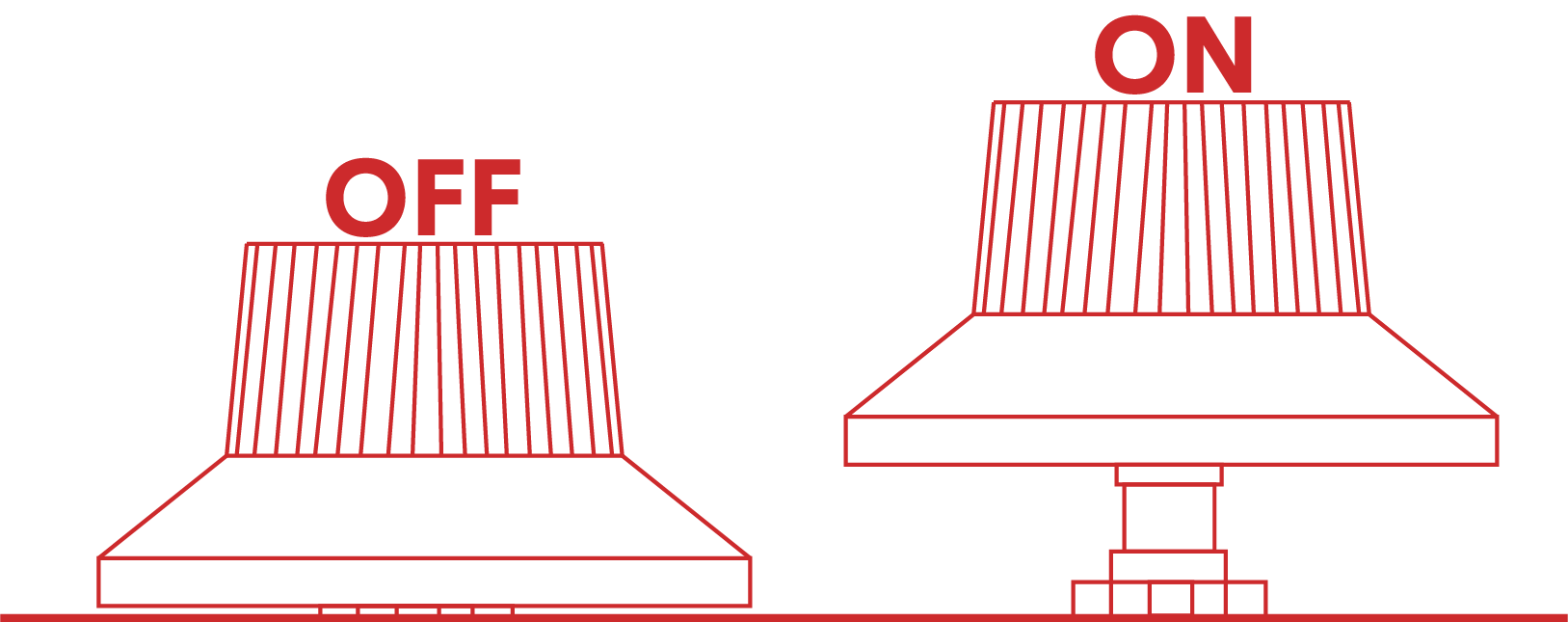

When the push-pull switches are in the down position, the circuit acts like traditional Les Paul wiring. The custom switching circuits only work when the switch is pulled up to the "on" position, giving you the traditional controls plus the custom switching circuit.

How our VVC Works

VVC (Volume Voicing Circuit)

Down: Saves more low end as you are using the Volume
UP: Saves more High end as you are using the Volume

Part Info

Custom "Metric" Gunstreet Push Pull Pots

- Taper style: Custom Audio
- Shaft Diameter: 7.85MM
- Shaft Length: 9.43mm
- Knob Pattern: 18 spline coarse Split shaft knurling
- Nut thread: M8
- Minimum Depth required:1.086”(27.59mm)

Bourns "Long Shaft" Push Pull Pots

- Taper style: Audio
- Shaft Diameter: 3/8” (9.52MM)
- Shaft Length: 3/4th "Long Shaft"(19.05MM )
- Knob Pattern: 18 spline coarse Split shaft knurling
- Nut thread: 3/8 x 32
- Minimum Depth required:1.086”(27.59mm)

Custom New Gunstreet Toggle Switch Specs

Our new switch offers better overall quality compared to Switchcraft while offering a quieter switching experience.

Body cavity depth 5/8" (15.87mm)
Mounting hole diameter 1/2" (12.70mm)
Thread height 7/32" (5.56mm)
Switch Tip Threading: M4
Cream switch tip included (add an order note to change the color)

Learn more about it and our new Gunstreet pots here

Capacitor

Brand: Vishay
Values: 0.047uf -/+10%

Neutrik Rean mono jack

Required mounting hole diameter: 3/8" (9.53mm)
Thread: 3/8 x 32
Thread height: 1/4" (6.35mm)

Requirements (must Read)

This kit Requires a 4 conductor Pickup Lead

VERY IMPORTANT: Gunstreet Pots require an 18-tooth "Coarse" knurled knob. If you are swapping from a CTS pot to a Gunstreet pot, new knobs will be required.
Proper installation of the correct knobs is crucial to prevent damage. Applying more than 30 lbs of upward or downward force can damage the potentiometer, or shaft. Remember, never forcefully pull a stuck knob; instead, "walk it off." Learn how to properly install knobs here.
If you are unsure which potentiometer to choose, please consider the following:
- Metric pots are best for import Les Paul models such as Epiphone or "Chibson," as well as flat-top Gibson models like the traditional Les Paul Special.
- Conversely,Long Shaft pots are ideal for traditional "curved-top" Gibsons where the wood is thicker. Please note that if you select Long Shaft pots, the pot mounting holes must be 3/8" in diameter.

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!

Instructions and More Specs

Instructions

Here are our online how-to guides, which cover the most common pickup Leads. Please contact us if you have any questions about our pickups.

How to install our Solderless Jimmy Page Kit

Dimensions

While our kits are designed to fit a wide variety of brands and models, they are not universally compatible. To ensure proper fit, please verify the dimensions or contact us for assistance.

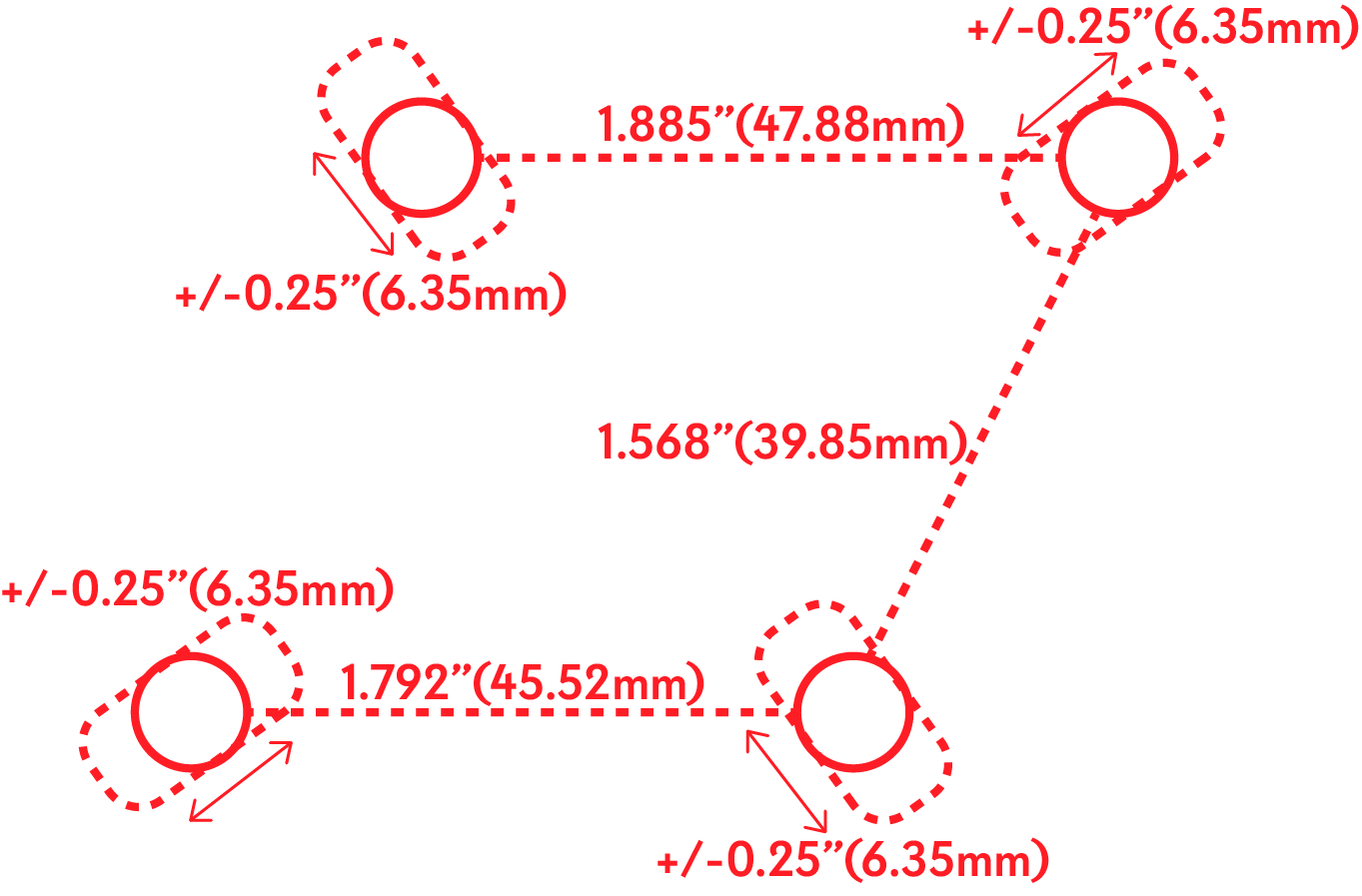

diagram of the safe zone on how much room you have to play

About our Solderless kits

At Gunstreet we believe the right circuit will unlock any guitar’s true potential. We also believe that nothing should stand in the way of achieving that potential.

Gunstreet Solderless Wiring Harnesses aren’t just wiring kits; they’re carefully crafted circuits designed to advance your instrument with the kind of tone and reliability you’d expect from a boutique builder. Each harness is a complete upgrade, made from high-spec components and designed to install easily—no soldering iron required.

Every harness we make is purpose-built for tonal clarity and playability, offering a straightforward path to professional-grade performance. Whether you’re a first-time tinkerer or a tone-chasing veteran, we’ve eliminated the frustrating barriers that come with guitar modding and taken care of all the details—clean layouts, bulletproof connections, and intuitive instructions that’ll allow you to take full control of your guitar’s voice.

We do the wiring. You do the playing. No shortcuts. No compromise. Just superior tone, simplified
