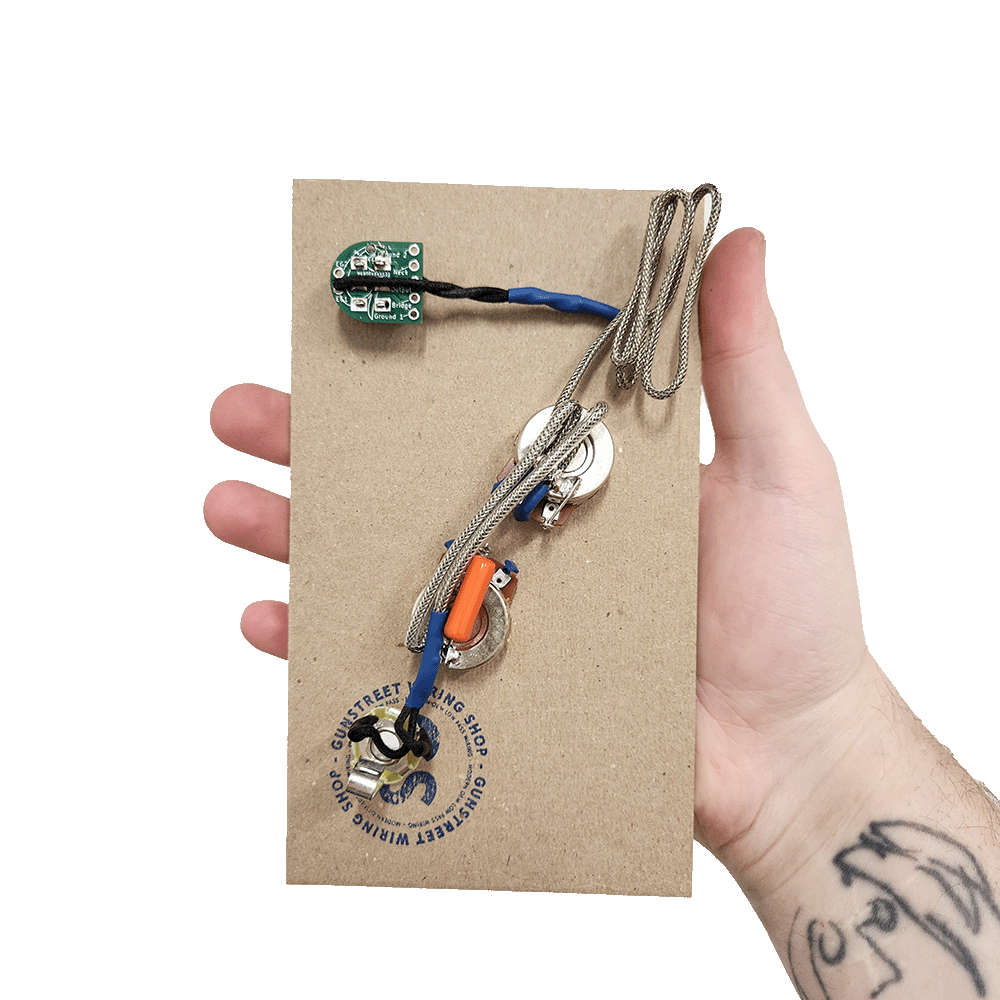

Gunstreet Mustang Player Wiring Harness

Sale price$89.95

Our kits are a perfect drop-in replacement for your Mustang style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

  1. Red 50’s Wiring (Vintage High Pass Filter) This wiring was found in the first gen of electric guitars. It features a transparent sound as you roll off the volume at the cost of a steep volume taper and an on/off tone control that interacts a lot with your volume position
  2. Blue Modern Wiring: (Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.
  3. Green Treble Bleed (Modern High pass Filter) Often called a “Volume bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.

Part info

New Gunstreet Toggle Switch Specs

Our new easy to install switch offers a better overall quality compared to Switchcraft. All while offering a quieter switching experience.

  • Body cavity depth 5/8" (15.87mm)

  • Mounting hole diameter 1/2" (12.70mm)

  • Thread height 7/32" (5.56mm)

  • Switch Tip Threading: 8-32

Learn more about it and our new Gunstreet pots here

new DHE “Gunstreet”  Pots

  • ·      Taper Style: Custom Audio
  • ·      Knob type = 18 spline coarse knurling
  • ·      Shaft diameter 0.235" (5.95mm)
  • ·      Thread type: 3/8"-32
  • ·      Threaded portion, 3/8" (9.52mm)
  • ·      Required mounting hole diameter 3/8" (9.52mm)

"Metric" Pot Specs

  • Shaft Style: Split, 18 tooth Coarse Knurling

  • Taper Style: Audio
  • Shaft Diameter: 6mm

  • Thread type:M8 x 0.75

Capacitor Specs

  • Brand: CDE

  • Model "Orange Drop"

  • Tolerance is -/+10%

Neutrik Output Jack Specs

  • Mounting hole diameter 3/8" (9.52mm)

  • Thread 3/8 x 32

  • Threaded portion height 1/4" (6.35mm

Pickup Style Values

  • Single Coil- Volume and Tone are 250k - Capacitor is .047uf

  • HS Combo- Volume is 500k and Tone is 250k - Capacitor is .022uf

  • Humbucker- Volume and Tone are 500k - Capacitor is .022ufus

Requirements

  • Installing the kit into a Bullet Mustang. Check your switch cavity depth as in some versions, the switch will be a tight fit.
  • Converting an Import or older MIJ guitar to US spec
    • US Spec pots will require you to have a US spec control plate as the pot holes have to be 3/8th. Double check your stock plate before replacing. Some guitars come stock with a US spec plate even though they have metric pots.
  • Choosing pot Versions will require an 18th tooth "Coarse" Knurled knob
  • If buying knobs for your kit double check you are purchasing the correct knob pattern as each style will only fit their designed pot.

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!
