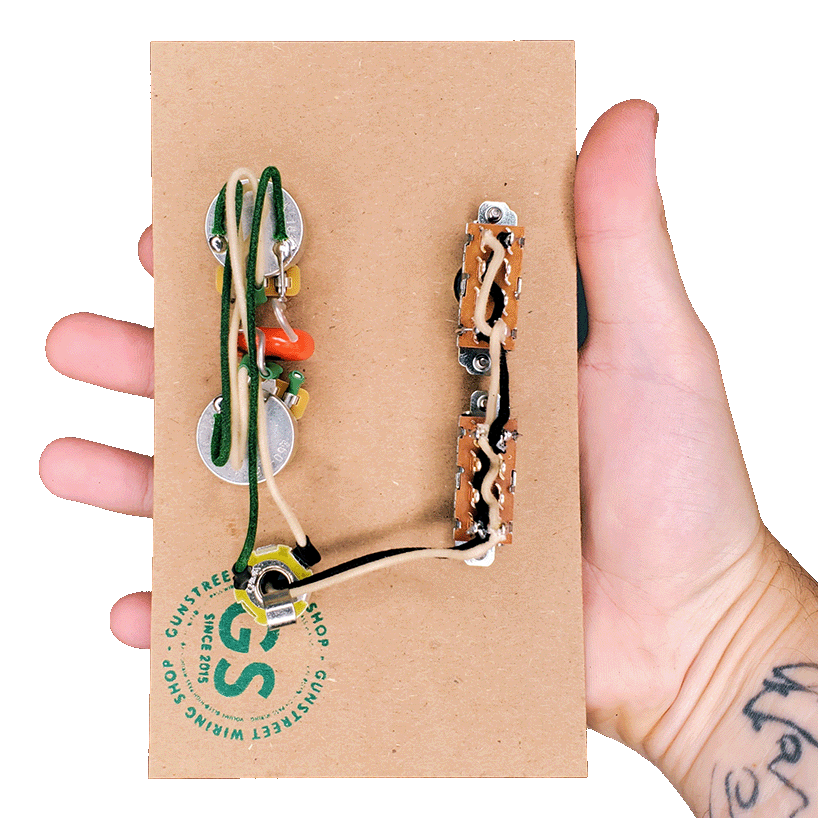

Gunstreet Mustang Wiring Harness

Sale price$99.95

Our kits are a perfect drop-in replacement for your Mustang style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

  1. Red 50’s Wiring (Vintage High Pass Filter) This wiring was found in the first gen of electric guitars. It features a transparent sound as you roll off the volume at the cost of a steep volume taper and an on/off tone control that interacts a lot with your volume position
  2. Blue Modern Wiring: (Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.
  3. Green Treble Bleed (Modern High pass Filter) Often called a “Volume bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.

part info

DHE Gunstreet Pots

  • Taper Style: Custom Audio Taper

  • Knob type: 1/4th Solid shaft (6.35mm)

  • Shaft diameter: 3/8" (9.52mm)

  • Thread type: 3/8"-32

  • Threaded portion: 3/8" (9.52mm)

  • Required mounting hole diameter: 3/8" (9.52mm)

Metric Control Pot Specs

  • Taper Style: Audio

  • Knob type = 18 tooth coarse knurling

  • Shaft diameter 6mm

  • Thread type: M8 x 0.75

  • Required mounting hole diameter 3/8" (9.52mm)

Switchcraft switch specs

  • Dimensions: ½”W x 1-3/4th” L x 11/16th”H (12.70mm W x 44.45mm L x 17.46mm H)

  • Body Cavity Minimum: 13/16” (20.64mm)

  • Mounting screw spacing: 1-13/32” (35.72mm)

  • Pickguard Switch hole requirement:5/16th” x 13/16th” (7.94mm x 20.64mm)


  • Brand: CDE “Orange Drop” Cap

  • Value: 0.047uf -/+10%

Output Jack

  • Brand: Rean

  • Diameter: 3/8th” (9.52mm)

  • Thread Length: 1/4th” (6.35mm)


  • Converting an Import or MIJ guitar to US spec
    • Bourns or CTS pots will require you to have a US spec control plate as the pot holes have to be 3/8th. Double check your stock plate before replacing. Some guitars come stock with a US spec plate even though they have metric pots.
    • If swapping to CTS you will need new "1/4th solid knobs" knobs, and 6mm knobs if you choose Bourns
  • if installing CTS in your Made in Mexico guitar, you will need new "1/4th" knobs as the stock 6mm knobs wont fit
  • Choosing Import Versions will require an 18th tooth "Coarse" Knurled knob
  • If buying knobs for your kit double check you are purchasing the correct knob pattern as each style will only fit their designed pot.

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!
