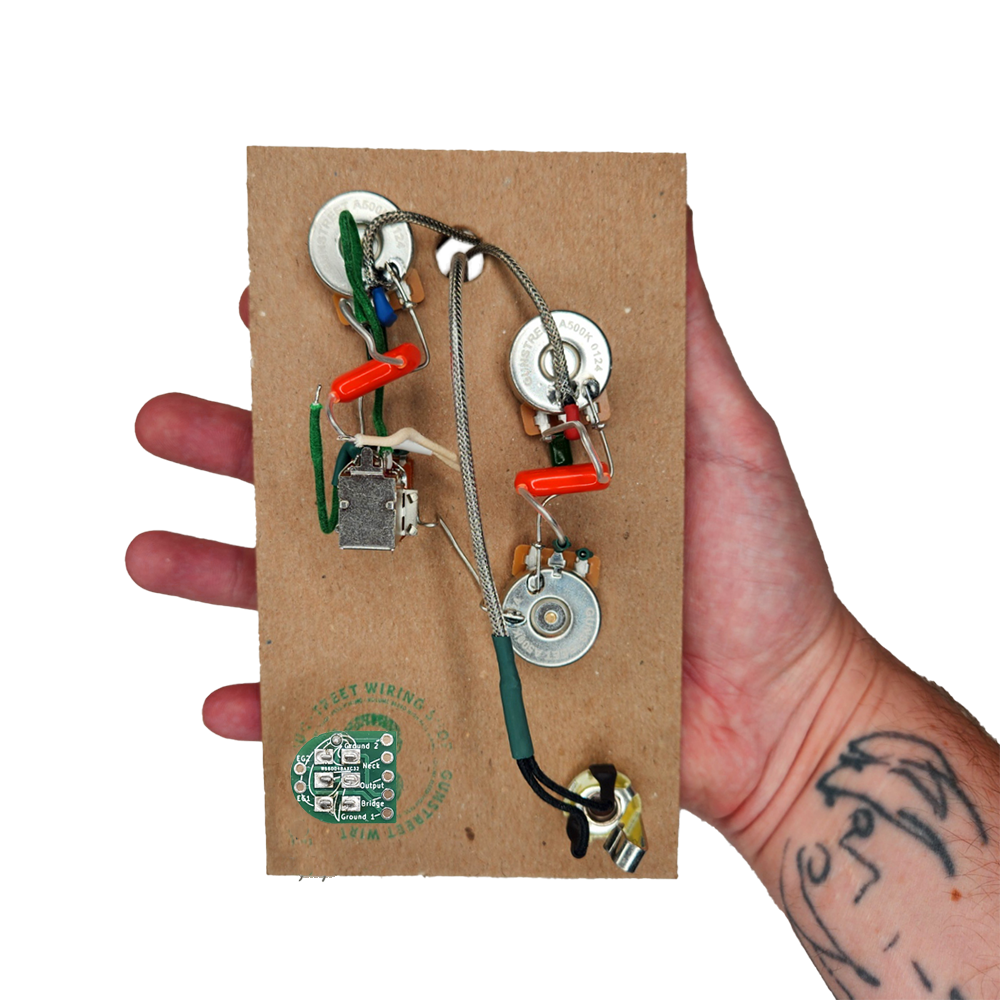

Gunstreet Les Paul Standard Wiring Harness - Out Of Phase

Sale price$124.95

Our kits are a perfect drop-in replacement for your Les Paul Standard style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

  1. Red 50’s Wiring (Vintage High Pass Filter) This wiring was found in the first gen of electric guitars. It features a transparent sound as you roll off the volume at the cost of a steep volume taper and an on/off tone control that interacts a lot with your volume position
  2. Blue Modern Wiring: (Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.
  3. Green Treble Bleed (Modern High pass Filter) Often called a “Volume bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.

Secondary Wiring: Out of Phase: When you engage the push pull switch and put the toggle switch in middle position, it flips the bridge pickup out of phase with the neck pickup creating a cool, aggressive tone. Perfect for those who want a classic rock sound, or like to play with a fuzzy distortion.

Part info

  1. Humbucker Values: Pots 500k, Cap 0.022uf
  2. P90: Values: Pots 500kVol 250kTone, Cap 0.022uf

Metric: New custom DHE Gunstreet Pots

  • Shaft Diameter: 6MM
  • Taper style: Custom Audio taper
  • Shaft Length: 9.52MM (3/8th)
  • Knob Pattern:18 tooth Coarse
  • Nut thread: M8 x 0.75

DHE Gunstreet Pots

    • Taper Style: Custom Audio Taper

    • Knob type: 18 spline Coarse knurling

    • Shaft diameter:

      • Short shaft: 3/8th (9.52MM )
      • Long shaft: 3/4th (19.05MM )
    • Thread type: 3/8"-32

    • Threaded portion: 3/8" (9.52mm)

    • Required mounting hole diameter: 3/8" (9.52mm)

Bourns Push Pull

    • Taper Style: Audio Taper

    • Knob type: 18 spline Coarse knurling

    • Shaft diameter:

      • Short shaft: 3/8th (9.52MM )
      • Long shaft: 3/4th (19.05MM )
    • Thread type: 3/8"-32

    • Threaded portion: 3/8" (9.52mm)

    • Required mounting hole diameter: 3/8" (9.52mm)

New Gunstreet Toggle Switch Specs

Our new easy to install switch offers a better overall quality compared to Switchcraft. All while offering a quieter switching experience.

  • Body cavity depth 5/8" (15.87mm)

  • Mounting hole diameter 1/2" (12.70mm)

  • Thread height 7/32" (5.56mm)

  • Switch Tip Theading: 8-32

Learn more about it and our new Gunstreet pots here

Neutrik Rean mono jack

  • Required mounting hole diameter: 3/8" (9.53mm)

  • Thread: 3/8 x 32Thread height: 1/4" (6.35mm)

Requirements (Must Read)

  • This Kit Requires that you have a Bridge pickup with a 2 (2 wires and a bare wire) or 4 conductor wire
  • Converting an Import guitar to US spec
    • US spec pots will require you to enlarge the stock pot holes to be 3/8th
    • When converting you will want to Choose "3/8th Short Shaft" for the correct thread length
    • If swapping to CTS you will need new "Fine Knurled" knobs
  • Most Gibson curved tops require a "3/4th Long Shaft"
  • Choosing 3/8th "Short Shaft" or Import Versions will require an 18th tooth "Coarse" Knurled knob
  • Choosing a CTS Version will require a 24 tooth "Fine" knurled knob

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!
