Gunstreet Les Paul Standard Wiring Harness - Hand wired - Jimmy Page

Sale price$259.95

Our kits are a perfect drop-in replacement for your Les Paul style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

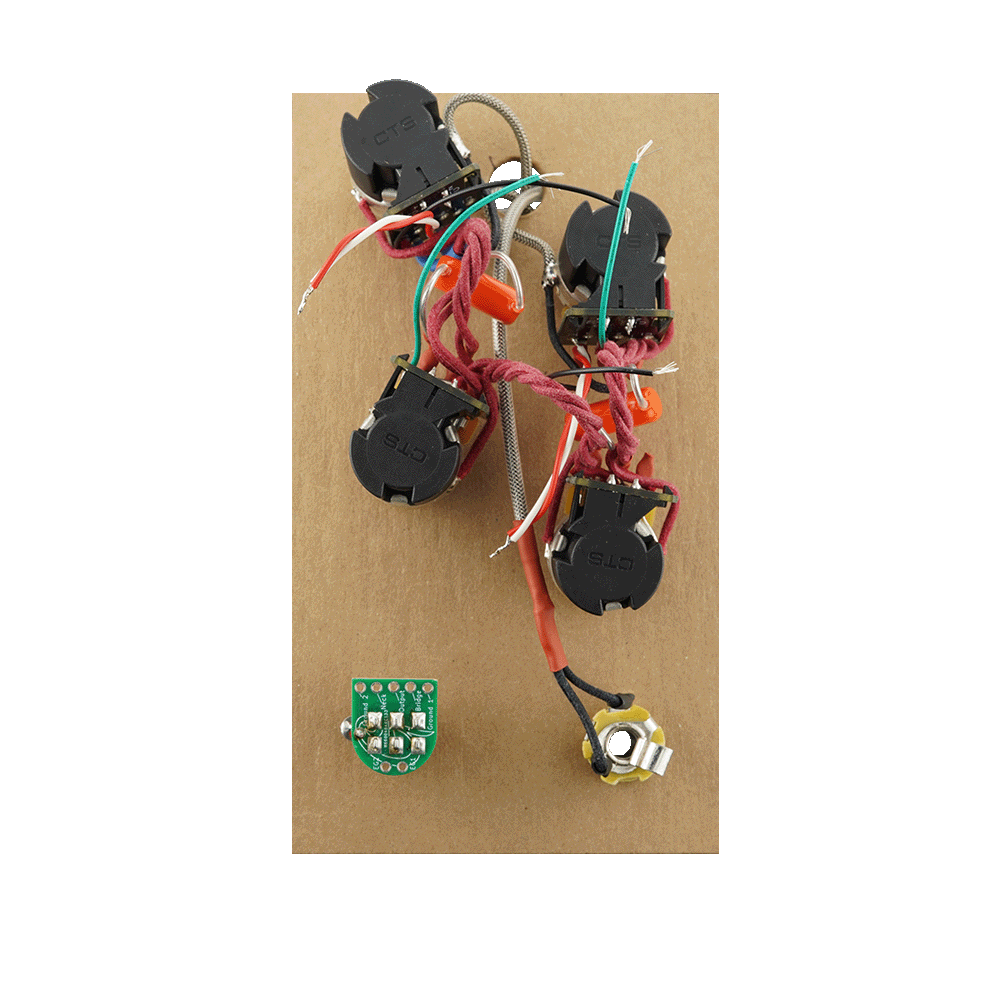

  1. Red Gibson-Based ‘50s Wiring (Vintage High Pass Filter) The steep dynamic tapers and idiosyncrasies of ‘50s wiring actually points to sophisticated interplay between volume and tone pots that gives you the ability to open up your guitar’s full frequency spectrum. Found in the first generation of Gibson’s most iconic models, this is a great circuit for players who want to explore their guitar’s pure voice.

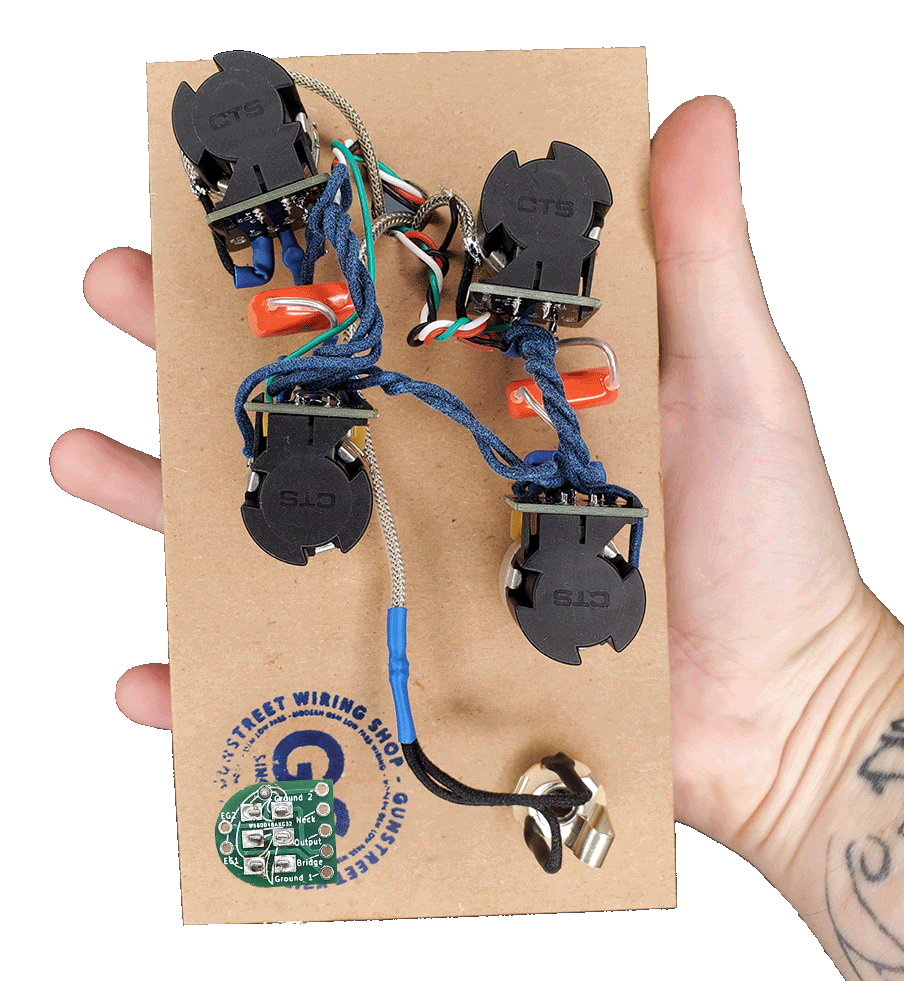

  2. Blue Modern Wiring (Low Pass Filter) The new gold standard for guitar circuits, modern wiring allows volume and tone to function more independently from one another. While rolling down volume will send some high frequencies to ground, adjustments to the tone pot will have no effect on dynamic output. A great circuit for players who want to explore the full range of their guitar’s tonal palette.

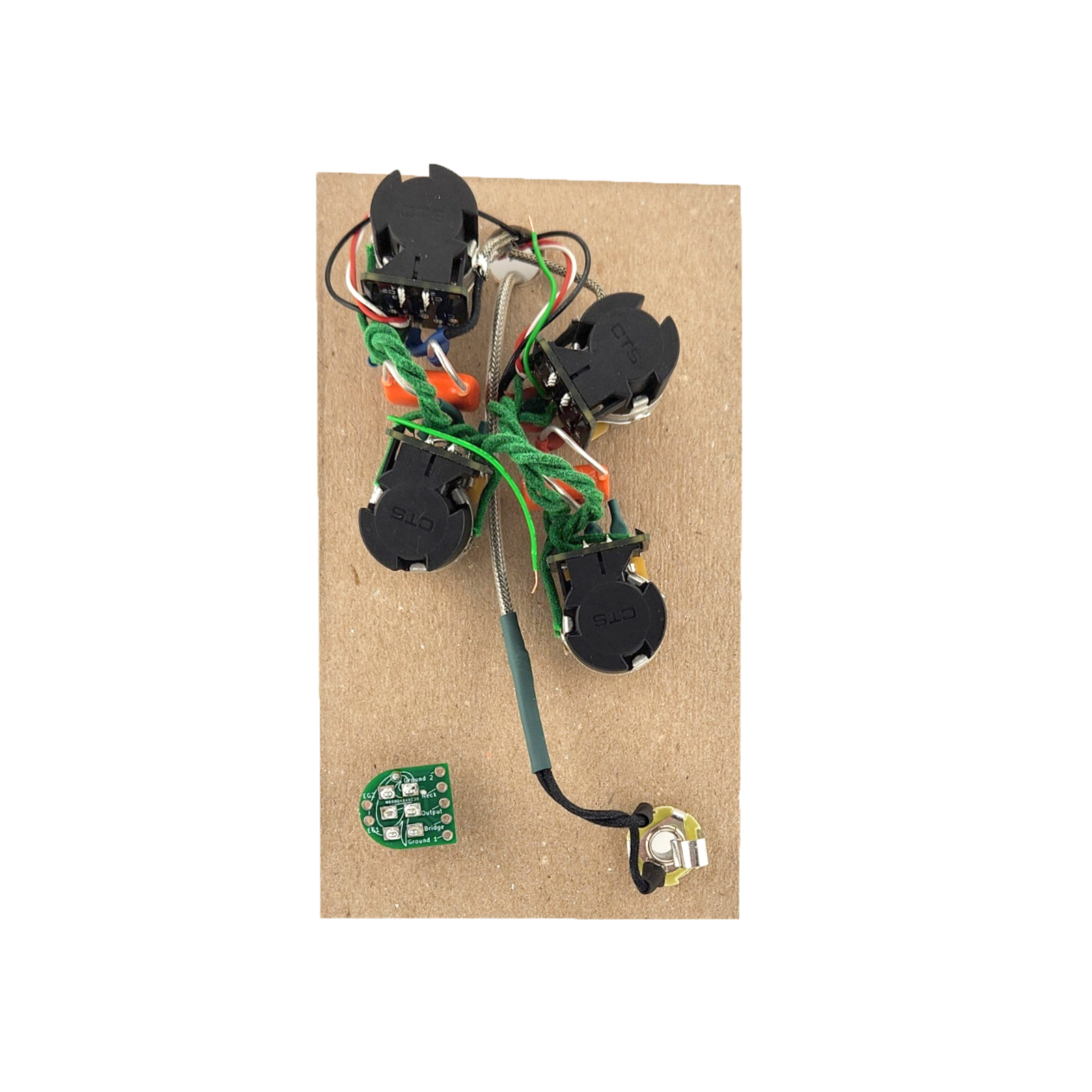

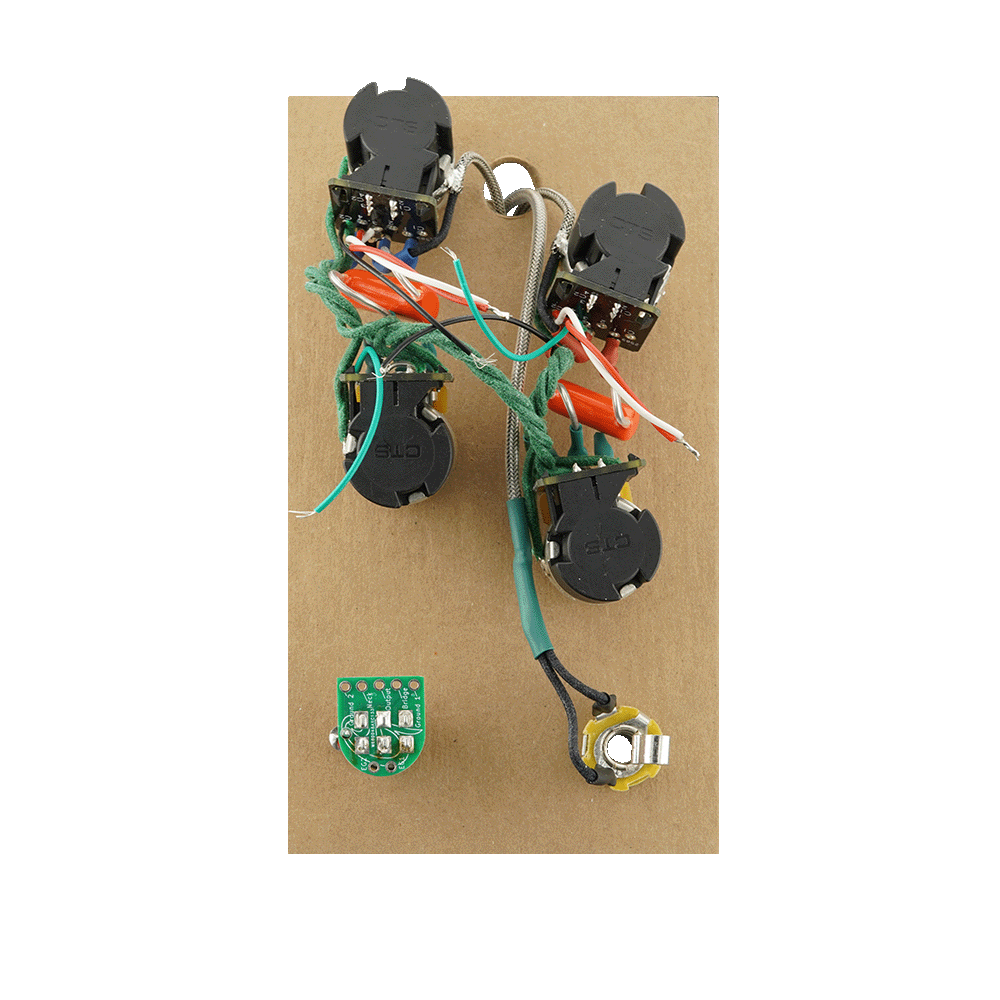

  3. Green Treble Bleed (Modern High Pass Filter) A treble bleed circuit incorporates an additional “bright” capacitor that maintains high-end as volume is decreased. A great circuit for guitarists who want to use their volume pot to roll off gain without losing any of their pickups’ sparkle or bite.



Jimmy Page wiring:With coil cutting assigned to the volume pots and phase and series switching controlled by the tone pots, this kit will instantly turn any humbucker-loaded guitar into a dragon-suit worthy, full spectrum rock machine.

Part Info

Custom Gunstreet Metric Push Pull

  • Taper style: Custom Audio

  • Shaft Diameter: 8MM

  • Shaft Length: 9.52MM (3/8th)

  • Knob Pattern: 18 tooth Coarse knurled

  • Nut thread: M8 x 0.75

CTS 450G Series Push Pull

  • Taper style: Audio

  • Value: 500k

  • Shaft Diameter: 3/8” (9.52MM)

  • Shaft Length:

  • Short shaft: 3/8th (9.52MM )

  • Long shaft: 3/4th (19.05MM )

  • Knob Pattern: 24 tooth Fine knurled

  • Nut thread: 3/8 x 32

Custom New Gunstreet Toggle Switch Specs

Our new easy to install switch offers a better overall quality compared to Switchcraft. All while offering a quieter switching experience.

  • Body cavity depth 5/8" (15.87mm)

  • Mounting hole diameter 1/2" (12.70mm)

  • Thread height 7/32" (5.56mm)

  • Switch Tip Threading: M4

Learn more about it and our new Gunstreet pots here

CDE “Orange Drop” Capacitor

  • Value: 0.047UF

  • Tolerance:+/- 10%

  • Voltage (Size): 400v

Neutrik Rean mono jack

  • Required mounting hole diameter: 3/8" (9.53mm)

  • Thread: 3/8 x 32Thread height:1/4" (6.35mm)

Requirements (Must Read)

  •
    • This requires 4 conductor pickups

    Icons representing wireless technology, including a tower, guitar amp and pedal, and smartphone.

    • Due to its design and interaction with your pickups' mechanics, this circuit is highly susceptible to external feedback, occasionally leading to an "audible ground path," also known as a "ghost pickup sound." While it won't resolve all issues in every setup, we recommend installing this kit in a properly shielded cavity. This will help mitigate problems caused by factors such as amplifiers, pedals, power supplies, and even your home's wiring.

    • Converting an Import guitar to US spec
      • US spec pots will require you to enlarge the stock pot holes to be 3/8th
      • When converting you will want to Choose "3/8th Short Shaft" for the correct thread length
    •

    • VERY IMPORTANT: These Metric Pots require an 18-tooth "Coarse" knurled knob, and the CTS pots use a 24 tooth "Fine" knurled. If you are swapping from a Metric pot to a CTS pot, new knobs will be required.
    • Proper installation of the correct knobs is crucial to prevent damage. Applying more than 30 lbs of upward or downward force can damage the potentiometer, or shaft. Remember, never forcefully pull a stuck knob; instead, "walk it off."
    • Most Gibson curved tops require a "3/4th Long Shaft"

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!
