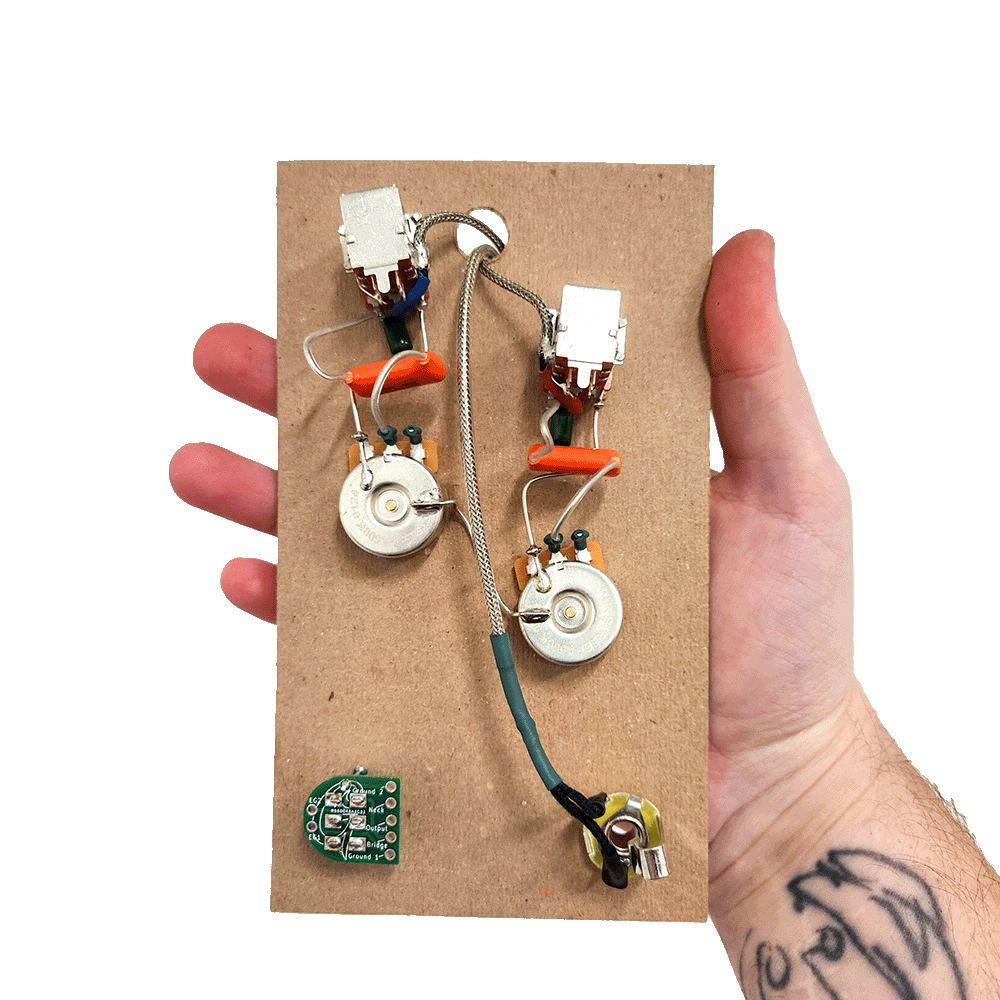

Gunstreet Les Paul Standard Wiring Harness - Coil Cutting

Sale price$129.95

Our kits are a perfect drop-in replacement for your Les Paul style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

  1. Red Gibson-Based ‘50s Wiring (Vintage High Pass Filter) The steep dynamic tapers and idiosyncrasies of ‘50s wiring actually points to sophisticated interplay between volume and tone pots that gives you the ability to open up your guitar’s full frequency spectrum. Found in the first generation of Gibson’s most iconic models, this is a great circuit for players who want to explore their guitar’s pure voice.

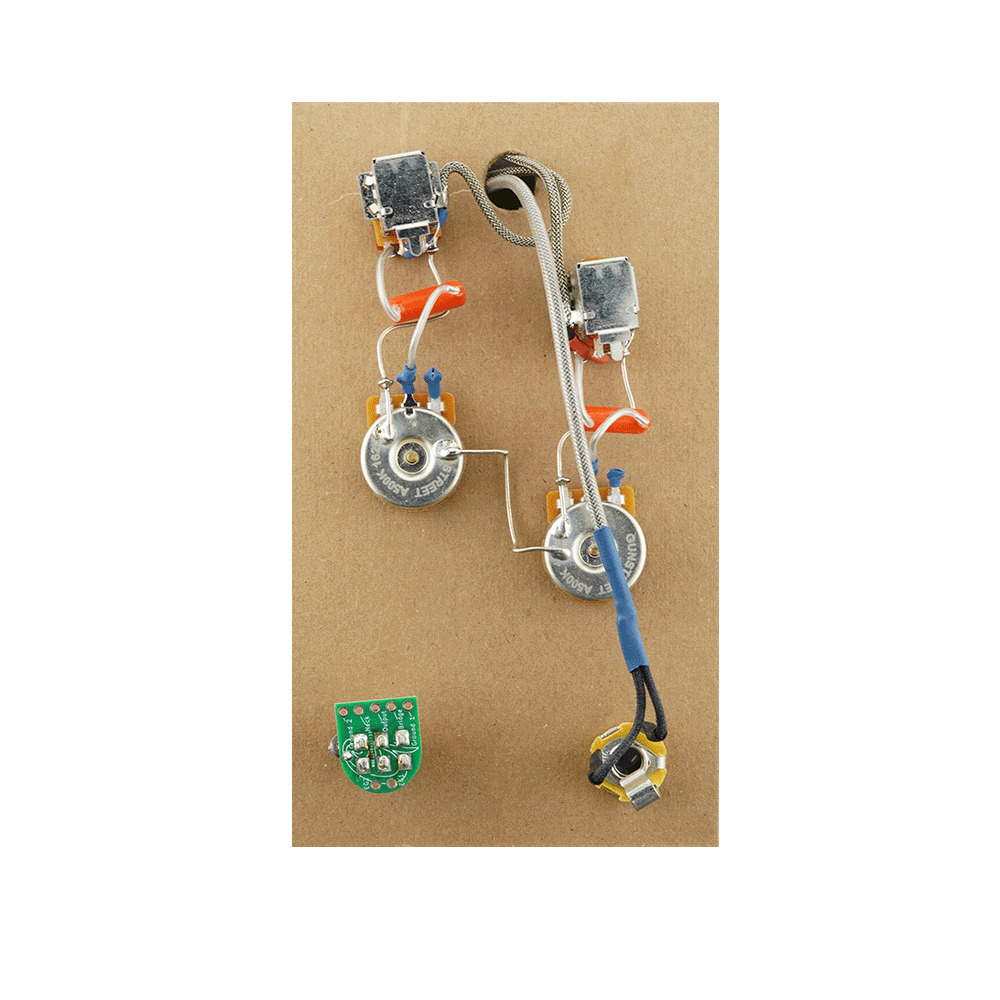

  2. Blue Modern Wiring (Low Pass Filter) The new gold standard for guitar circuits, modern wiring allows volume and tone to function more independently from one another. While rolling down volume will send some high frequencies to ground, adjustments to the tone pot will have no effect on dynamic output. A great circuit for players who want to explore the full range of their guitar’s tonal palette.

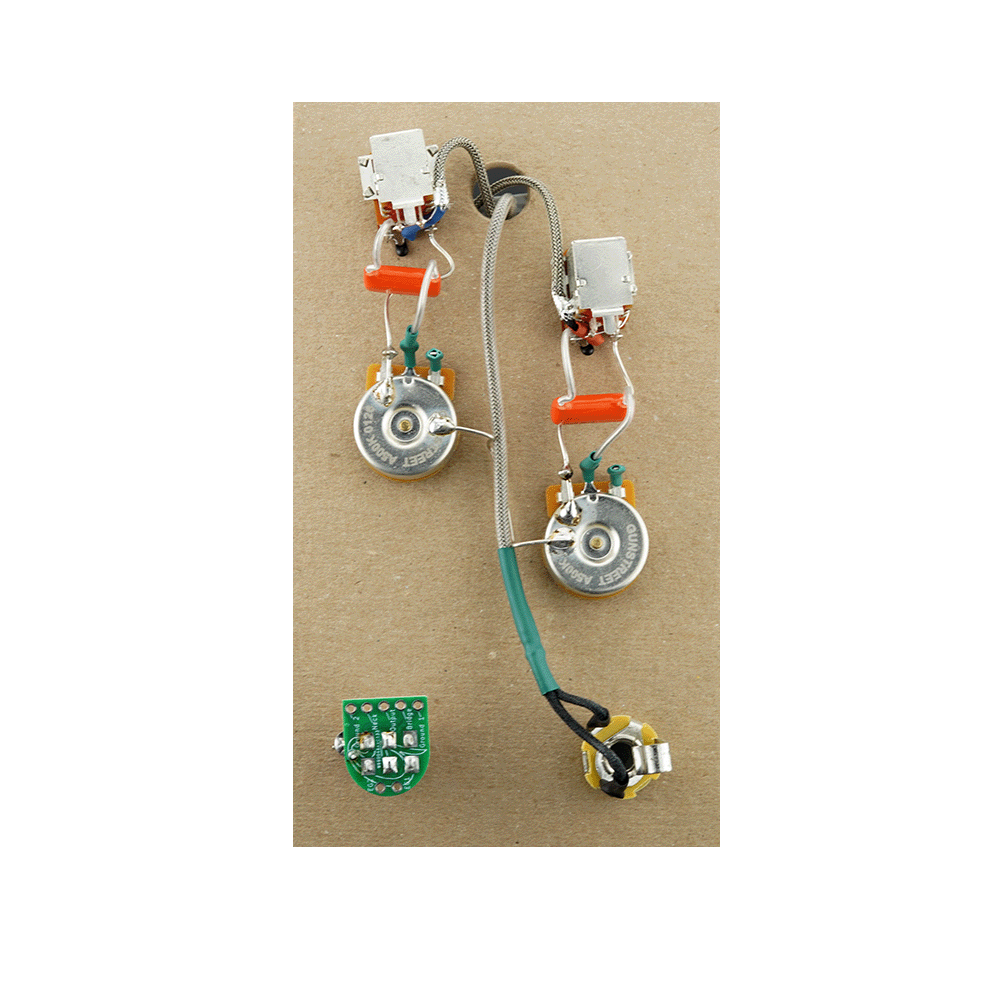

  3. Green Treble Bleed (Modern High Pass Filter) A treble bleed circuit incorporates an additional “bright” capacitor that maintains high-end as volume is decreased. A great circuit for guitarists who want to use their volume pot to roll off gain without losing any of their pickups’ sparkle or bite.

Secondary Wiring: Coil Cutting Commonly known as “splitting,” isolating one half of a humbucker from the rest of the circuit essentially creates a single-coil pickup capable of producing those familiar clean, bright, chimey single-coil sounds. A simple switch that unlocks a ridiculous amount of versatility.

Part Info

Humbucker Values: Pots 500k, Cap 0.022uf

Metric: New custom DHE Gunstreet Pots

  • Shaft Diameter: 6MM
  • Taper style: Custom Audio taper
  • Shaft Length: 9.52MM (3/8th)
  • Knob Pattern:18 tooth Coarse
  • Nut thread: M8 x 0.75



Our New DHE Gunstreet Pots

    • Taper Style: Custom Audio Taper

    • Knob type: 18 spline Coarse knurling

    • Shaft diameter:

    • Short Shaft: 3/8" (9.52mm)

    • Long Shaft: 3/4th" (19.05mm)
    • Thread type: 3/8"-32

    • Threaded portion: 3/8" (9.52mm)

    • Required mounting hole diameter: 3/8" (9.52mm)

    • Value: 500k +/-20%
  • New Gunstreet Toggle Switch Specs

    Our new easy to install switch offers a better overall quality compared to Switchcraft. All while offering a quieter switching experience.

    • Body cavity depth 5/8" (15.87mm)

    • Mounting hole diameter 1/2" (12.70mm)

    • Thread height 7/32" (5.56mm)

    • Switch Tip Threading: 8-32

    Learn more about it and our new Gunstreet pots here

Neutrik Rean mono jack

    • Required mounting hole diameter: 3/8" (9.53mm)
    • Thread: 3/8 x 32Thread height: 3/8" (9.53mm)

Requirements (Must Read)

  • This Kit Requires that you have 4 conductor pickup wires
  • Converting an Import guitar to US spec
    • US spec pots will require you to enlarge the stock pot holes to be 3/8th
    • When converting you will want to Choose "3/8th Short Shaft" for the correct thread length
    • If swapping from CTS you will need new "Coarse Knurled" knobs
  • Most Gibson curved tops require a "3/4th Long Shaft"

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!
