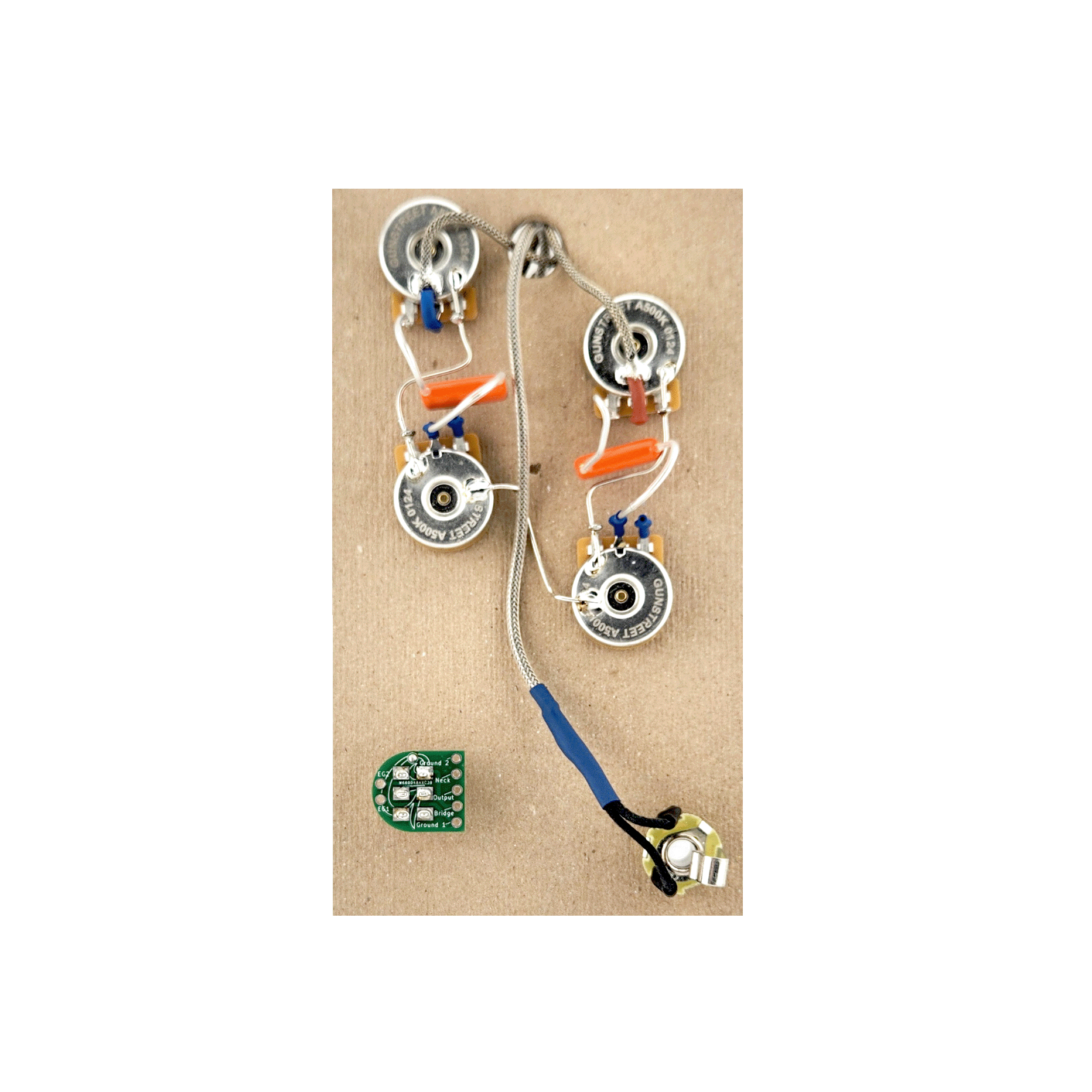

Gunstreet Les Paul Standard Wiring Harness - Classic

Sale price$124.95

Our kits are a perfect drop-in replacement for your Les Paul style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

  1. Red Gibson-Based ‘50s Wiring (Vintage High Pass Filter) The steep dynamic tapers and idiosyncrasies of ‘50s wiring actually points to sophisticated interplay between volume and tone pots that gives you the ability to open up your guitar’s full frequency spectrum. Found in the first generation of Gibson’s most iconic models, this is a great circuit for players who want to explore their guitar’s pure voice.
  2. Blue Modern Wiring (Low Pass Filter) The new gold standard for guitar circuits, modern wiring allows volume and tone to function more independently from one another. While rolling down volume will send some high frequencies to ground, adjustments to the tone pot will have no effect on dynamic output. A great circuit for players who want to explore the full range of their guitar’s tonal palette.
  3. Green Treble Bleed (Modern High Pass Filter) A treble bleed circuit incorporates an additional “bright” capacitor that maintains high-end as volume is decreased. A great circuit for guitarists who want to use their volume pot to roll off gain without losing any of their pickups’ sparkle or bite.



Part info

Value Sets per Pickup Style

  1. Humbucker Values: Pots 500k, Cap 0.022uf
  2. P90: Values: Pots 500kVol 250kTone, Cap 0.022uf

We only use our own Custom Gunstreet pots on this kit. Learn more about them here

US Spec

    • Taper style: Custom Audio
    • Shaft Diameter: 3/8” (9.52MM)
    • Shaft Length:
      • Short shaft: 3/8th (9.52MM )
      • Long shaft: 3/4th (19.05MM )
    • Knob Pattern: 18 spline coarse knurling
    • Nut thread: 3/8 x 32

Metric:

  • Shaft Diameter: 8MM
  • Taper style: Custom Audio taper
  • Shaft Length: 9.52MM (3/8th)
  • Knob Pattern:18 tooth Coarse
  • Nut thread: M8 x 0.75

New Gunstreet Toggle Switch Specs

Our new easy to install switch offers a better overall quality compared to Switchcraft. All while offering a quieter switching experience.

  • Body cavity depth 5/8" (15.87mm)

  • Mounting hole diameter 1/2" (12.70mm)

  • Thread height 7/32" (5.56mm)

  • Switch Tip Threading: M4

Learn more about it and our new Gunstreet pots here

Capacitor

  • Brand: CDE "Orange Drop"
  • Values: 0.022uf -/+10%

Neutrik Rean mono jack



  • Required mounting hole diameter: 3/8" (9.53mm)
  • Thread: 3/8 x 32Thread height: 1/4" (6.35mm)

Requirements (Must Read)

    • Converting an Import guitar to US spec
      • US spec pots will require you to enlarge the stock pot holes to be 3/8th
    • VERY IMPORTANT: These Pots require an 18-tooth "Coarse" knurled knob. If you are swapping from a CTS pot to a Gunstreet pot, new knobs will be required.
    • Proper installation of the correct knobs is crucial to prevent damage. Applying more than 30 lbs of upward or downward force can damage the potentiometer, or shaft. Remember, never forcefully pull a stuck knob; instead, "walk it off."
  • Most Gibson Players
    • Curved tops require a "3/4th Long Shaft"
    • Flat tops like a LP Special require"3/8th Short Shaft"

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!
