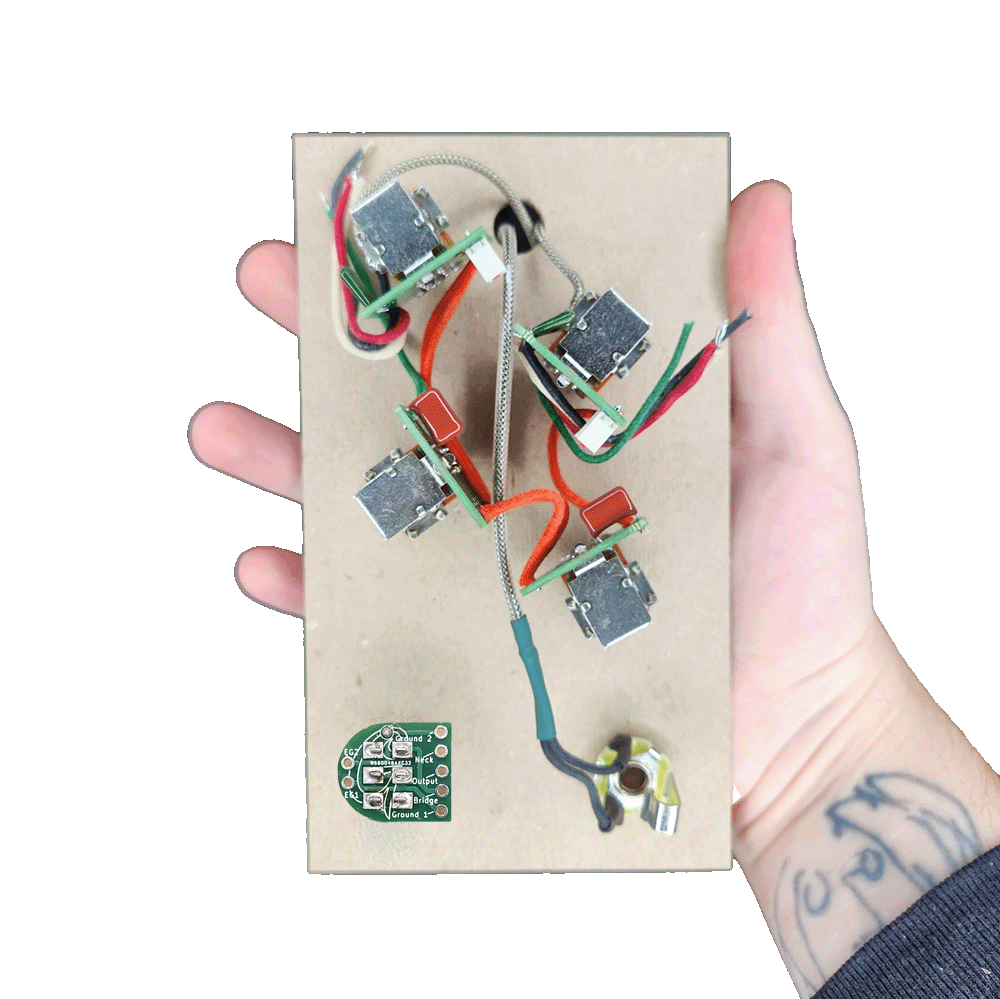

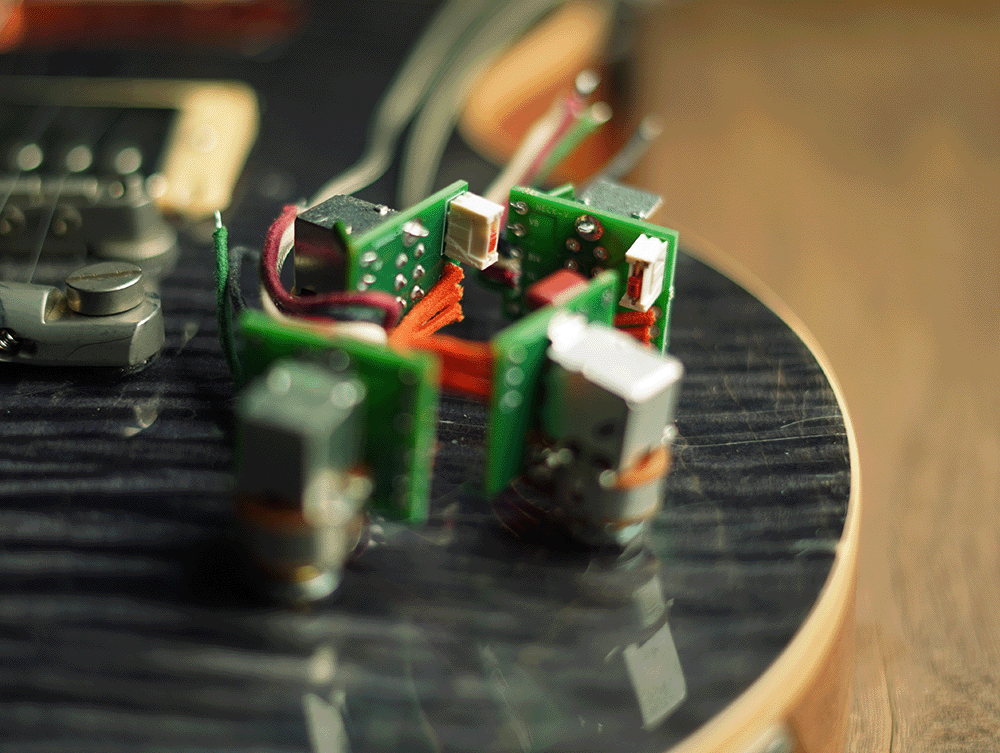

Gunstreet Les Paul Standard Wiring Harness - Custom Jimmy Page

Sale price$199.95

We started from scratch on this one. We took our two top sellers of this circuit and combined them. Now get the amazing functionality of the Jimmy Page circuit but control whether your Neck or Bridge pickups have a high or low voicing when using the controls!

Not familiar with the Jimmy Page wiring? Heres how it works. This kit features Coil Cutting in the Volumes, Out of phase in the Bridge tone and a Series switch in the Neck tone. Giving you a crazy number of options. This set up is great if you like a lot of flexibility in your sound, or love pushing distortion!

Part Info

Metric Push pull

  • Taper style: Audio

  • Shaft Diameter: 6MM

  • Shaft Length: 9.52MM (3/8th)

  • Knob Pattern: Coarse

  • Nut thread: M8 x 0.75

Bourns Push pull

  • Taper style: Audio

  • Value: 500k

  • Shaft Diameter: 3/8” (9.52MM)

  • Shaft Length:

  • Short shaft: 3/8th (9.52MM )

  • Long shaft: 3/4th (19.05MM )

  • Knob Pattern: 18 Tooth Coarse

  • Nut thread: 3/8 x 32

New Gunstreet Toggle Switch Specs

Our new easy to install switch offers a better overall quality compared to Switchcraft. All while offering a quieter switching experience.

  • Body cavity depth 5/8" (15.87mm)

  • Mounting hole diameter 1/2" (12.70mm)

  • Thread height 7/32" (5.56mm)

  • Switch Tip Theading: 8-32

Learn more about it and our new Gunstreet pots here

CDE “Orange Drop” Capacitor

  • Value: 0.047UF

  • Tolerance:+/- 10%

  • Voltage (Size): 400v

Neutrik Rean mono jack

  • Required mounting hole diameter: 3/8" (9.53mm)

  • Thread: 3/8 x 32Thread height:1/4" (6.35mm)

Requirements (Must Read)

  • This requires 4 conductor pickups
  • Because of how this circuit is designed and how it’s playing with the mechanics of your pickups, this circuit is very prone to outside feedback and in rare cases causes an “audible ground path aka a ghost pickup sound” Although this wont fix everything in some rigs we suggest installing this kit in a properly shielded cavity to help limit the effects or issues stemming from things like amps, pedals, power supplies, and even your houses wiring!
  • Converting an Import guitar to US spec
    • US spec pots will require you to enlarge the stock pot holes to be 3/8th
    • When converting you will want to Choose "3/8th Short Shaft" for the correct thread length
    • If swapping from CTS you will need new "Coarse Knurled" knobs
  • Most Gibson curved tops require a "3/4th Long Shaft"
  • Choosing Bourns or Import Versions will require an 18th tooth "Coarse" Knurled knob

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!
