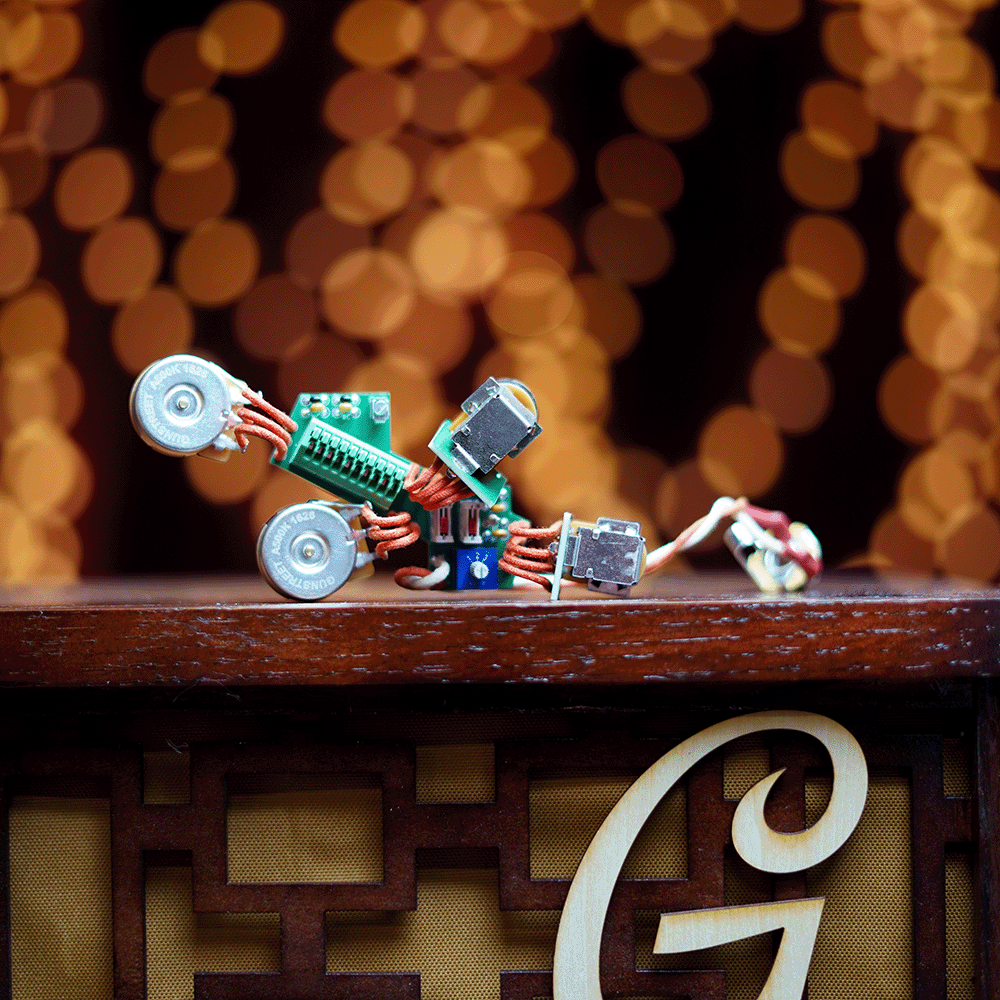

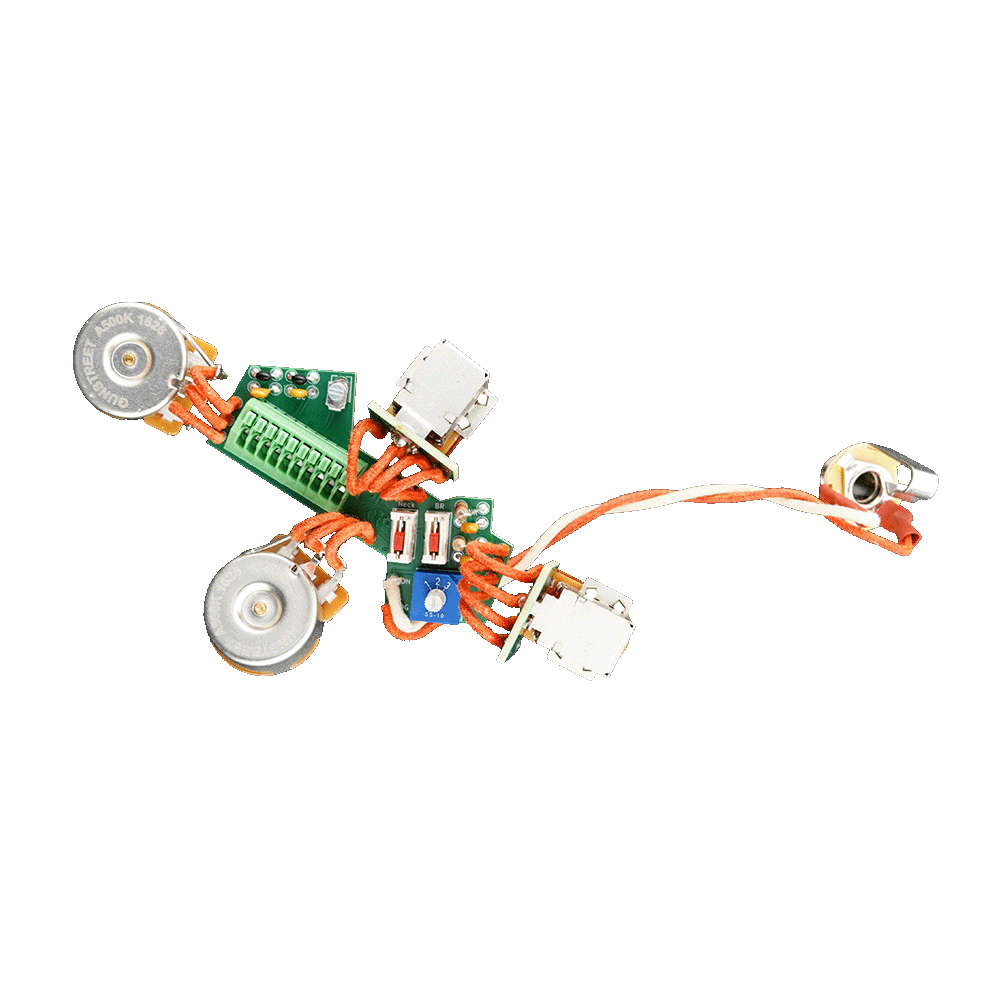

Gunstreet Classic PRS "SC" Single Cut Coil tapping Solderless Wiring Harness

VVC (Volume Voicing Circuit)

• Down: Saves more Low end as you are rolling off the Volume
• UP: Saves more High end as you are rolling off the Volume

Here are the three pickup switch positions and their corresponding sound profiles:

1. OEM Tap: PRS designed their tap to be used with most of their pickups. It provides a great sparkly, vintage twang to the pickups, giving you that classic single-coil sound.
2. P90: Experience the grit, dynamic midrange, and multifaceted nature of a P90
3. Classic Cut: Split your humbucker to unlock all the cut and presence you’d expect from a “true” single coil.

New Universal DHE “Gunstreet” Pots

• • Taper style: Custom Audio
  • Shaft Diameter: 0.3110" (7.90MM)
  • Shaft Length: 0.37" (9.39MM)
  • Knob Pattern: 18 spline coarse Split shaft knurling
  • Nut thread: M8

New Gunstreet Toggle Switch Specs

Our new switch offers better overall quality compared to Switchcraft while offering a quieter switching experience.

• Body cavity depth 5/8" (15.87mm)

• Mounting hole diameter 1/2" (12.70mm)

• Thread height 7/32" (5.56mm)

• Switch Tip Threading: M4

Learn more about it and our new Gunstreet pots here

Capacitor

• Brand: Vishay
• Values: 0.022uf -/+10%

Neutrik Rean mono jack

• Required mounting hole diameter: 3/8" (9.53mm)

• Thread: 3/8 x 32

• Thread height: 1/4" (6.35mm)

• This kit Requires a 4 conductor Pickup Lead
• This kit is designed for output jack cavities where you can pass the jack through from the inside.

• VERY IMPORTANT: Gunstreet Pots require an 18-tooth "Coarse" knurled knob. If you are swapping from a CTS pot to a Gunstreet pot, new knobs will be required. Proper installation of the correct knobs is crucial to prevent damage. Learn more here: Knob The Number One Killer of Guitar Pots (And How to Stop It!)

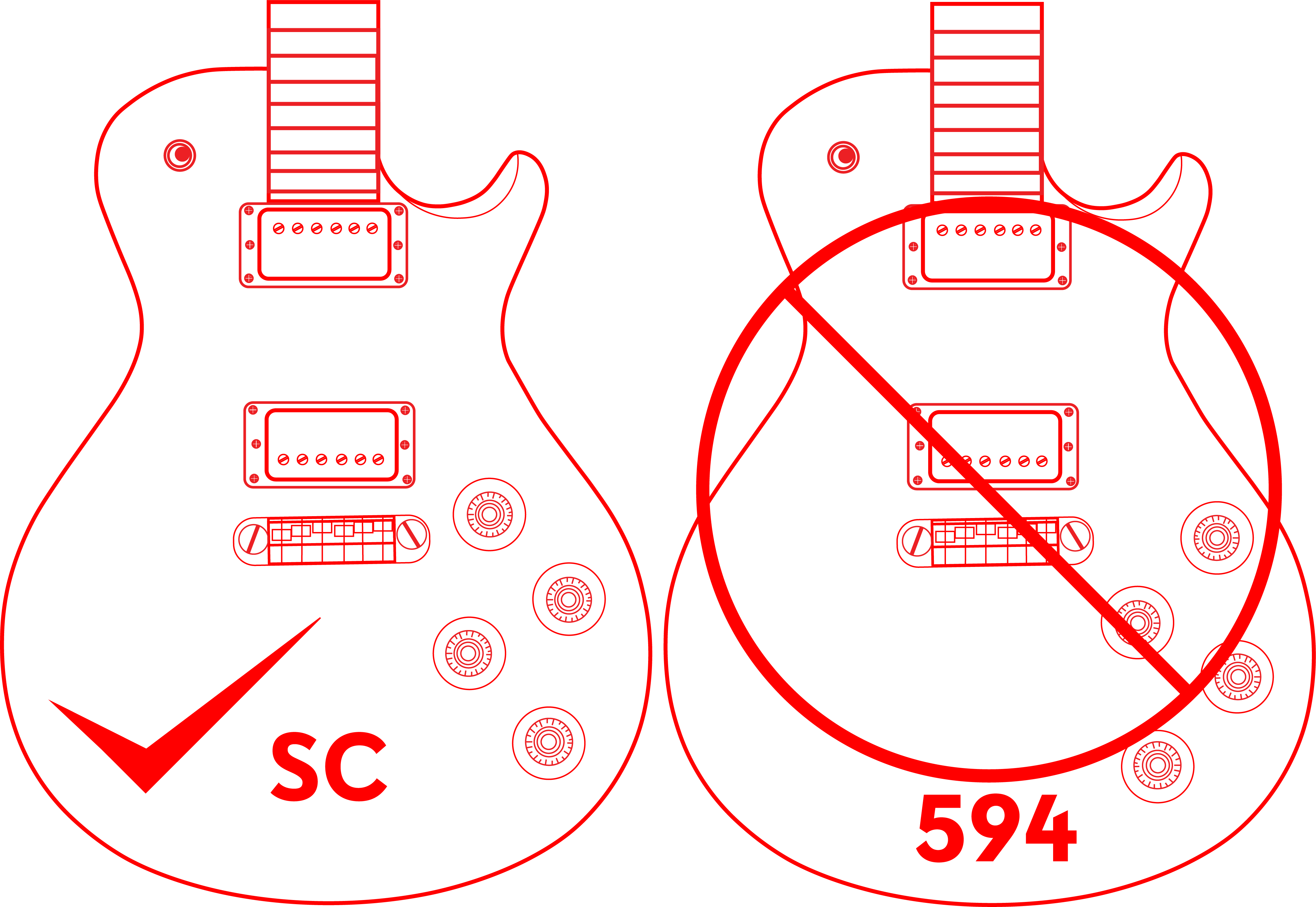

• This kit was designed to fit both US and Import tops.

Every kit includes printed instructions.

Online step-by-step instructions are coming soon.

While our kits are designed to fit a wide variety of brands and models, they are not universally compatible. To ensure proper fit, please verify the dimensions or contact us for assistance.

At Gunstreet we believe the right circuit will unlock any guitar’s true potential. We also believe that nothing should stand in the way of achieving that potential.

Gunstreet Solderless Wiring Harnesses aren’t just wiring kits; they’re carefully crafted circuits designed to advance your instrument with the kind of tone and reliability you’d expect from a boutique builder. Each harness is a complete upgrade, made from high-spec components and designed to install easily—no soldering iron required.

Every harness we make is purpose-built for tonal clarity and playability, offering a straightforward path to professional-grade performance. Whether you’re a first-time tinkerer or a tone-chasing veteran, we’ve eliminated the frustrating barriers that come with guitar modding and taken care of all the details—clean layouts, bulletproof connections, and intuitive instructions that’ll allow you to take full control of your guitar’s voice.

We do the wiring. You do the playing. No shortcuts. No compromise. Just superior tone, simplified
