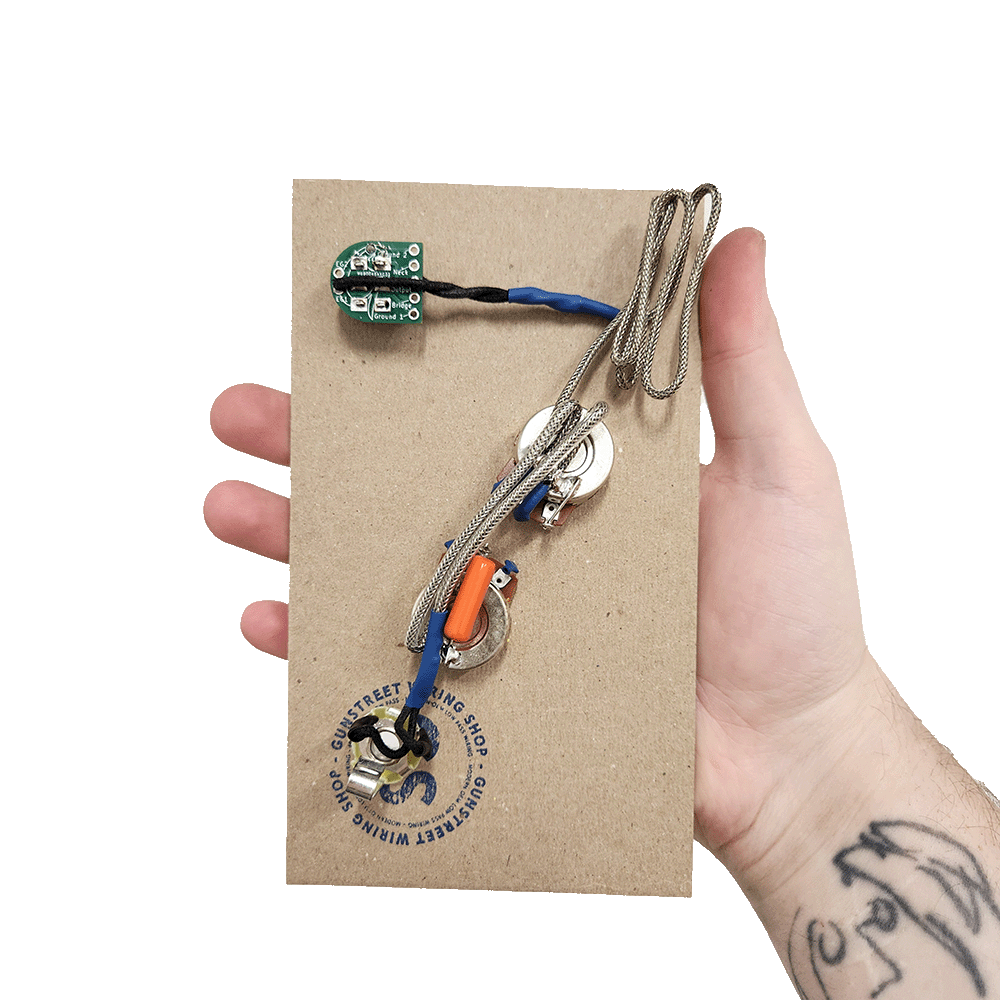

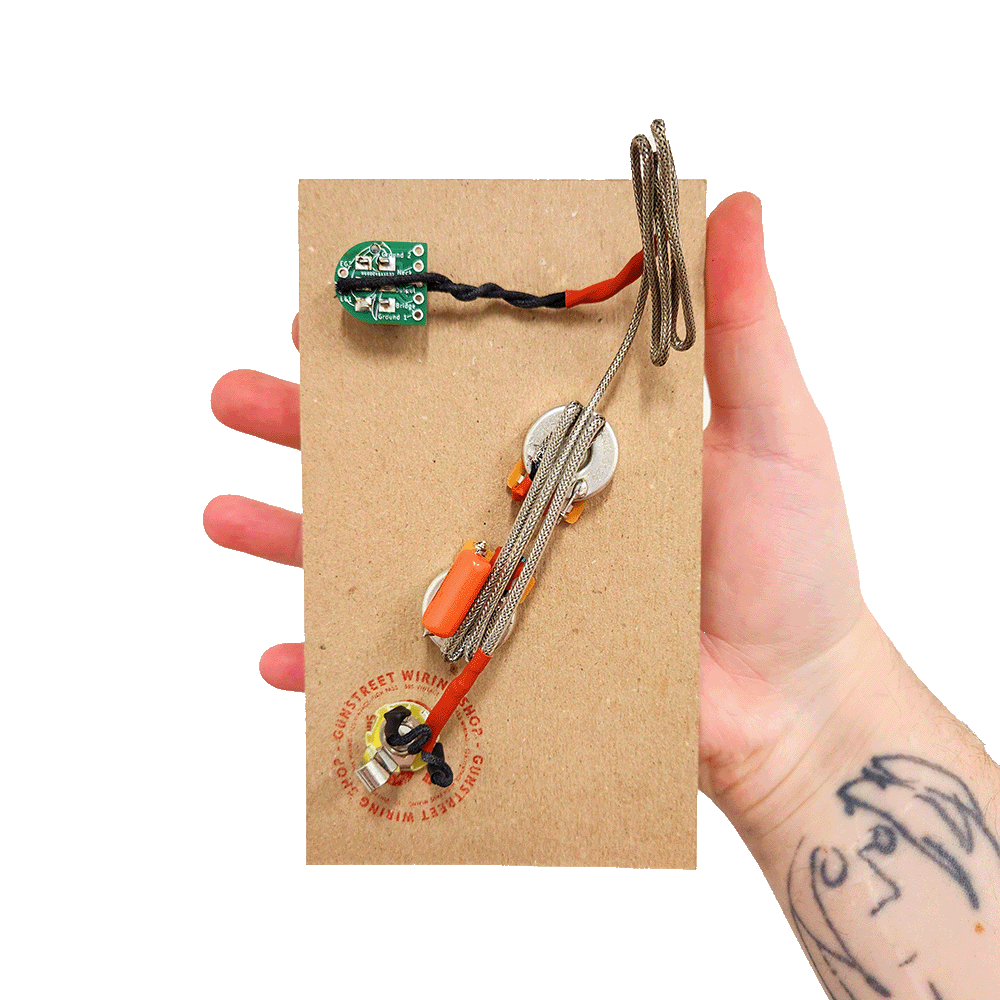

Gunstreet Super Sonic Wiring Harness Master Volume Master Tone

Sale price$79.95

Switchcraft Toggle Switch Specs

  • Body cavity depth 7/8th (22.23mm)

  • Mounting hole diameter 1/2" (12.70mm)

  • Thread height 11/32" (8.74mm)

Metric Control Pot Specs

  • Resistance 500K-ohm

  • Taper Style: Audio

  • Knob type = coarse knurling

  • Shaft diameter 6mm

  • Thread type: M8 x 0.75

  • Required mounting hole diameter 3/8" (9.52mm)

CTS Control Pot Specs

  • Resistance 500K-ohm

  • Taper Style: Audio

  • Knob type = Split shaft, fine knurling

  • Shaft diameter: 3/8th (9.52mm

  • Thread type: 3/8th x 32

  • Thread height:

  • Short shaft: 3/8th (9.52mm)

  • Long shaft: 3/4th (19.05mm)

  • Required mounting hole diameter 3/8" (9.52mm)

Bourns Control Pot Specs

  • Resistance 500K-ohm

  • Taper Style: Audio

  • Knob type = Split shaft, Coarse knurling

  • Shaft diameter: 3/8th (9.52mm

  • Thread type: 3/8th x 32

  • Thread height:

  • Short shaft: 3/8th (9.52mm)

  • Required mounting hole diameter 3/8" (9.52mm)

Push pull pot specs

  • Required body depth for install: 1 1/8” (28.58)

Capacitor Specs

  • Brand: CDE

  • Model: "Orange Drop"

  • Value .022uF -/+10%

Neutrik Output Jack Specs

  • Mounting hole diameter 3/8" (9.52mm)

  • Thread 3/8 x 32

  • Threaded portion height 1/4" (6.35mm)

Secondary:
Pot:
Main Circuit:
