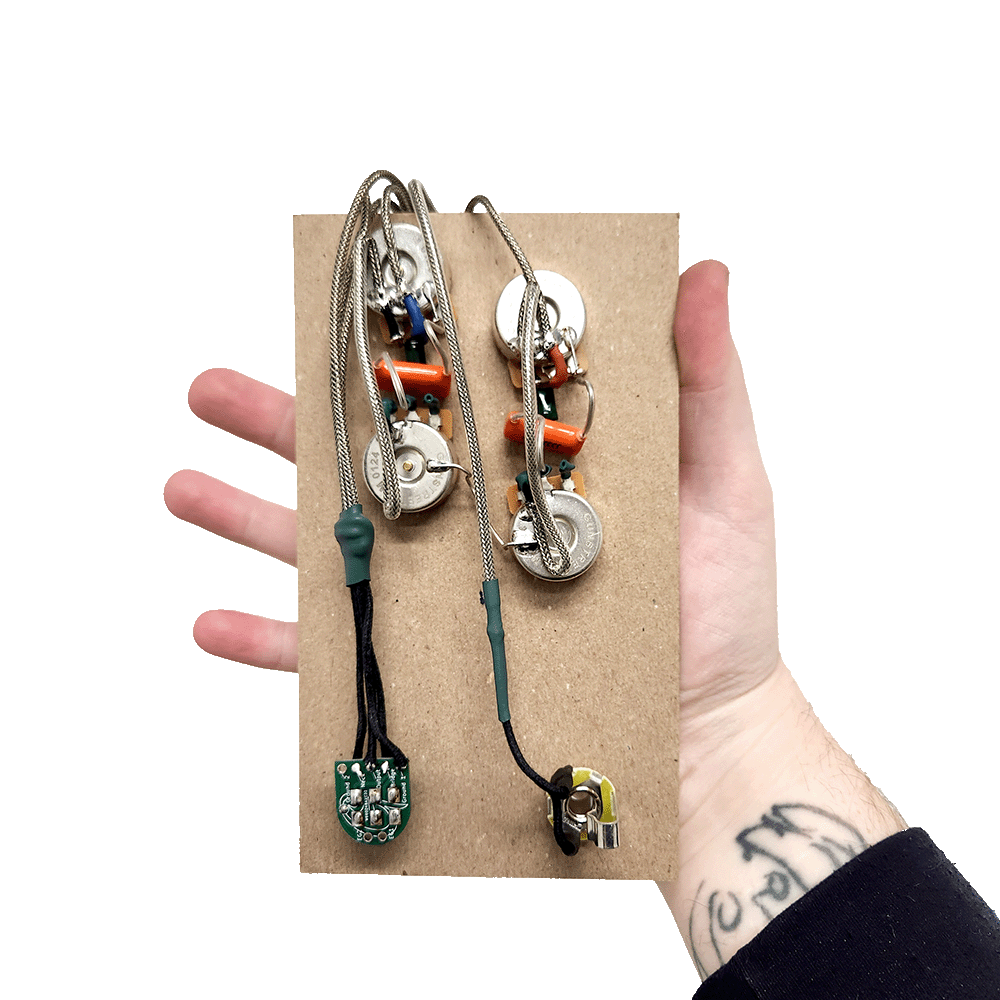

Gunstreet Telecaster Deluxe & Custom Wiring Harness

Sale price$119.95

Our kits are a perfect drop-in replacement for your Telecaster Deluxe or Custom style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

  1. Red 50’s Wiring (Vintage High Pass Filter) This wiring was found in the first gen of electric guitars. It features a transparent sound as you roll off the volume at the cost of a steep volume taper and an on/off tone control that interacts a lot with your volume position

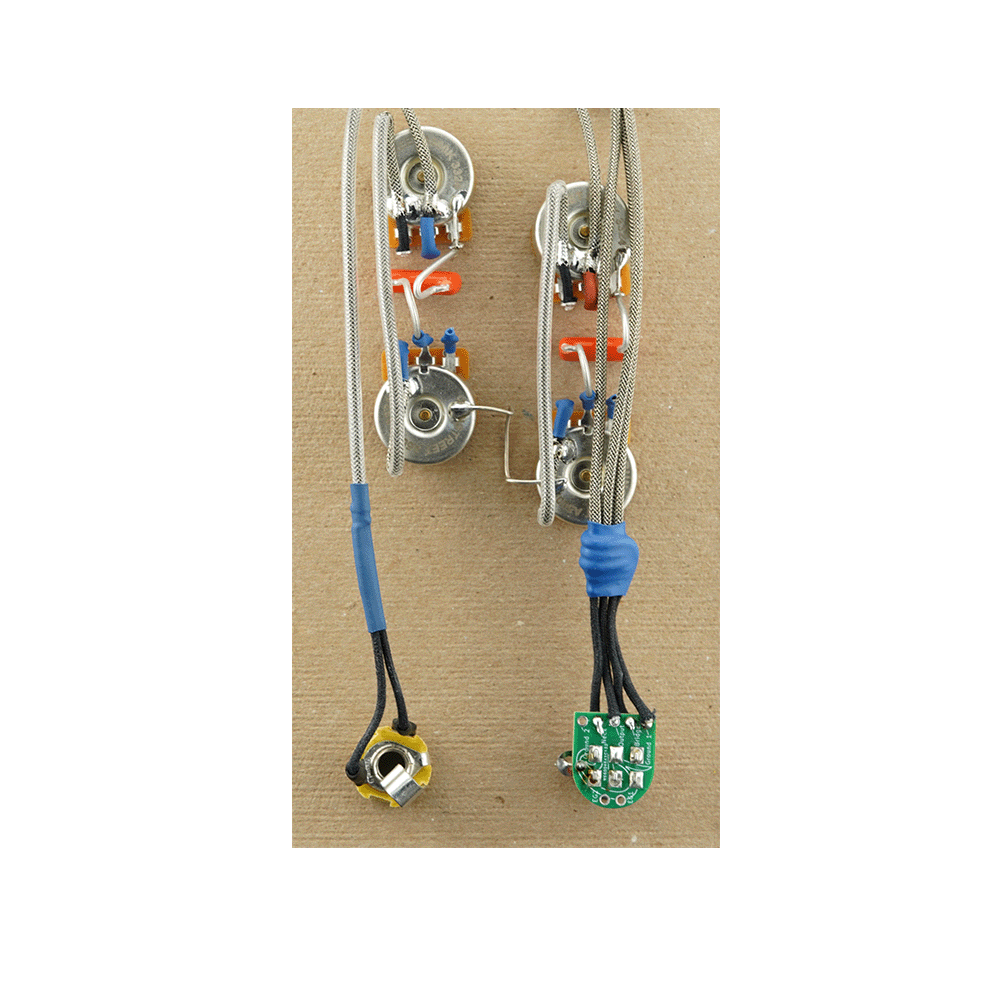

  2. Blue Modern Wiring: (Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.

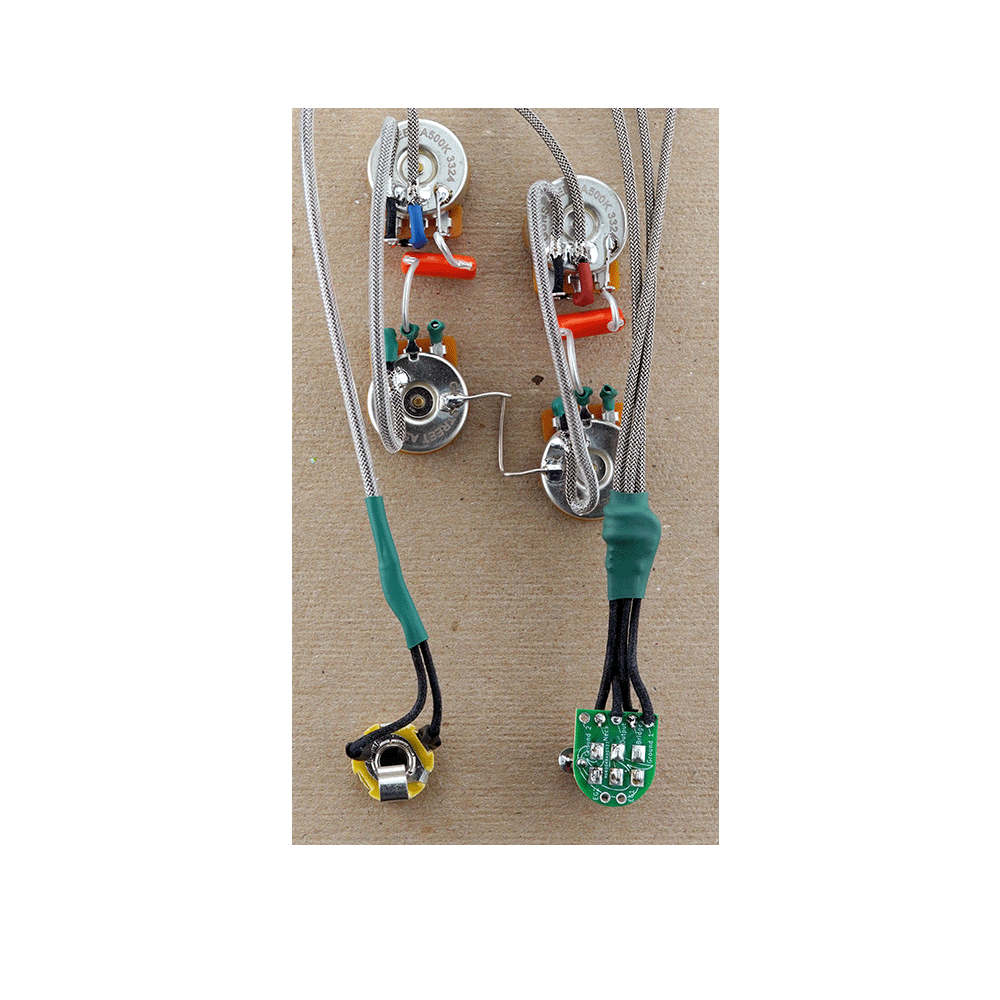

  3. Green Treble Bleed (Modern High pass Filter) Often called a “Volume bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.

Part Info

  • New Gunstreet Toggle Switch Specs

    Our new easy to install switch offers a better overall quality compared to Switchcraft. All while offering a quieter switching experience.

    • Body cavity depth 5/8" (15.87mm)

    • Mounting hole diameter 1/2" (12.70mm)

    • Thread height 7/32" (5.56mm)

    • Switch Tip Threading: 8-32

    Learn more about it and our new Gunstreet pots here

DHE "Gunstreet" Pot

  • Taper style: Custom Audio

  • Shaft Diameter: 3/8” (9.52MM)

  • Shaft Length: 3/8th (9.52MM )

  • Knob Pattern: Solid Metal Shaft 1/4th” (6.35mm)

  • Nut thread: 3/8 x 32

  • Values:

    • Single Coil: 250k

    • HS “Humbucker/Single Combo: 500k Volume,250k Tone

    • Humbucker: 500k

    • Widerange: 1Meg

CDE “Orange Drop” Cap

  • Tolerance: -/+10%

  • Values:

    • Single Coil: 0.047uf

    • HS & Humbucker: 0.022uf

    • Widerange: 0.033uf

Neutrik Rean mono jack

  • Required mounting hole diameter: 3/8" (9.53mm)

  • Thread: 3/8 x 32Thread height:1/4" (6.35mm)

Requirements (Must Read)

  1. Switching from a Import pot to our US Spec pot will require you to have 3/8th pot holes on your pickguard
  2. When Choosing our US Spec pots, you will need a 1/4th diameter knob. The Import 6mm found of most imports, MIM, and MIJ guitar will not fit.

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item is it free of any hum, crackles, or pops!

Tips & Tricks

  • Tele Deluxe with CuNiFe wideranges
    • Fender suggests 500k (our "Humbucker" option) where Purest suggest 1meg (Classic Widerange) Fender's choice tends to be the Safest option as the 1meg set up tends to have a strong "Love or Hate" response with players.
  • Tele Custom
    • Stock you have 250k pots (our "Single Coil" option) but we created our "HS Combo" to be the best setup for those with either a Widerange, or Humbucker in the neck, and Single Coil bridge.
    • Widerange neck: Doing 1meg/0.033uf in the neck volume/tone and 250k/0.047uf in the bridge is doable, but most players hate the middle switch position making it to them "unusable." Our "HS combo" is your best option for this.
