Gunstreet Les Paul Special Wiring Harness - Classic Gunstreet Les Paul Special Wiring Harness - Classic Gunstreet Les Paul Special Wiring Harness - Classic
Gunstreet Les Paul Special Wiring Harness - Classic
Gunstreet Les Paul Special Wiring Harness - Classic
Gunstreet Les Paul Special Wiring Harness - Classic

Gunstreet Les Paul Special Wiring Harness - Classic

SKU: GSWH-LPSP-CH-5

$89.95

Our kits are a perfect drop-in replacement for your LP Special style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

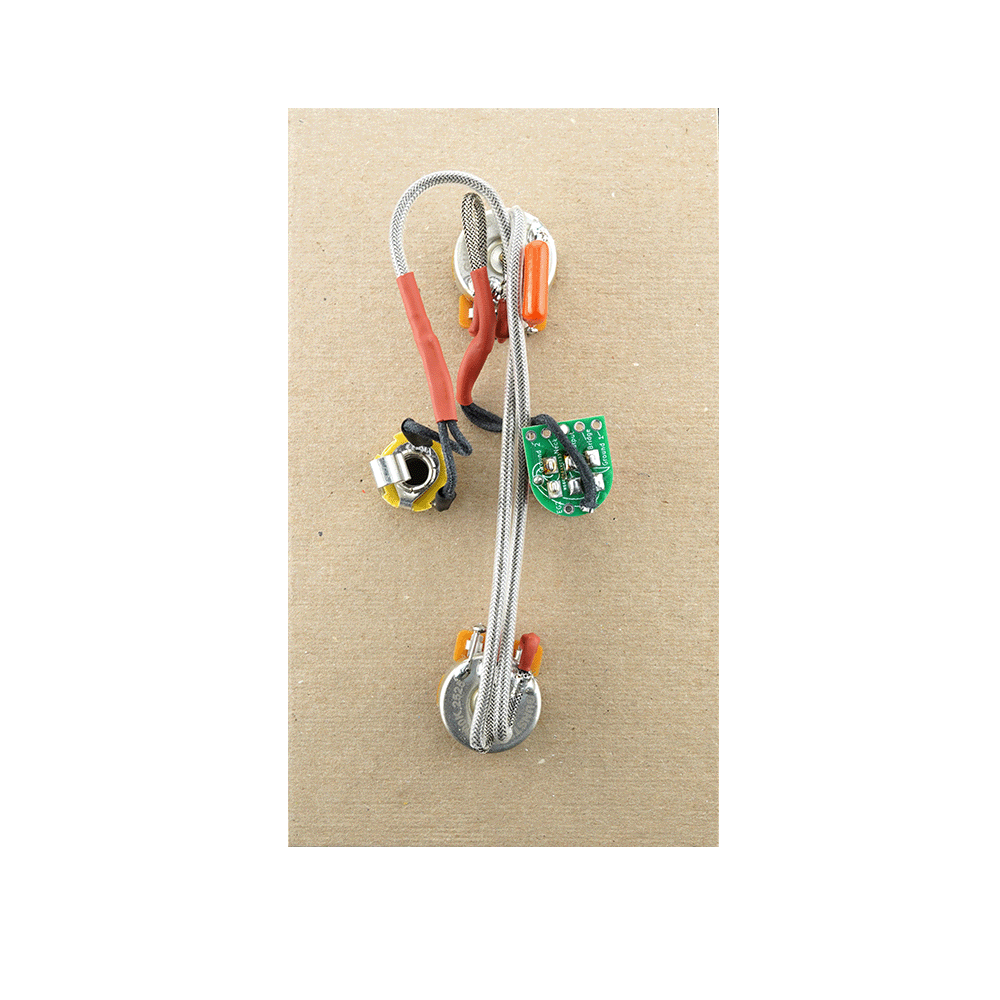

  1. Red 50’s Wiring (Vintage High Pass Filter) This wiring was found in the first gen of electric guitars. It features a transparent sound as you roll off the volume at the cost of a steep volume taper and an on/off tone control that interacts a lot with your volume position
  2. Blue Modern Wiring: (Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.

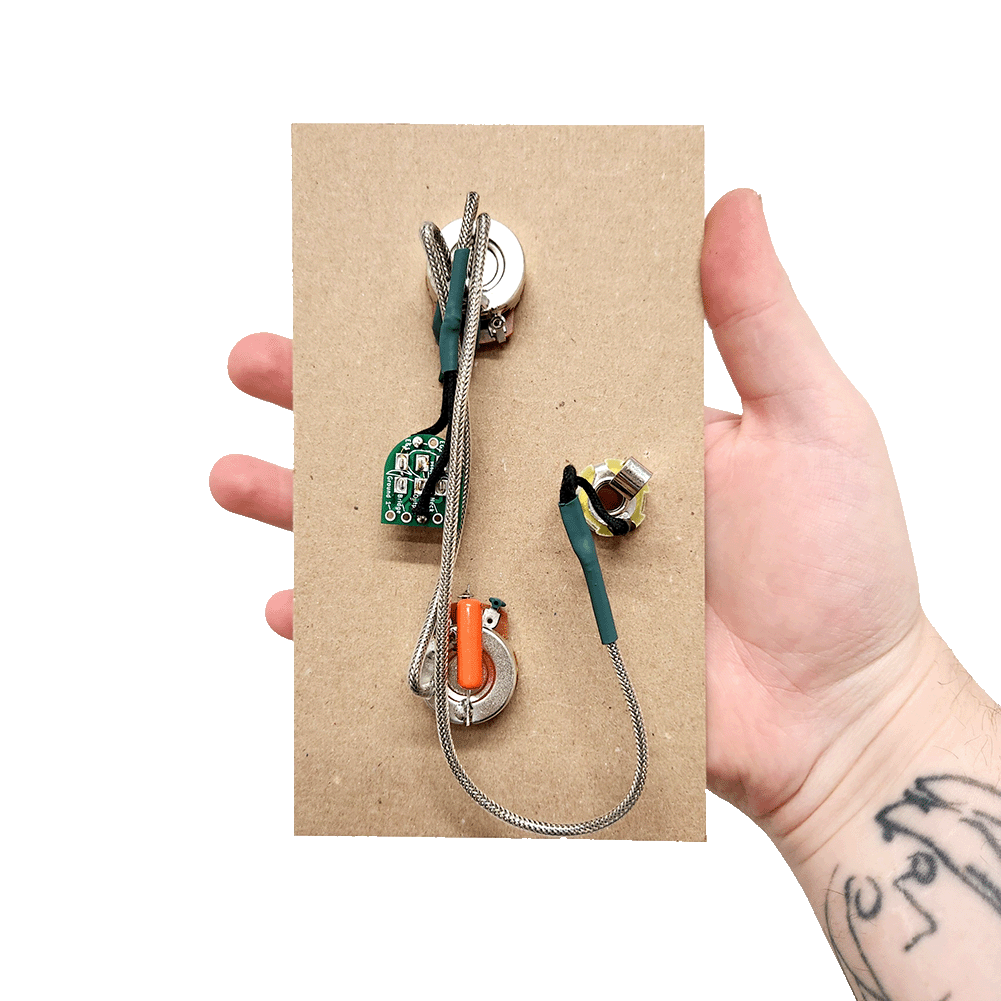

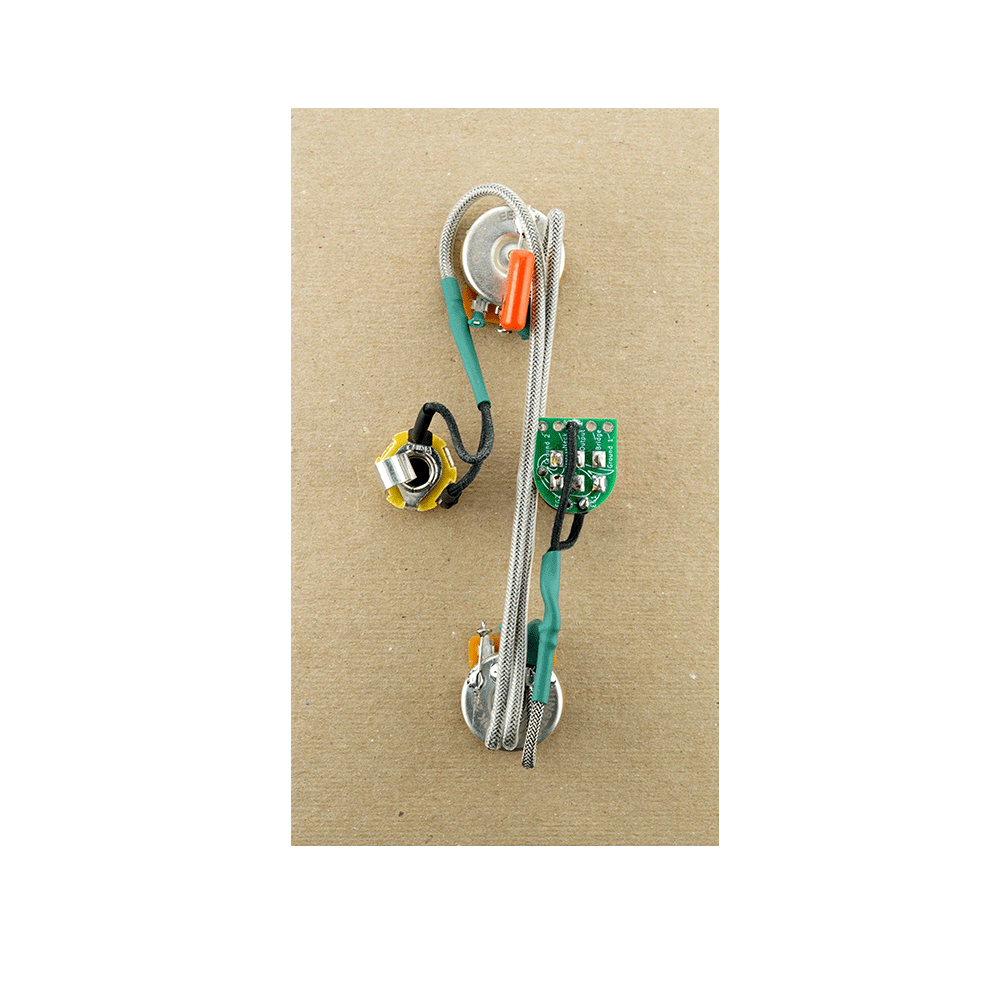

  3. Green Volume Bleed (Modern High pass Filter) Often called a “treble bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.

Part Info

Pot: Classic US Spec

  • Brand: CTS 450G

  • Taper style: Audio

  • Shaft Diameter: 3/8” (9.52MM)

  • Shaft Length: “Short shaft” 3/8th (9.52MM )

  • Knob Pattern: Fine

  • Nut thread: 3/8 x 32

Pot: Metric

  • Brand: JSE

  • Taper style: Audio

  • Shaft Diameter: 6MM

  • Shaft Length: 9.52MM (3/8th)

  • Knob Pattern: 18 tooth Coarse

  • Nut thread: M8 x 0.75

Pot: Low Friction

  • Brand: Bourns

  • Taper style: Audio

  • Shaft Diameter: 3/8” (9.52MM)

  • Shaft Length: “Short shaft” 3/8th (9.52MM )

  • Knob Pattern: 18 tooth Coarse

  • Nut thread: 3/8 x 32

Neutrik Rean mono jack

Required mounting hole diameter: 3/8" (9.53mm)

Thread: 3/8 x 32

Thread height: Standard: 1/4" (6.35mm)

CDE “Orange Drop” Cap

Value tolerance rating: +/- 10%

Switchcraft 3 way Toggle Switch

Required Body cavity depth: 7/8”" (22.23MM)

Mounting hole diameter: 1/2" (12.70mm)

Thread height: 11/32” (8.74MM)

Thread Pattern: 15/32x 32

Switch tip Thread: 8-32

Pickup Style Value Specs

  • P90: 500k Volume - 250k Tone - 0.022uf Cap
  • Humbucker: 500k Volume & Tone - 0.022uf Cap

Requirements

  • Switching an import pot to US spec will require you to enlarge the stock pot holes on your instrument to 3/8th
  • Bourns and Import Versions require an 18th tooth "Coarse" Knurled knob
  • Our CTS Version require a 24 tooth "Fine" knurled knob

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!

Instructions

  • How to install a 50s wiring kit in your LP Special guitar
  • How to install a Modern or Volume Bleed wiring kit in your LP Special guitar
