SKU: GSWH-LPJR-CH-5

$64.95
(1)

Our kits are a perfect drop-in replacement for your Les Paul Junior style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

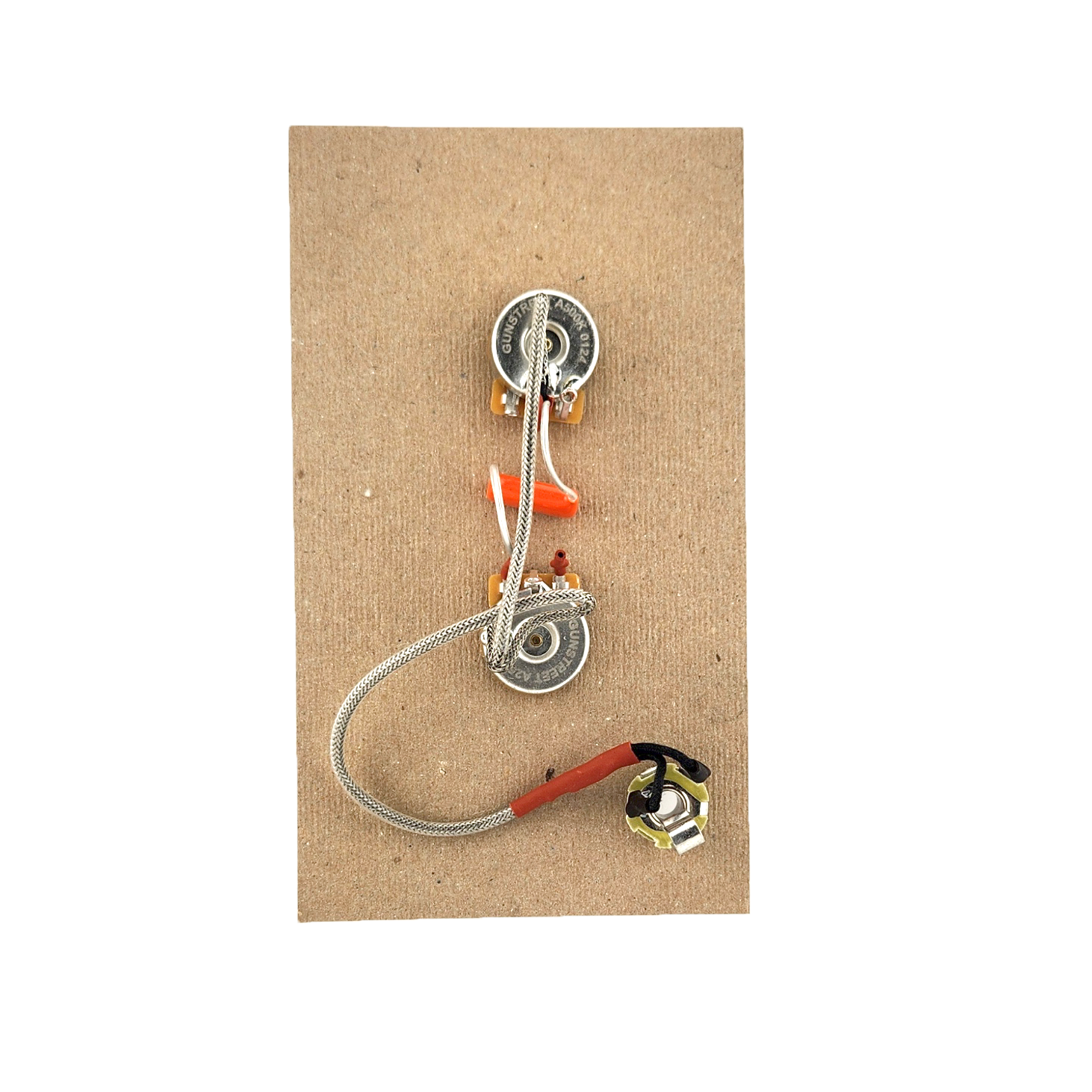

  1. Red 50’s Wiring (Vintage High Pass Filter) This wiring was found in the first gen of electric guitars. It features a transparent sound as you roll off the volume at the cost of a steep volume taper and an on/off tone control that interacts a lot with your volume position
  2. Blue Modern Wiring: (Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.
  3. Green Volume Bleed (Modern High pass Filter) Often called a “treble bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.

Parts info

Raw Parts

Pot: US Spec

Brand: CTS 450G

Taper style: Audio

Shaft Diameter: 3/8” (9.52MM)

Shaft Length: “Short shaft” 3/8th (9.52MM )

Knob Pattern: 24 tooth Fine

Nut thread: 3/8 x 32

Pot: Low Friction

Brand: Bourns

Taper style: Audio

Shaft Diameter: 3/8” (9.52MM)

Shaft Length: “Short shaft” 3/8th (9.52MM )

Knob Pattern: 18 tooth Coarse

Nut thread: 3/8 x 32

Pot: Import

Shaft Diameter: 6MM

Taper style: Audio

Shaft Length: 9.52MM (3/8th)

Knob Pattern:18 tooth Coarse

Nut thread: M8 x 0.75

Neutrik Rean mono jack

Required mounting hole diameter: 3/8" (9.53mm)

Thread: 3/8 x 32

Thread height: Standard: 1/4" (6.35mm)

CDE “Orange Drop” Cap

Value tolerance rating: +/- 10%

Pickup Style Value Specs

P90: 500k Volume - 250k Tone - 0.022uf Cap

Humbucker: 500k Volume & Tone - 0.022uf Cap

Requirements

  • Converting an Import guitar to US spec
    • US spec pots will require you to enlarge the stock pot holes to be 3/8th
    • If swapping to CTS you will need new "Fine Knurled" knobs
  • Choosing Bourns or Import Versions will require an 18th tooth "Coarse" Knurled knob
  • Choosing a CTS Version will require a 24 tooth "Fine" knurled knob
