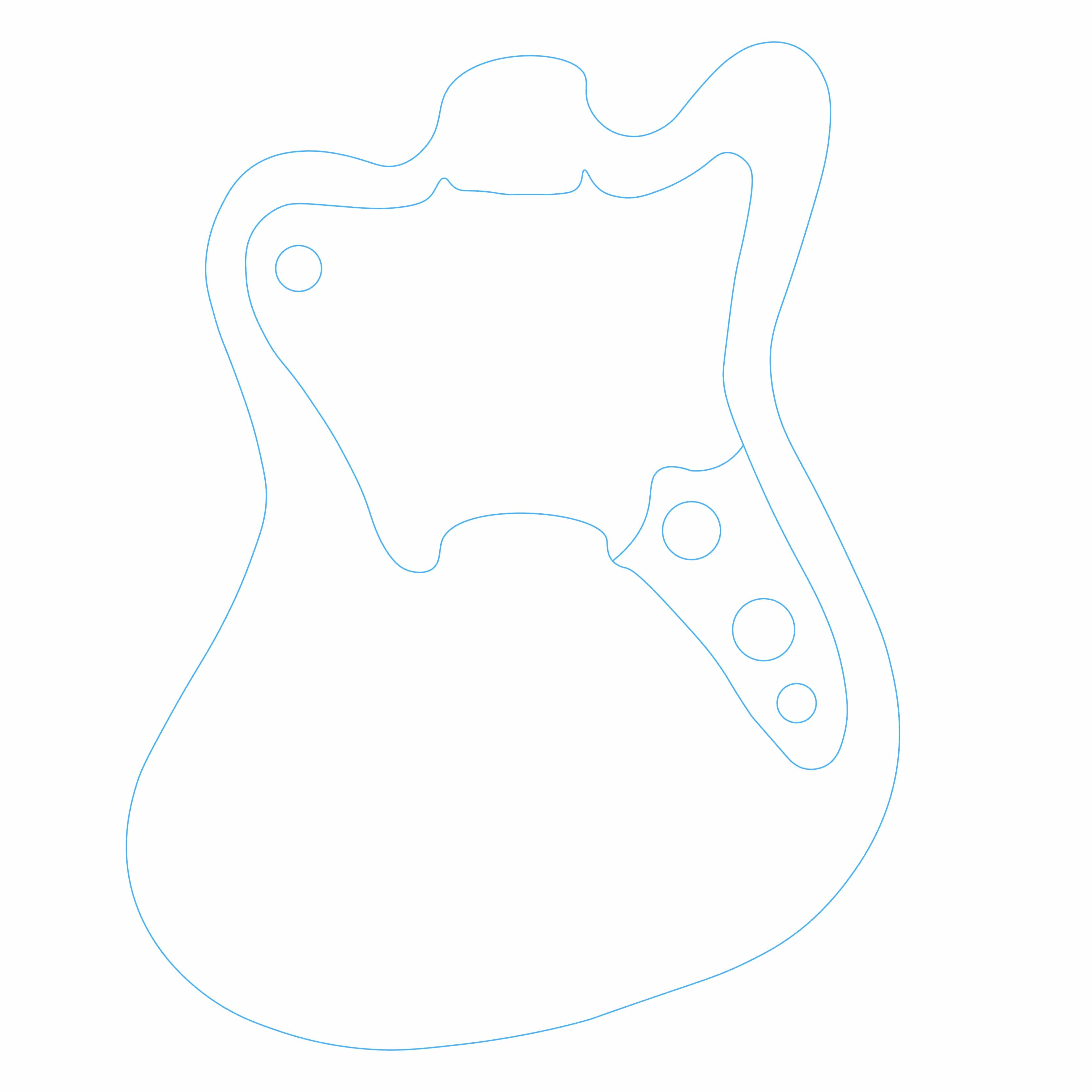

Gunstreet Super Sonic Wiring Harness Volume Volume

Gunstreet Super Sonic Wiring Harness Volume Volume

Sale price$79.95

Our kits are a perfect drop-in replacement for your Super sonic style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

Filter circuit Options:

  1. Blue- Modern Wiring: (Stock Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.

  2. Green-Treble Bleed (Modern High pass Filter) Often called a “Volume bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.

Part Info

New Gunstreet Toggle Switch Specs

Our new easy to install switch offers a better overall quality compared to Switchcraft. All while offering a quieter switching experience.

  • Body cavity depth 5/8" (15.87mm)

  • Mounting hole diameter 1/2" (12.70mm)

  • Thread height 7/32" (5.56mm)

  • Switch Tip Threading: 8-32

Learn more about it and our new Gunstreet pots here

Metric Control Pot Specs

  • Resistance 500K-ohm

  • Taper Style: Audio

  • Knob type = coarse knurling

  • Shaft diameter 6mm

  • Thread type: M8 x 0.75

  • Required mounting hole diameter 3/8" (9.52mm)

US SPEC: DHE Gunstreet Pots

  • Taper Style: Custom Audio Taper

  • Knob type: 18 spline Coarse knurling

  • Shaft diameter: 3/8" (9.52mm)

  • Thread type: 3/8"-32

  • Threaded portion: 3/8" (9.52mm)

  • Required mounting hole diameter: 3/8" (9.52mm)

Bourns Push Pull Control Pot Specs

  • Resistance 500K-ohm

  • Taper Style: Audio

  • Knob type = Split shaft, Coarse knurling

  • Shaft diameter: 3/8th (9.52mm

  • Thread type: 3/8th x 32

  • Thread height:

  • Short shaft: 3/8th (9.52mm)

  • Required mounting hole diameter 3/8" (9.52mm)

Capacitor Specs

  • Brand: CDE

  • Model: "Orange Drop"

  • Value .022uF -/+10%

Neutrik Output Jack Specs

  • Mounting hole diameter 3/8" (9.52mm)

  • Thread 3/8 x 32

  • Threaded portion height 1/4" (6.35mm)

Requirements

  • If you are converting a non-US spec guitar to US spec You will need to confirm whether or not your control is US Spec, Some guitars come with US spec plate even though they have Metric pots. But If you pot holes are 3/8th then you do not need a new plate. If they are not then you need to buy a replacement control plate.
  • If you are purchasing a Coil cutting kit. You will need both of your pickups to be 4 conductor.

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!
