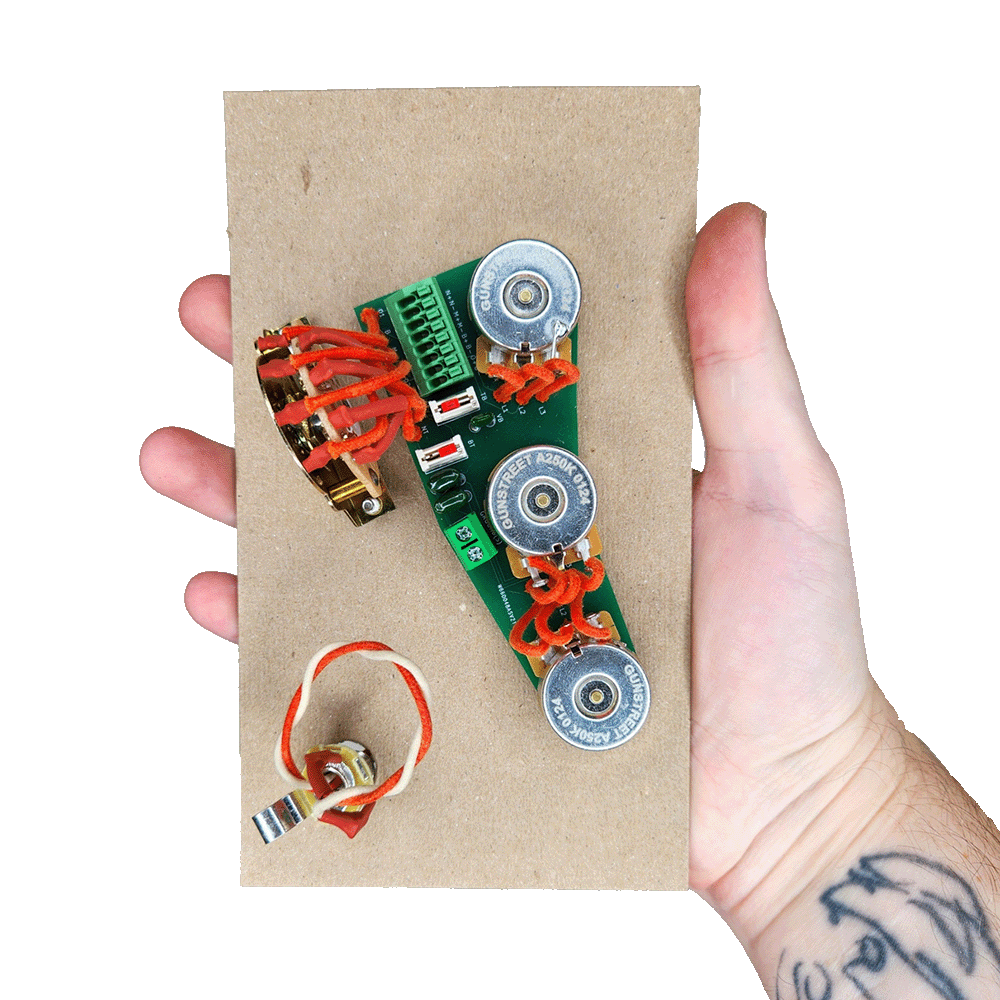

Gunstreet Stratocaster Classic 5 way Solderless Wiring Harness

Sale price$109.95

Do you have Scratchy pots, Dead spots, or controls that just feel in nice terms REALY WEIRD? Enter the all new Gunstreet Solderless Wiring System!

This premium solderless harness not only enhances your sound quality with top-notch components, it also improves the feel, performance, and response of your instrument. You will also get to enjoy the switchable flexibility of two distinct Volume Voicing Options, giving you total control over your instrument's sonic character.

Thanks to the rock-solid solderless design the hard part is already handled! The Gunstreet Solderless harnesses feature a unique adjustable design that fits more instruments than others offering a similar setup and creates for a rapid hassle-free installation. This means you can get back to those sick riffs as quickly as possible!

Whether you realize it or not, your instrument's electronics are a massive part of your playing experience, and now there is no reason you can't experience the best. Upgrade your tone today and experience the difference.


How the switch, controls, and VVC works

Standard Layout
  • Master Volume
  • Tone 1:Works in positions the Neck pickup is "ON"
  • Tone 2:Works in positions the Middle pickup is "ON"
Switch Positions
  1. Bridge No tone control
  2. Bridge & Middle
  3. Middle
  4. Middle & Neck
  5. Neck

VVC (Volume Voicing Circuit)

  • Down: Saves more low end as you are using the Volume
  • UP: Saves more High end as you are using the Volume

BT Switch (Bridge Tone)

  • Down: Standard setup of no tone control on your bridge pickup
  • UP: Tone 1 can now be used in any positions the Bridge pickup is "ON"

Part INfo

DHE Custom Gunstreet Pots

  • Value: 250k -/+ 15%
  • Taper Style: Custom Audio
  • Knob Shaft Style: 18 tooth "Coarse" split shaft Knurled
  • Threading Height: 3/8th (9.52mm)
  • Shaft Diameter: 3/8th (9.52mm)
  • Thread Pattern:3/8 x 35


  • Brand: Vishay
  • Values: 0.047uf -/+10%

Output Jack

  • Brand: Rean
  • Diameter: 3/8th” (9.52mm)
  • Thread Length: 1/4th” (6.35mm)

Oak Switch Specs

  • Body cavity depth 1-3/8th" (34.93mm)

  • Mounting Screw Spacing:1 5/8" (41.28mm)

  • Lever Stem (0.50x.190)

Requirements (Must Read)

  • Switching from an Import pot to a US Spec pot like our Gunstreet pots will require you to have 3/8th pot holes on your pickguard
  • Our Pots will need a 18 tooth "Coarse" Pattern knob.
  • Some cheap Import guitar cavities are designed for Mini 12mm pots. To install a 24mm Fullsized pot may require routing out some of the cavity
  • HSS Strats. Most manufactures recommend 250k with this layout so our standard setup is the right one you want.

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!
