Gunstreet PRS Toggle Switch with Custom Coil Tap Solderless Wiring Harness

Name: Gunstreet PRS Toggle Switch with Custom Coil Tap Solderless Wiring Harness
Brand: Gunstreet
SKU: GSWH-SL-PRS-TSCT
Price: 129.95 USD
Availability: InStock

$129.95

Do you have Scratchy pots, Dead spots, or controls that just feel in nice terms REALLY WEIRD? Enter the all new Gunstreet Solderless Wiring System!

This premium solderless harness not only enhances your sound quality with top-notch components, it also improves the feel, performance, and response of your instrument. You will also get to enjoy the switchable flexibility of two distinct Volume Voicing Options, giving you total control over your instrument's sonic character.

Thanks to the rock-solid solderless design the hard part is already handled! The Gunstreet Solderless harnesses feature a unique adjustable design that fits more instruments than others offering a similar setup and creates for a rapid hassle-free installation. This means you can get back to those sick riffs as quickly as possible!

Whether you realize it or not, your instrument's electronics are a massive part of your playing experience, and now there is no reason you can't experience the best. Upgrade your tone today and experience the difference.

How the controls work

How the VVC works

Down: Saves more low end as you are using the Volume
UP: Saves more High end as you are using the Volume

How the Coil switching works

1.OEM Tap: This position gives you the standard tap PRS designed to match their pickups
2.P90 Tap: This position is designed to give you a slightly more full single coil sound
3.Coil Cut: This position gives you a true single coil sound by cutting one of the coils completely

Part Info

New Gunstreet Toggle Switch Specs

Our new easy to install switch offers a better overall quality compared to Switchcraft. All while offering a quieter switching experience.
- Body cavity depth 5/8" (15.87mm)
- Mounting hole diameter 1/2" (12.70mm)
- Thread height 7/32" (5.56mm)
- Switch Tip Threading: 8-32
Learn more about it and our new Gunstreet pots here

DHE Gunstreet Pots "Universal fit"

Taper Style: Custom Audio Taper
Knob type: 18 spline Coarse knurling
Shaft diameter: 8mm
Required mounting hole diameter: 8mm
Thread type: M8 x 0.75
Value: 500k +/-15%

Capacitor Specs

Brand: Vishay
Tone Value .022uF -/+10%

Neutrik Output Jack Specs

Mounting hole diameter 3/8" (9.52mm)
Thread 3/8 x 32
Threaded portion height 1/4" (6.35mm)

Requirements (Must Read)

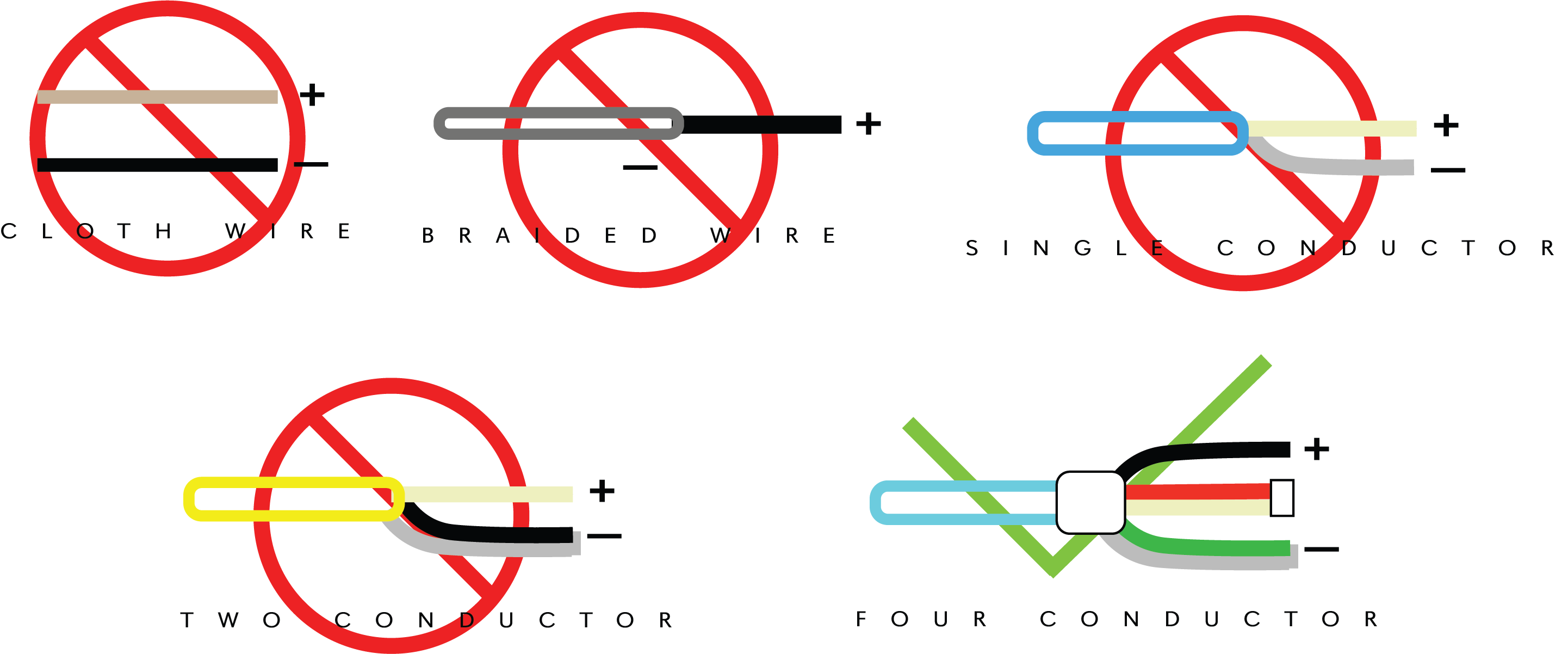

Your pickups must have 4 conductor wires

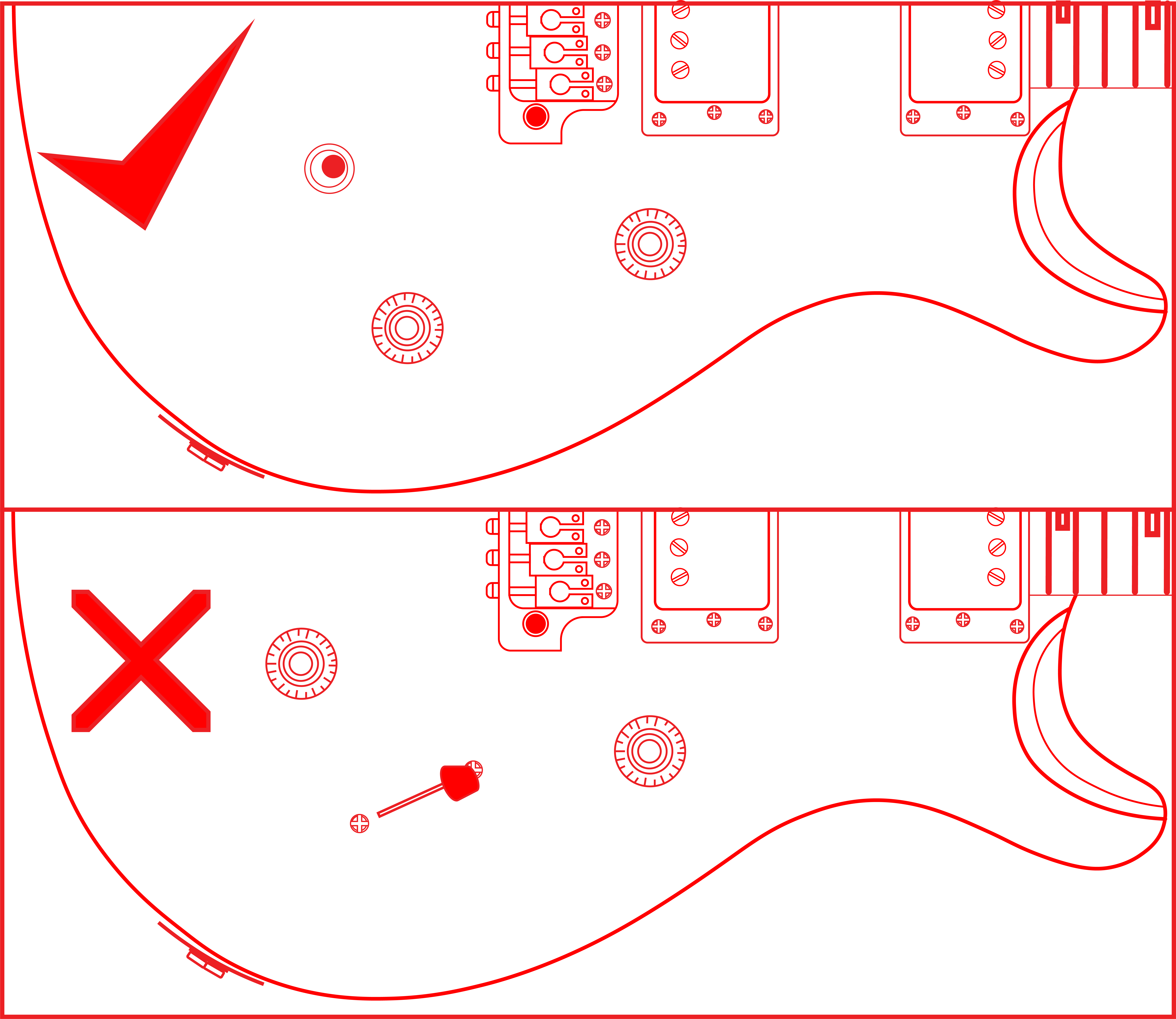

This kit was designed to use a toggle switch, You cannot install this in any PRS that has a lever switch.
Our Custom Pots feature an 18 tooth "Coarse" knurled knob pattern, You may need new knobs if you have a US spec guitar
Please note on some American made models, the output jack may need to be desoldered to pass through a smaller opening to get to the output jack cavity.

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!

Layout Specs & Instructions

All kits include a paper diagram.

Online "How to instructions" here
