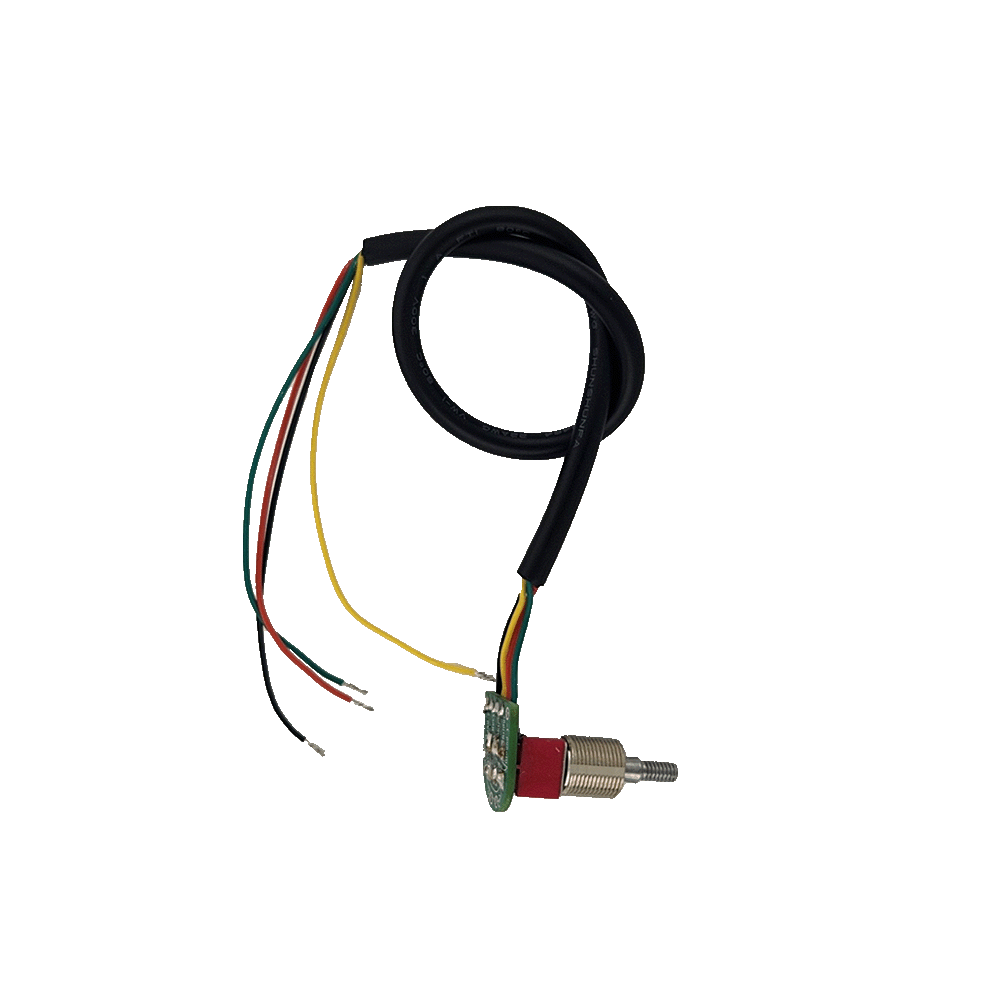

Gunstreet Classic PRS Single Cut Coil tapping Solderless Wiring Harness

VVC (Volume Voicing Circuit)

• Down: Saves more low end as you are using the Volume
• UP: Saves more High end as you are using the Volume

Here are the three pickup switch positions and their corresponding sound profiles:

1. 1.Classic Cut: Split your humbucker to unlock all the cut and presence you’d expect from a “true” single coil.
2. 2.P90: Transform your humbucker with the dynamic mids, grit, and versatility of a P90.
3. 3.Sparkle Tap: Tap into the superlative sparkle and twang of vintage single coil sounds.

New US Spec DHE “Gunstreet” Pots

• • Taper style: Custom Audio
  • Shaft Diameter: 3/8” (9.52MM)
  • Shaft Length: 3/4th "Long Shaft" (19.05MM )
  • Knob Pattern: 18 spline coarse Split shaft knurling
  • Nut thread: 3/8 x 32

Bourns Push Pull Pots

• • Taper style: Custom Audio
  • Shaft Diameter: 3/8” (9.52MM)
  • Shaft Length: 3/4th "Long Shaft" (19.05MM )
  • Knob Pattern: 18 spline coarse Split shaft knurling
  • Nut thread: 3/8 x 32

New Gunstreet Toggle Switch Specs

Our new switch offers better overall quality compared to Switchcraft while offering a quieter switching experience.

• Body cavity depth 5/8" (15.87mm)

• Mounting hole diameter 1/2" (12.70mm)

• Thread height 7/32" (5.56mm)

• Switch Tip Threading: 8-32

Learn more about it and our new Gunstreet pots here

Capacitor

• Brand: Vishay
• Values: 0.022uf -/+10%

Neutrik Rean mono jack

• Required mounting hole diameter: 3/8" (9.53mm)

• Thread: 3/8 x 32

• Thread height: 1/4" (6.35mm)

• This kit Requires a 4 conductor Pickup Lead
• This kit is designed for output jack cavities where you can pass the jack through from the inside.

• Converting an Import guitar to US spec will require you to enlarge the stock pot holes to be 3/8th diameter

• Our Pots require a 18th tooth "Coarse" Knurled knob. If swapping from a CTS pot to our Gunstreet pot will require new knobs
• As long as your pot holes are 3/8th diameter, this kit was designed to fit the standard thicknesses of both US and Import LP tops.

Here are our online how-to guides, which cover the most common pickup Leads. Please contact us if you have any questions about our pickups.

How to install our Custom coil cutting Kit

While our kits are designed to fit a wide variety of brands and models, they are not universally compatible. To ensure proper fit, please verify the dimensions or contact us for assistance.

At Gunstreet we believe the right circuit will unlock any guitar’s true potential. We also believe that nothing should stand in the way of achieving that potential.

Gunstreet Solderless Wiring Harnesses aren’t just wiring kits; they’re carefully crafted circuits designed to advance your instrument with the kind of tone and reliability you’d expect from a boutique builder. Each harness is a complete upgrade, made from high-spec components and designed to install easily—no soldering iron required.

Every harness we make is purpose-built for tonal clarity and playability, offering a straightforward path to professional-grade performance. Whether you’re a first-time tinkerer or a tone-chasing veteran, we’ve eliminated the frustrating barriers that come with guitar modding and taken care of all the details—clean layouts, bulletproof connections, and intuitive instructions that’ll allow you to take full control of your guitar’s voice.

We do the wiring. You do the playing. No shortcuts. No compromise. Just superior tone, simplified
