SKU: GSWH-TELEC-CS-3W-5

$89.95

Our kits are a perfect drop-in replacement for your Telecaster style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

  1. Red 50’s Wiring (Vintage High Pass Filter) This wiring was found in the first gen of electric guitars. It features a transparent sound as you roll off the volume at the cost of a steep volume taper and an on/off tone control that interacts a lot with your volume position

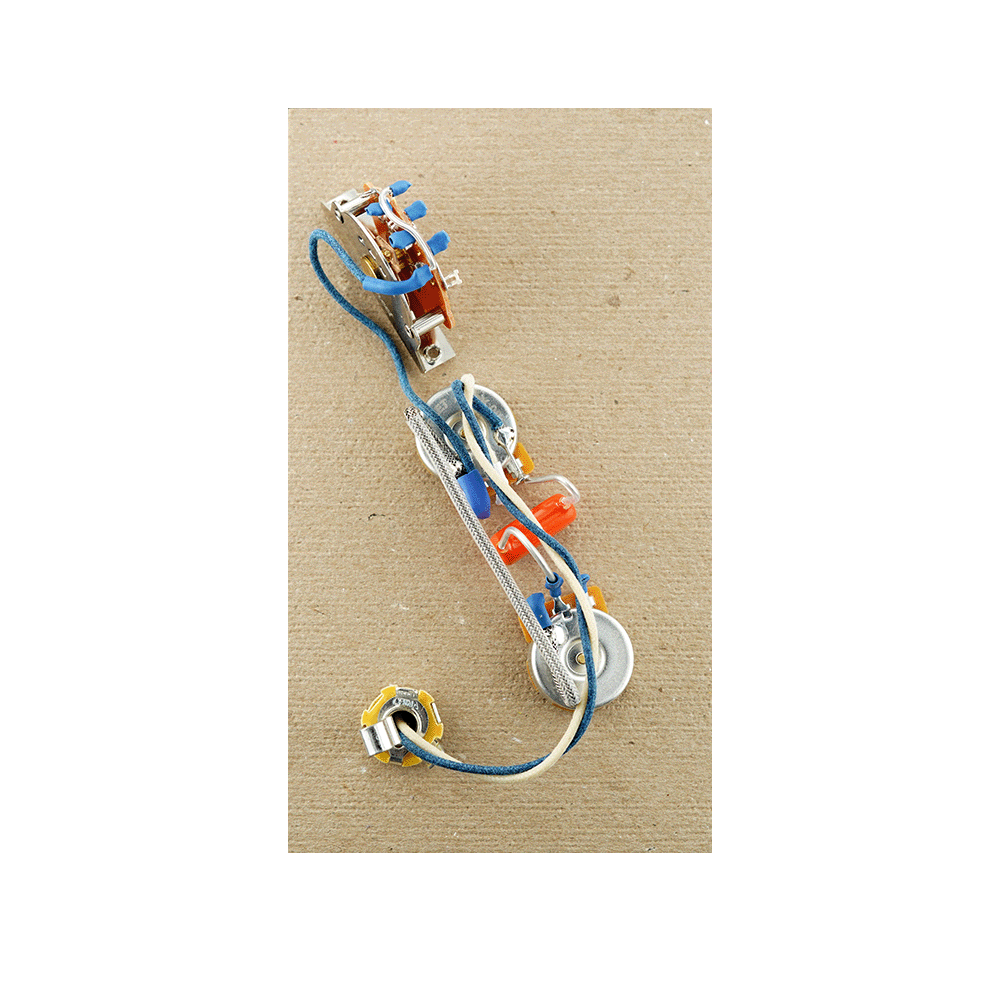

  2. Blue Modern Wiring: (Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.

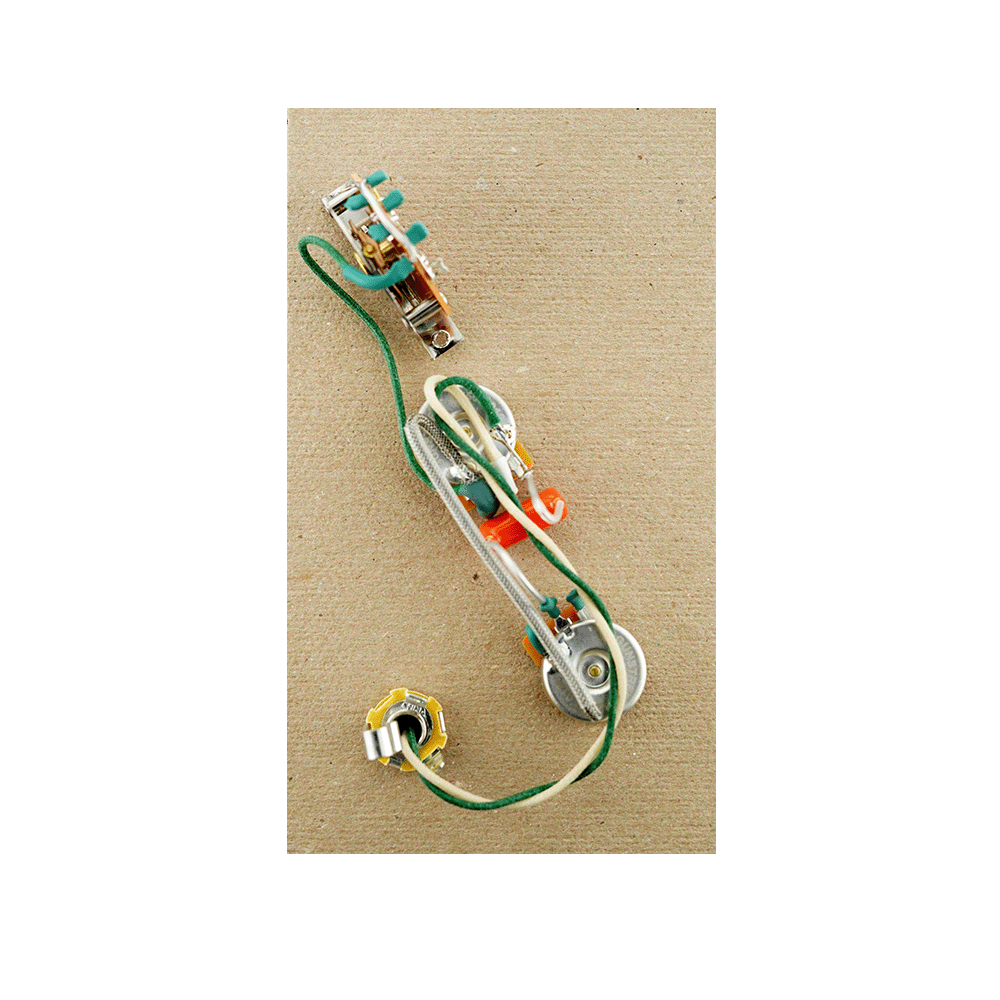

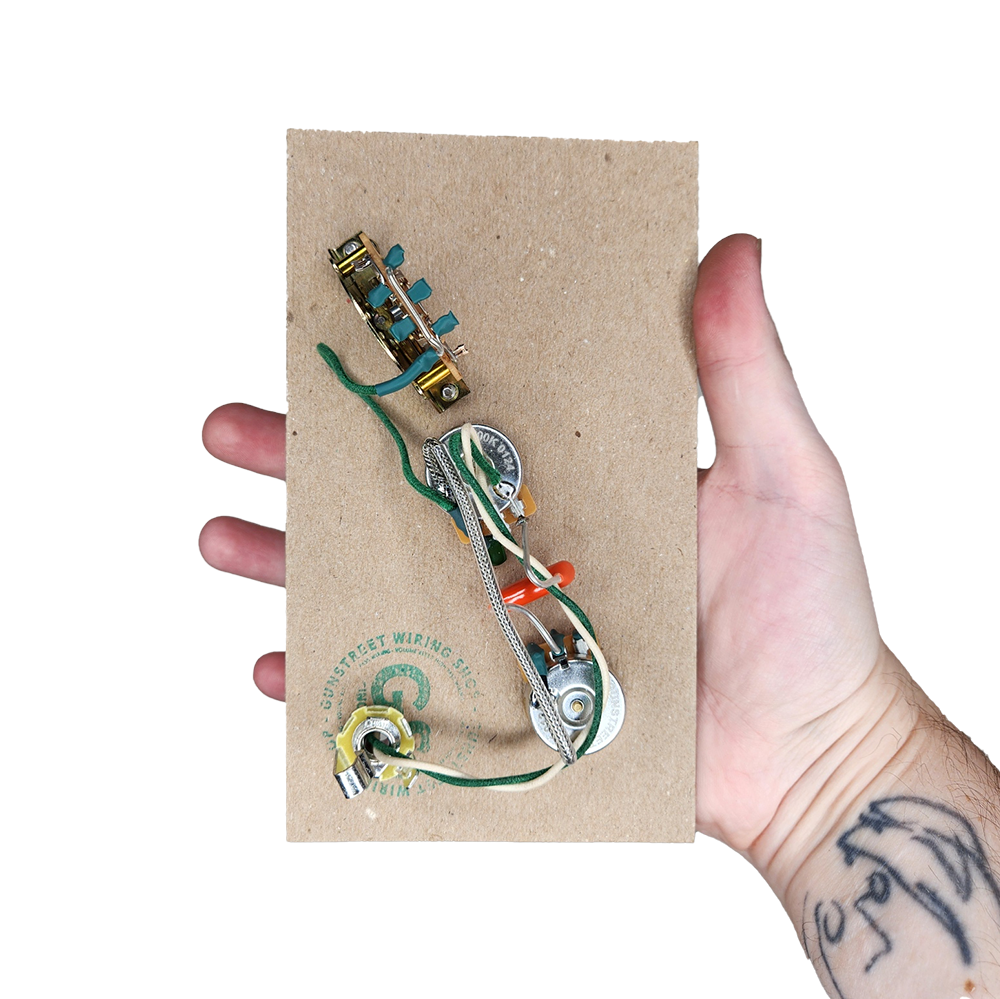

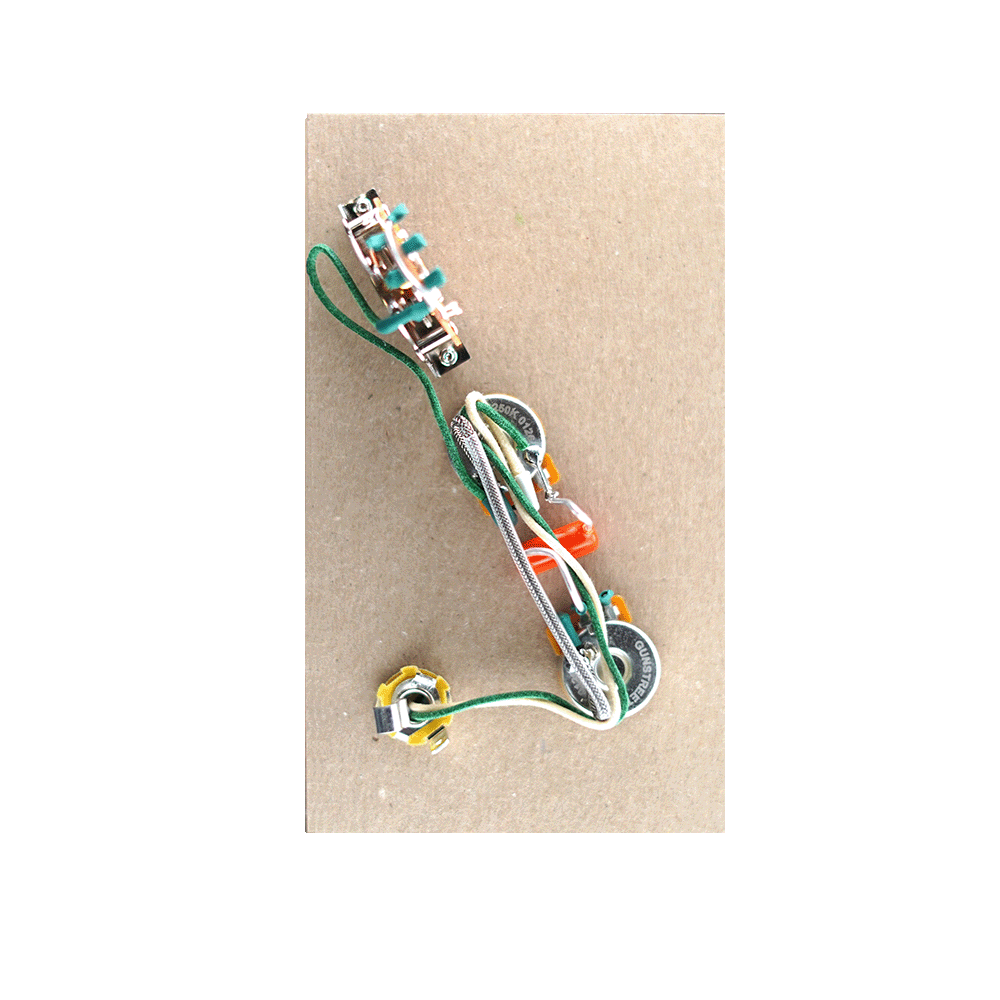

  3. Green Volume Bleed (Modern High pass Filter) Often called a “treble bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.

Part info

Raw Parts

Switch

  • Brand: Oak

  • Cavity Depth Needed: 1-7/16” (36.51mm)

  • Screw Spacing: 1-5/8” (41.28mm)

  • Lever Stem: .50” x .190” (1.27mm x 4.82mm)

CTS 450G Pot

  • Taper style: Audio

  • Shaft Diameter: 3/8” (9.52MM)

  • Shaft Length: 1/4th (6.35mm )

  • Knob Pattern: Solid Metal Shaft 1/4th” (6.35mm)

  • Nut thread: 3/8 x 32

  • Values:

    • Single Coil: 250k

    • HS: 500kV-250kT

    • Humbucker: 500k

Bourns Low Friction

  • Taper style: Audio

  • Shaft Diameter: 3/8” (9.52MM)

  • Shaft Length: 3/8th (9.52MM )

  • Knob Pattern: Solid Metal Shaft 6mm

  • Nut thread: 3/8 x 32

  • Values:

    • Single Coil: 250k

    • HS: 500kV-250kT

    • Humbucker: 500k

CDE “Orange Drop” Cap

  • Tolerance: -/+10%

  • Values:

    • Single Coil: 0.047uf

    • HS: 0.022uf

    • Humbucker: 0.022uf

Neutrik Rean mono jack

  • Required mounting hole diameter: 3/8" (9.53mm)

  • Thread: 3/8 x 32Thread height:1/4" (6.35mm)

Requirements (Must Read)

  1. Switching from an Import pot to a US Spec pot like CTS or Bourns will require you to have 3/8th pot holes on your Pickguard
  2. When Choosing CTS pots, you will need a 1/4th diameter knob. The Import 6mm found of most imports, MIM, and MIJ guitar will not fit.
  3. Bourns features a 6mm solid shaft choosing this version will require an import style screw in knob

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!
