Gunstreet Stratocaster Wiring Harness - Classic 5 Way

Sale price$99.95

Our kits are a perfect drop-in replacement for your Stratocaster style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

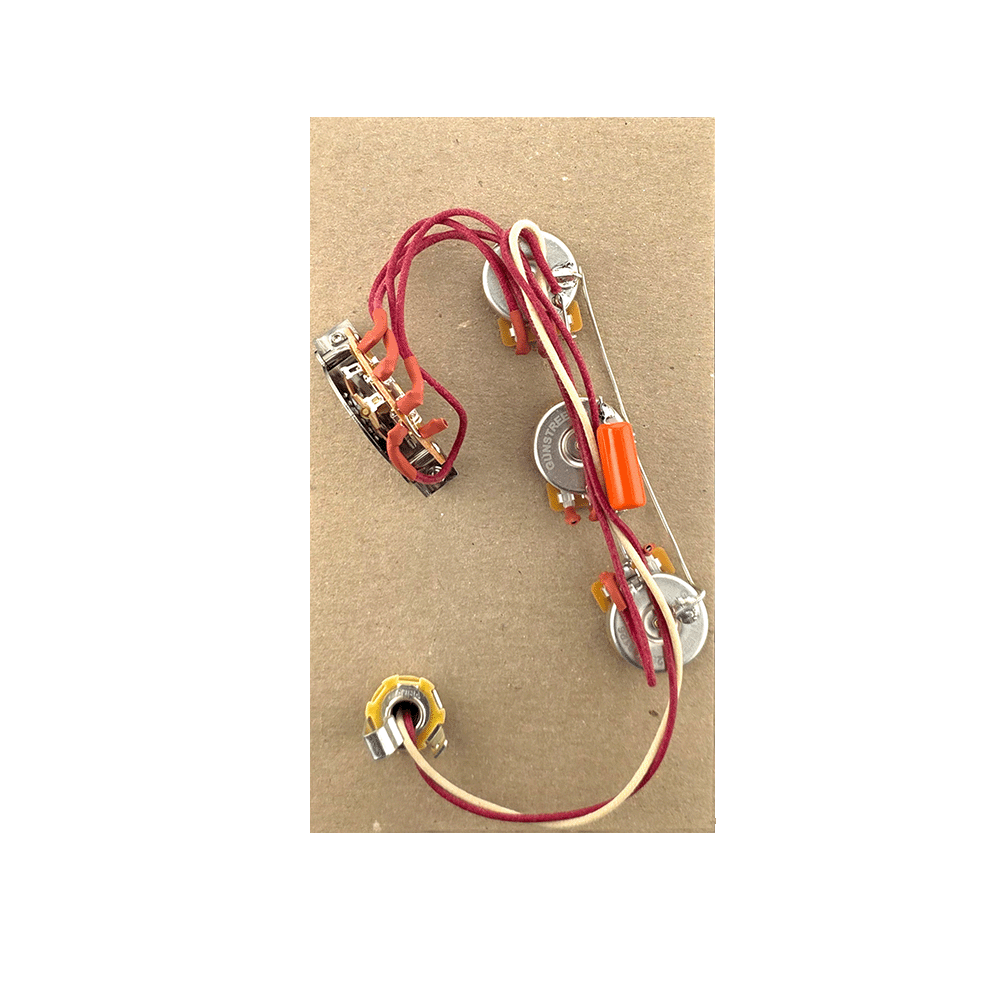

  1. Red 50’s Wiring (Vintage High Pass Filter) This wiring was found in the first gen of electric guitars. It features a transparent sound as you roll off the volume at the cost of a steep volume taper and an on/off tone control that interacts a lot with your volume position

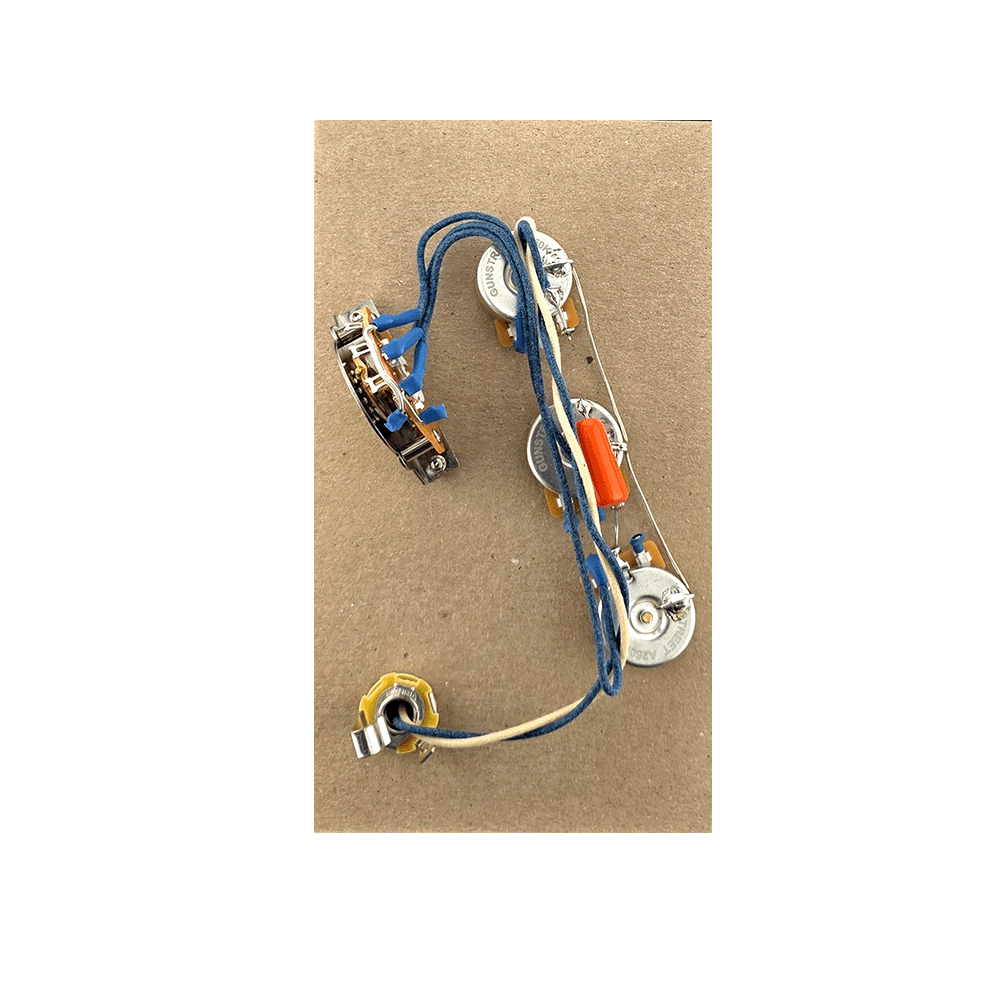

  2. Blue Modern Wiring: (Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.

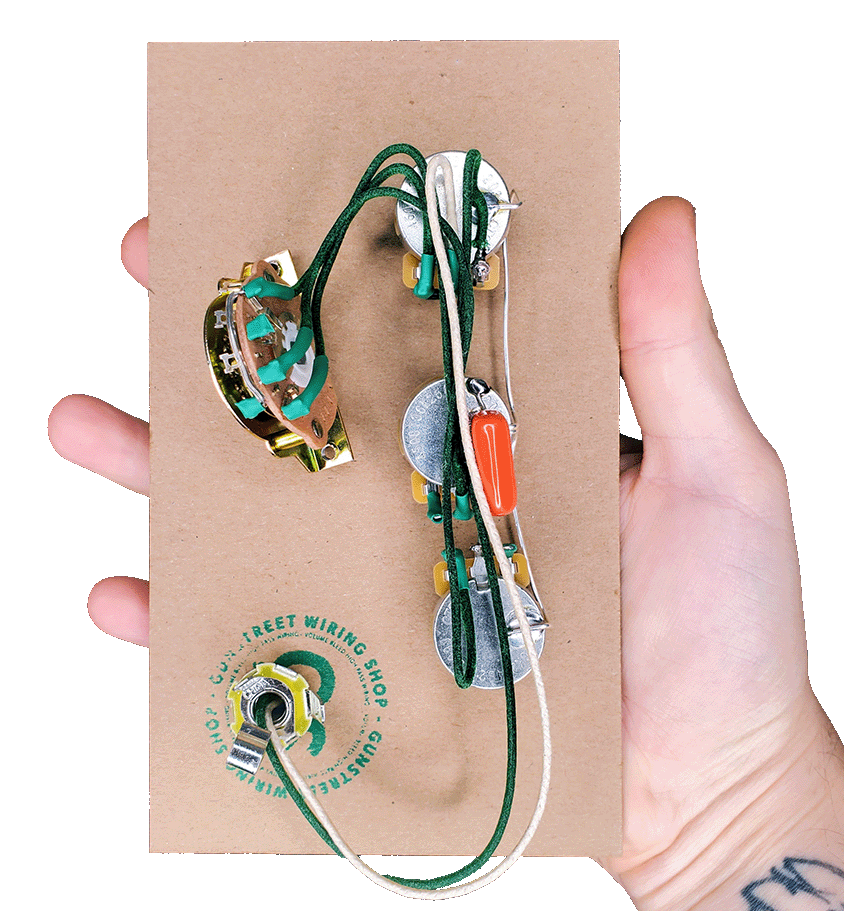

  3. Green Treble Bleed (Modern High pass Filter) Often called a “Volume bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.

Classic 5 way switch layout

  1. Bridge
  2. Bridge/Middle
  3. Middle
  4. Middle/Neck
  5. Neck

Control Layout: Master Volume, Neck Tone Control, Bridge/Middle Tone control (Standard no tone on pos 1)

Parts info

Oak 5 Way Switch Specs

  • Body cavity depth 1-3/8th" (34.93mm)

  • Mounting Screw Spacng1 5/8" (41.28mm)

  • Lever Stem (0.50x.190)

DHE "Gunstreet" Pots

  • Taper style: Custom Audio

  • .Shaft Diameter: 3/8” (9.52MM)

  • Shaft Length: 3/8th (9.52MM )

  • Knob Pattern: 18 tooth Coarse knurled

  • Nut thread: 3/8 x 32

  • Value: 250k -/+ 20%

Capacitor Specs

  • Brand: CDE

  • Model: "Orange Drop"

  • Value .047uF

Rean Output Jack Specs

  • Mounting hole diameter 3/8" (9.52mm)

  • Thread 3/8 x 32

  • Threaded portion height 1/4" (6.35mm)


  • Switching from an Import pot to our US Spec pot will require you to have 3/8th pot holes on your pickguard
  • Choosing our kits will require an 18th tooth "Coarse" Knurled knob
  • Some cheap Import guitar cavities are designed for Mini 12mm pots. To install a 24mm Fullsized pot may require routing out some of the cavity
  • HSS strats. Most manufactures recommend 250k to keep their "Brand Sound" so our standard set up will work for your layout

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item is it free of any hum, crackles, or pops!

Filter Circuit:
Gunstreet Stratocaster Wiring Harness - Classic 5 Way CTS / 50s
