Gunstreet P Bass Hand-Wired Wiring Harness

Name: Gunstreet P Bass Hand-Wired Wiring Harness
Brand: Gunstreet
SKU: GSWH-PB-C-5
Price: 72.95 USD
Availability: InStock
Rating: 5.0 (7 reviews)

$72.95

Our kits are a perfect drop-in replacement for your P style bass guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

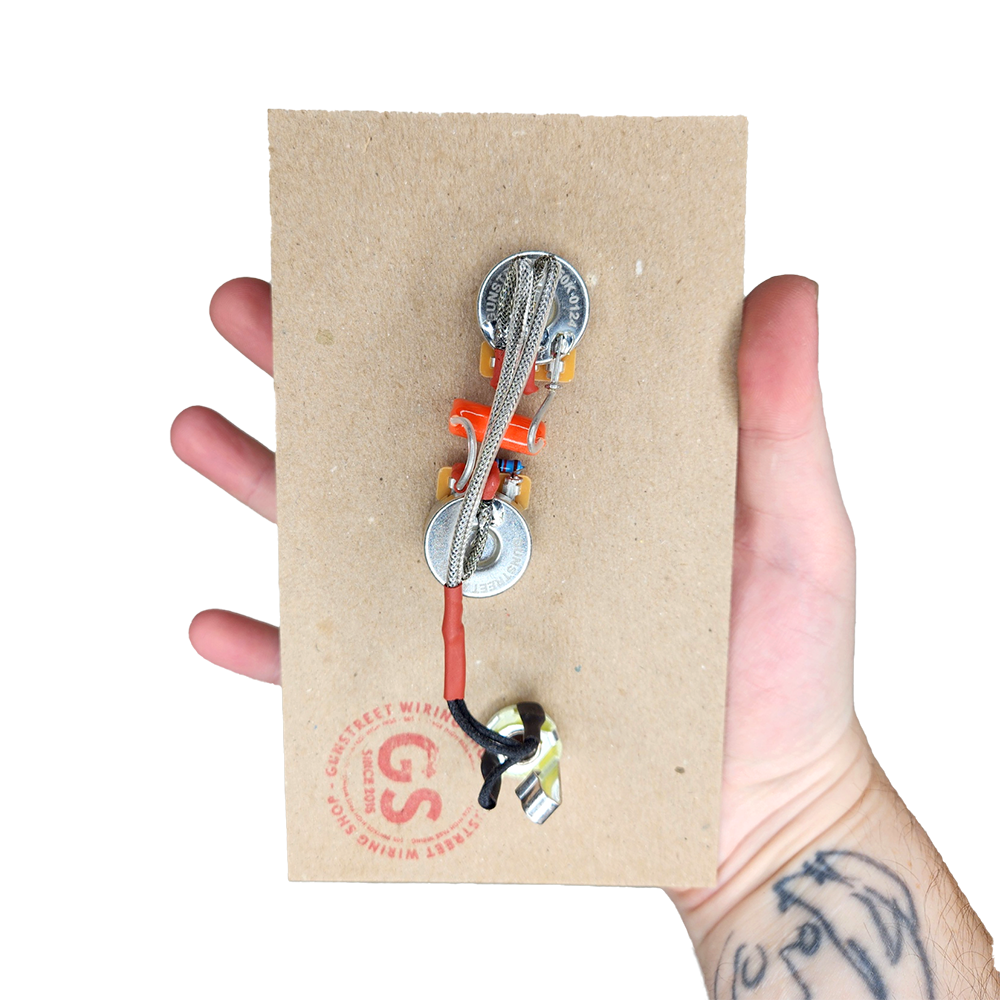

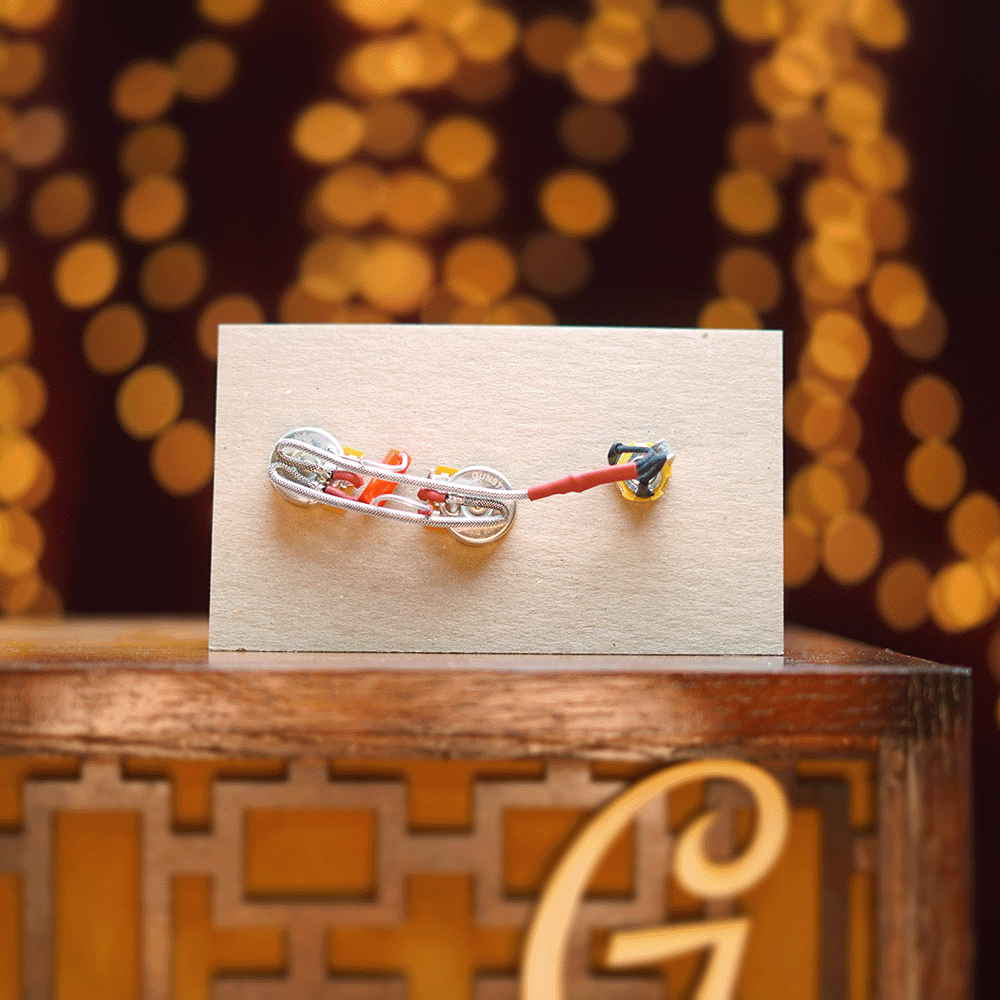

Red 50’s Wiring (Vintage High Pass Filter) This wiring was found in the first gen of electric guitars. It features a transparent sound as you roll off the volume at the cost of a steep volume taper and an on/off tone control that interacts a lot with your volume position

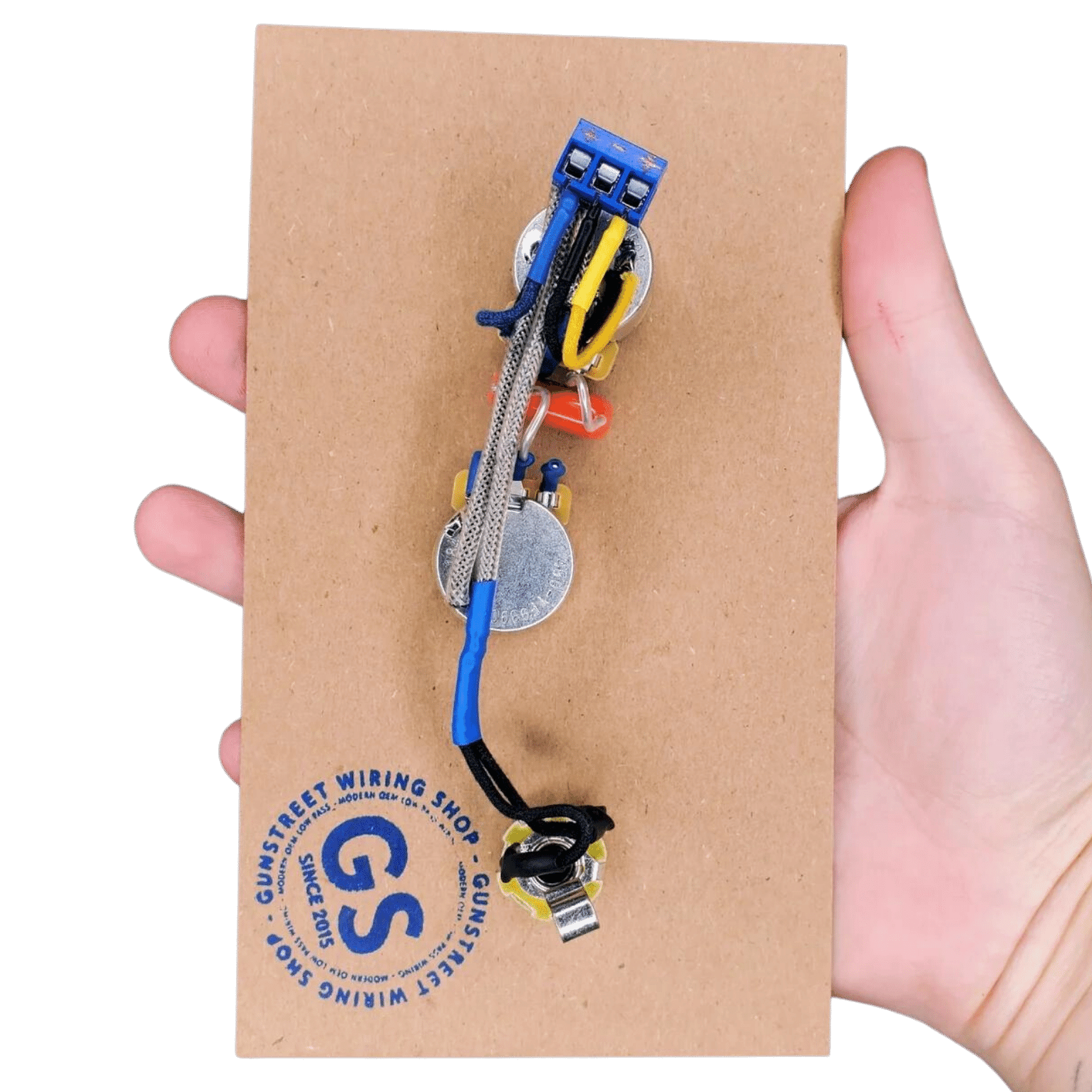

Blue Modern Wiring: (Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.

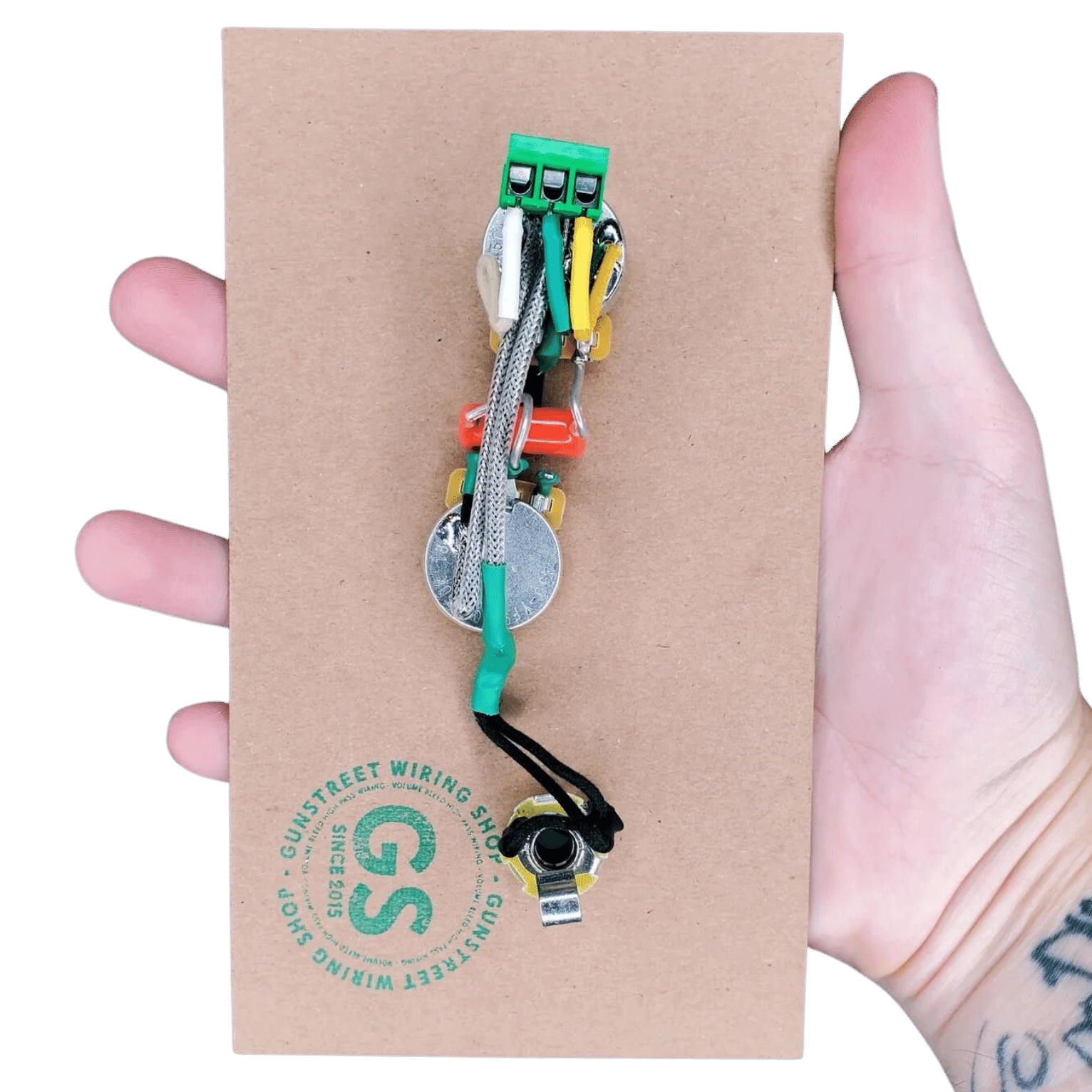

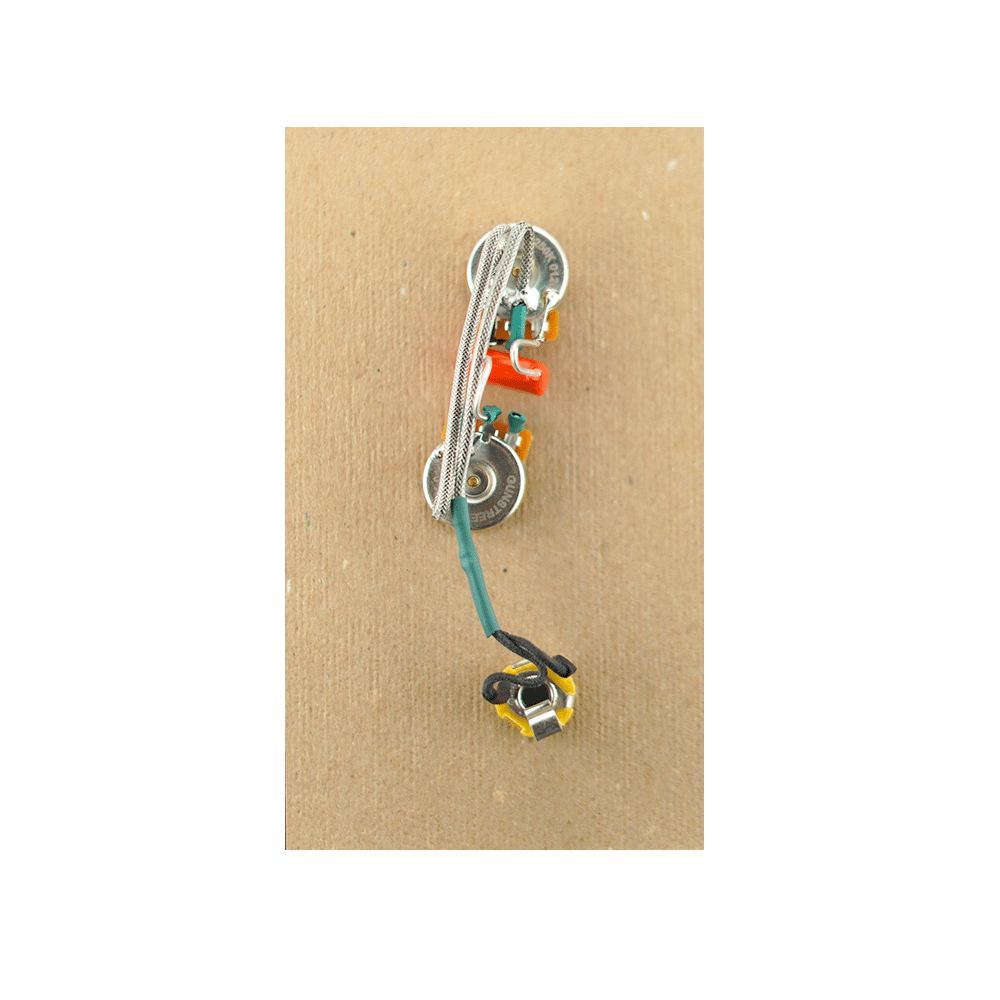

Green Treble Bleed (Modern High pass Filter) Often called a “Volume bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.

Soldering Required VS Solderless Options

Note that the solderless option on this kit converts our hand-wired kit to be solderless. If you are looking to get our PCB-based solderless kit with the VVC Circuit, click here

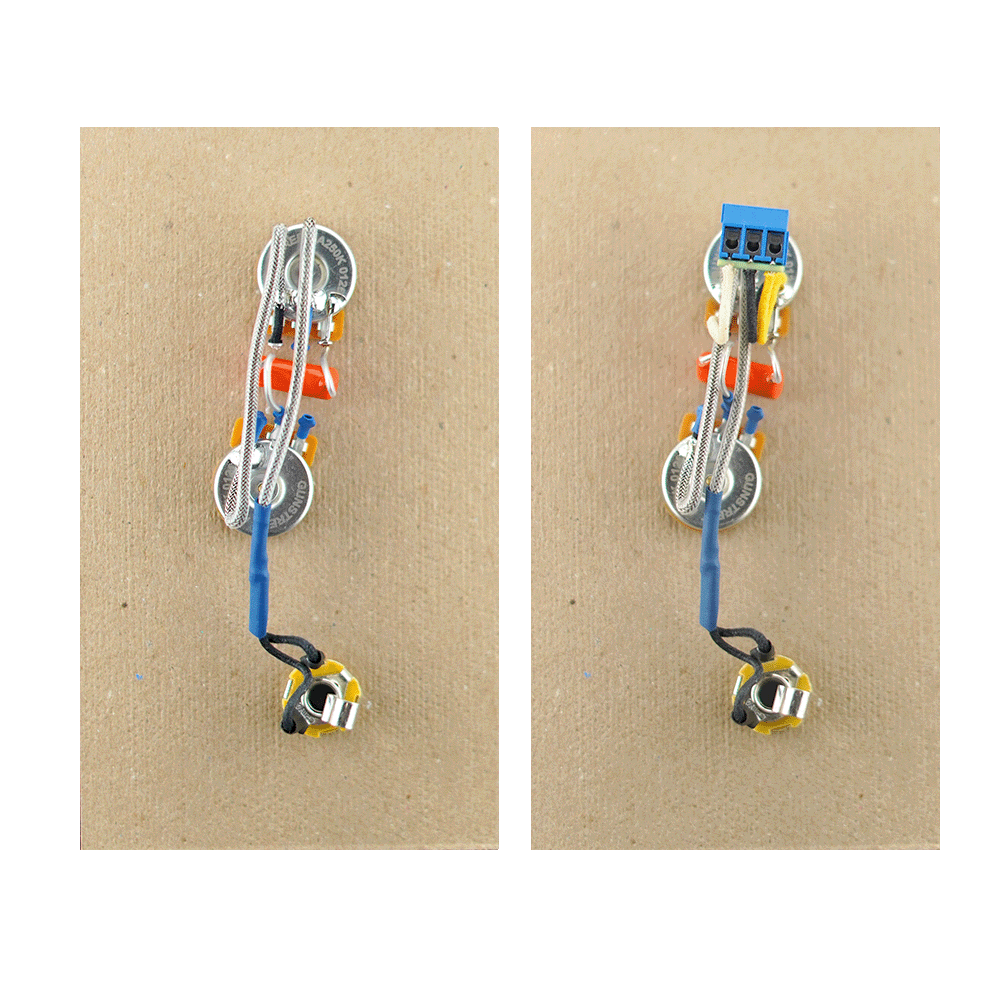

Soldering Required: Left Kit Pre-made kit where you have to solder the pickups and tailpiece ground
Solderless: Right Kit Pre-made kit where you screw in the pickup wires and tailpiece ground

Parts Info

DHE "Gunstreet" Pots

Taper Style: Custom Audio
Shaft Diameter: 3/8” (9.52MM)
Shaft Length: 3/8^th(9.52MM )
Knob Pattern: Solid Metal Shaft 1/4th (6.35mm)
Nut thread: 3/8 x 32
Value: 250k -/+ 15%

Capacitor

Brand: CDE “Orange Drop” Cap
Value: 0.047uf -/+10%

Output Jack

Brand: Rean
Diameter: 3/8th” (9.52mm)
Thread Length: 1/4th” (6.35mm)

Requirements (Must Read)

Converting an non-US made Bass

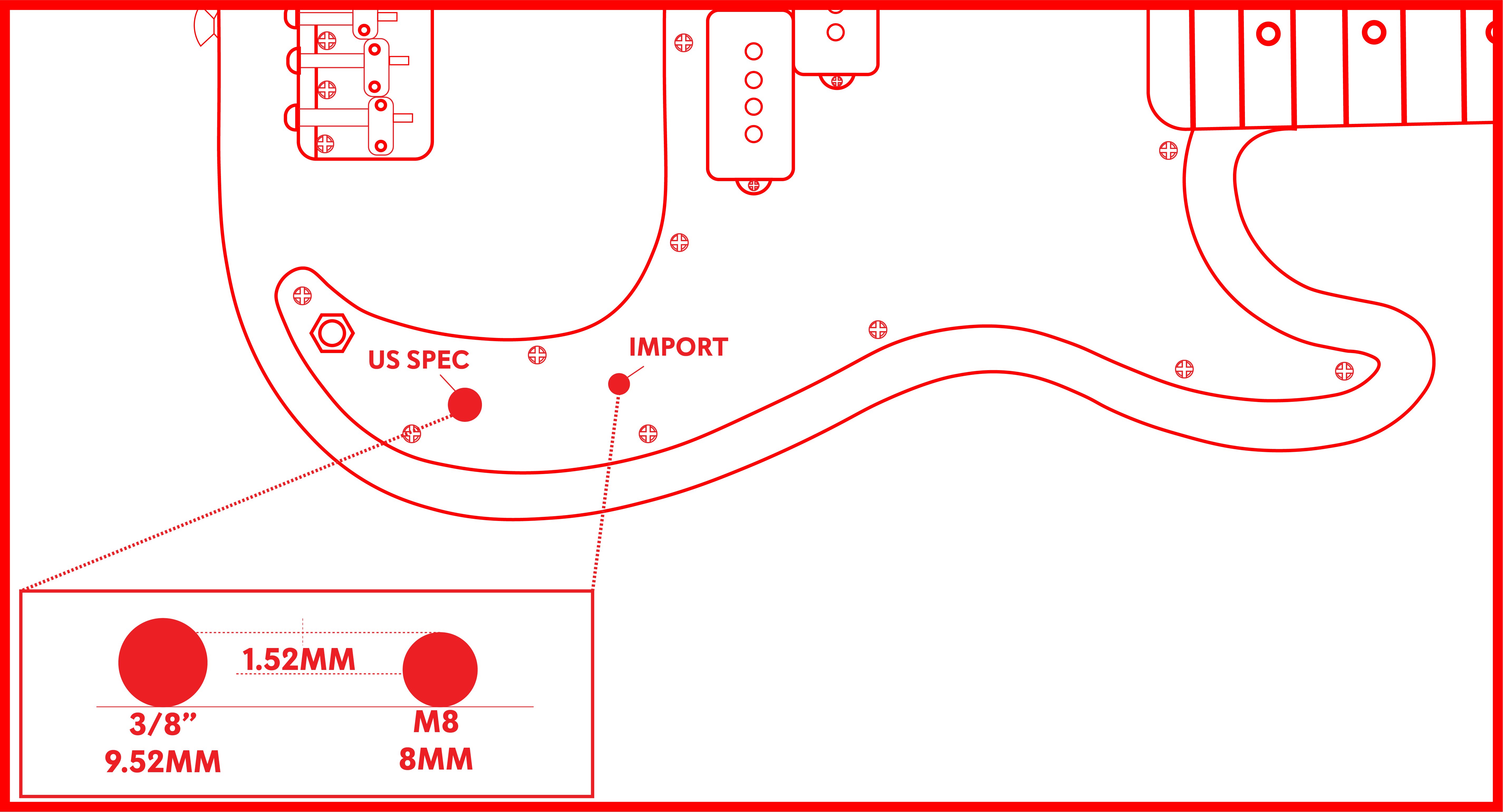

When transitioning from an import pot to one of our US Spec pots, you will need to enlarge the existing 8mm mounting hole to 3/8" (9.52mm).
You will need a 1/4th diameter knob. The Import 6mm found of most imports, MIM, and MIJ guitar will not fit.

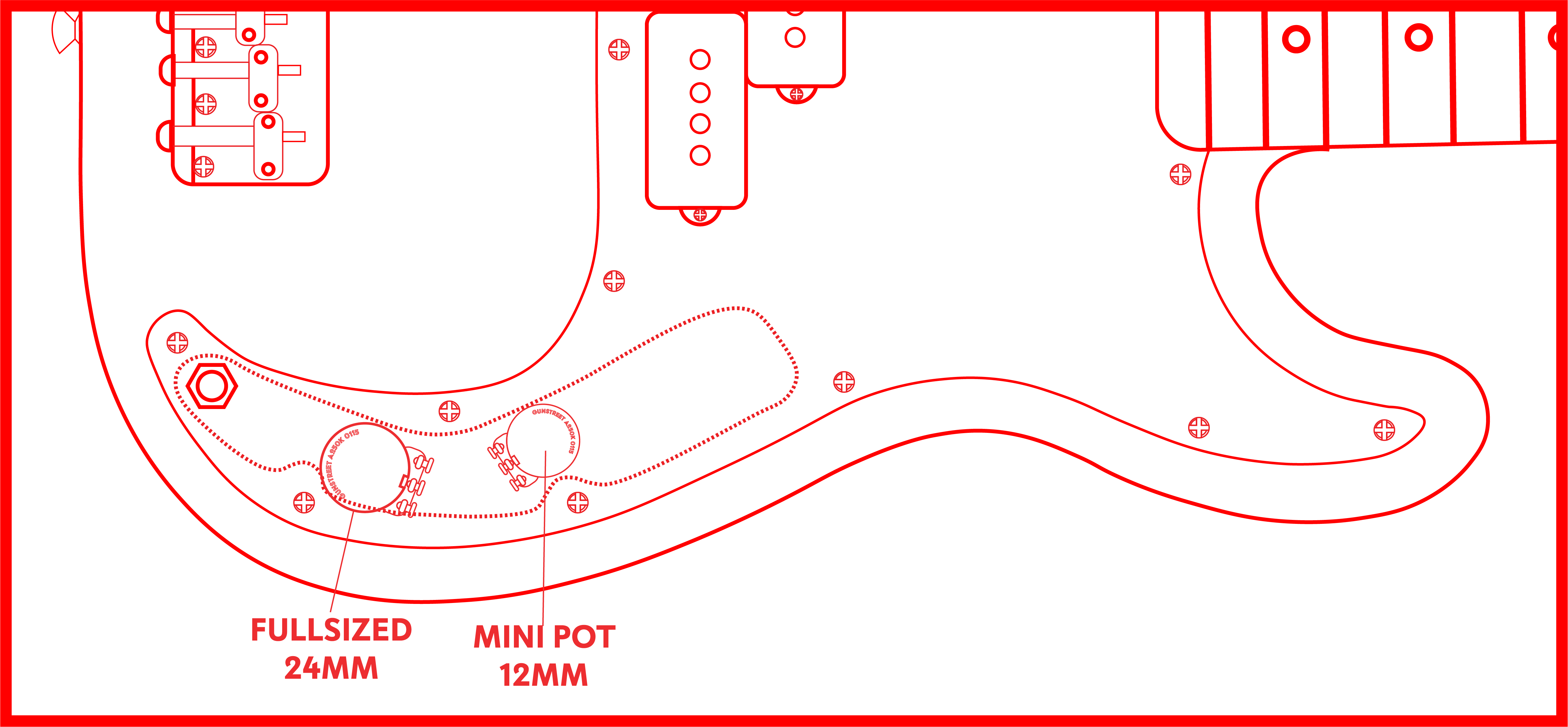

Some Basses cavities are designed for Mini 12mm pots. To install a 24mm Fullsized pot may require routing out some of the cavity

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!

Instructions

Filter Circuit:

50s Modern Treble Bleed

Options:

Soldering Required Solderless
