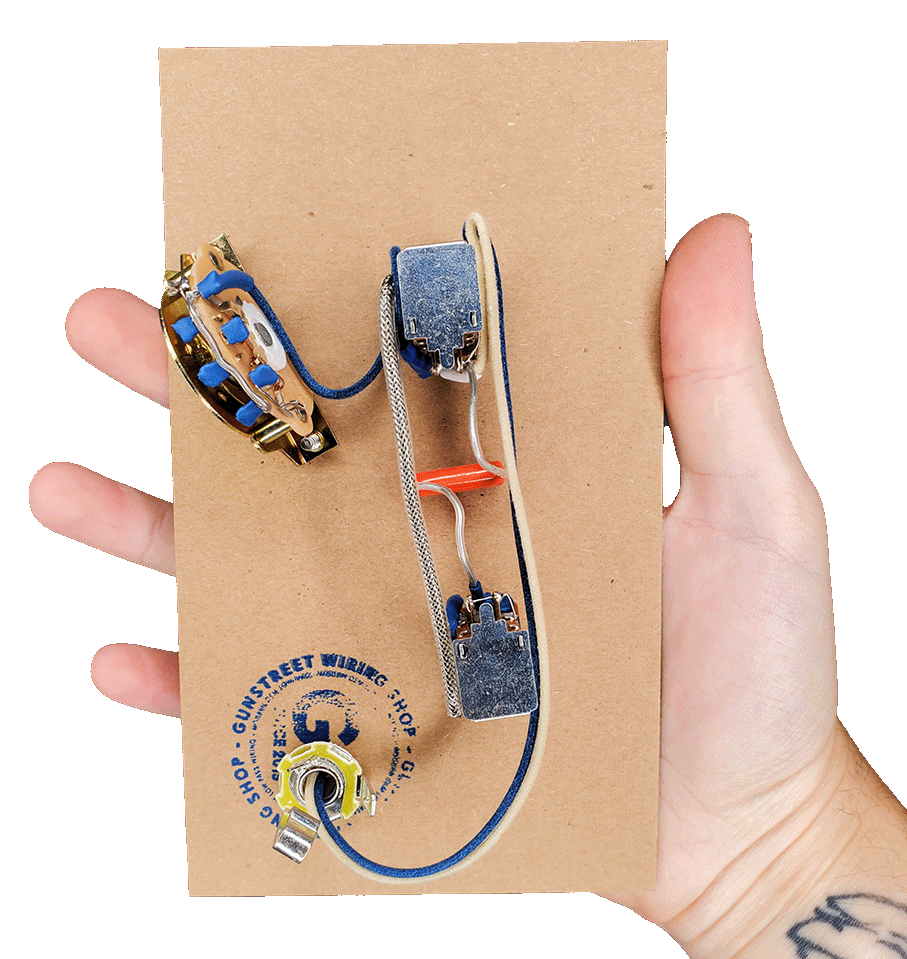

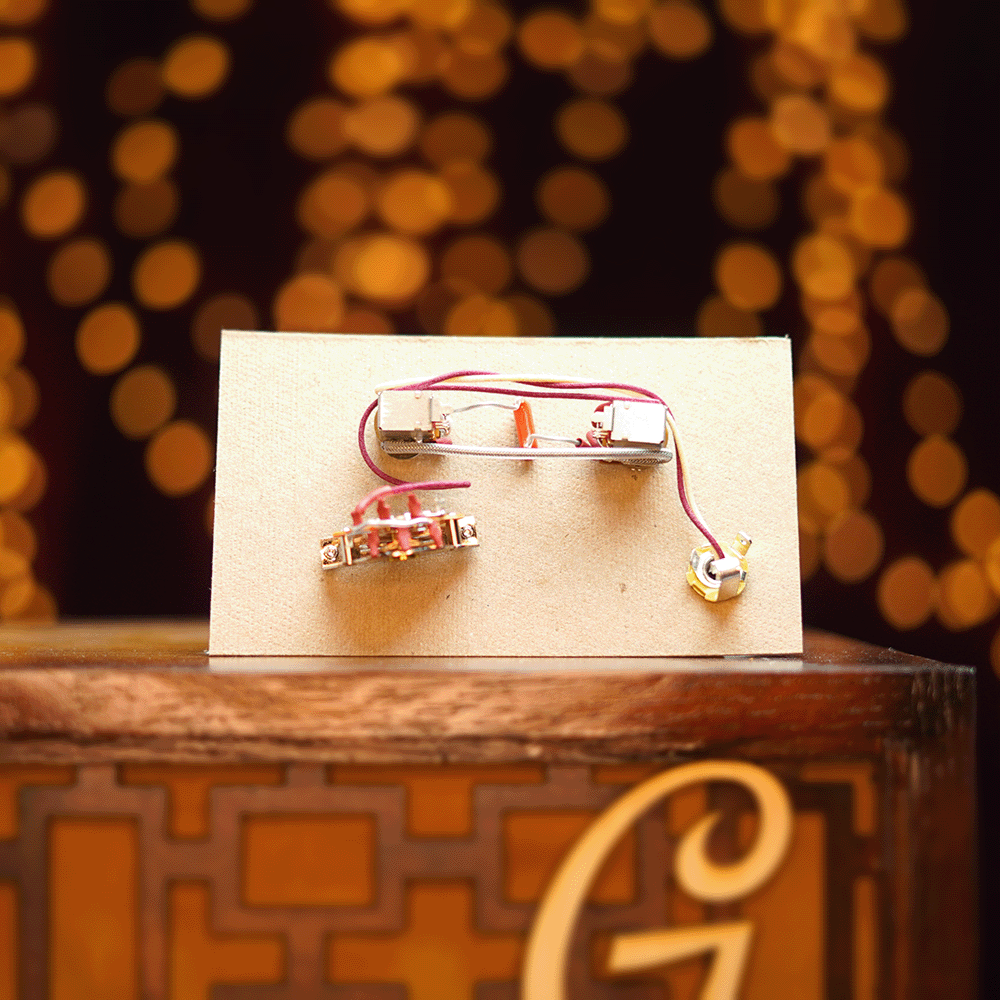

Gunstreet Ibanez Wiring Harness - 3 Way - Coil Cutting

Sale price$99.95

Our kits are a perfect drop-in replacement for your Ibanez RG style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

Filter circuit Options:

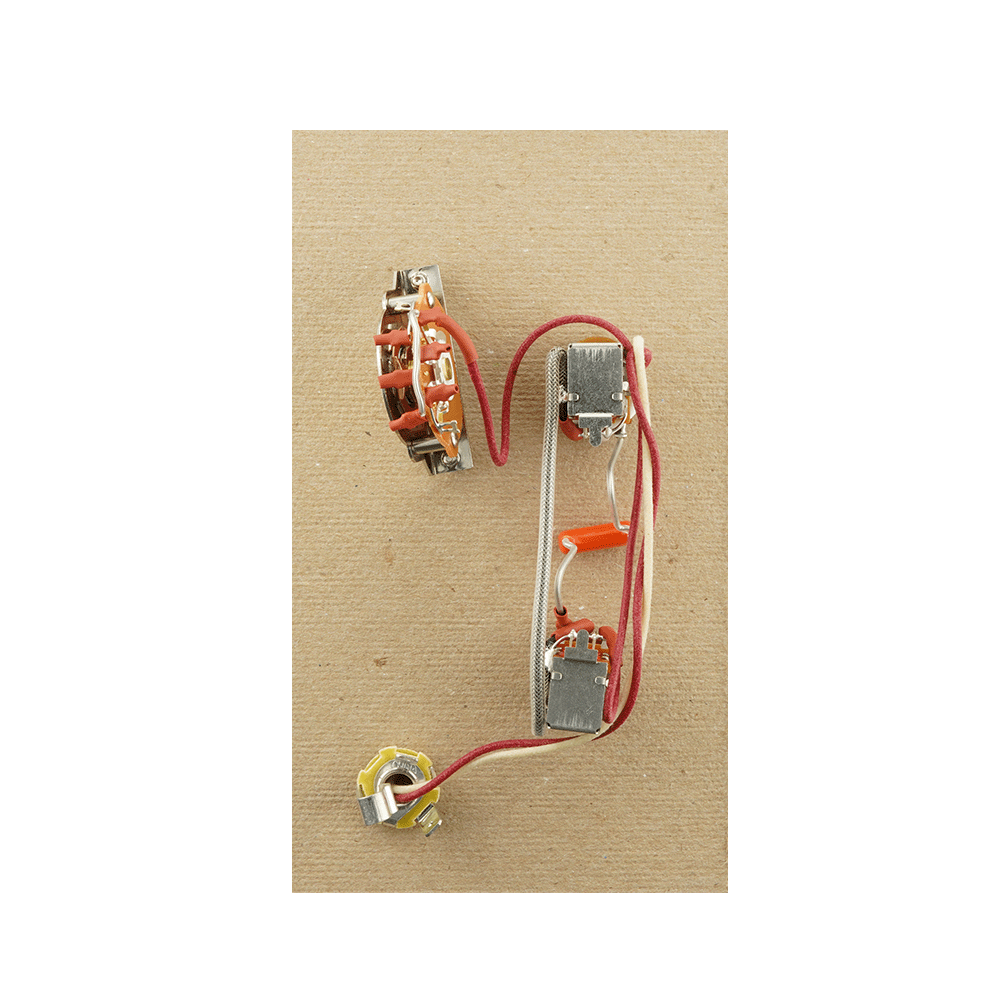

  1. Red -50’s Wiring(Vintage High Pass Filter) This wiring was found in the first gen of electric guitars. It features a transparent sound as you roll off the volume at the cost of a steep volume taper and an on/off tone control

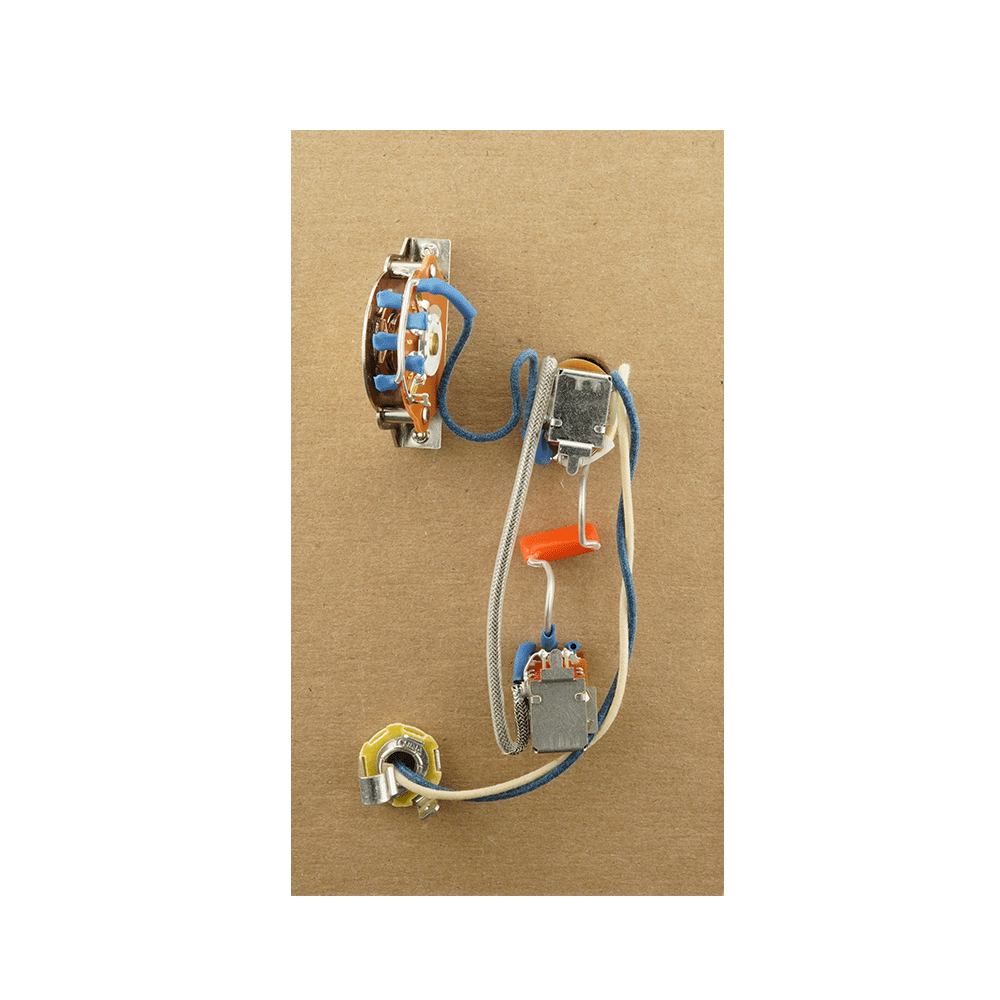

  2. Blue- Modern Wiring: (Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.

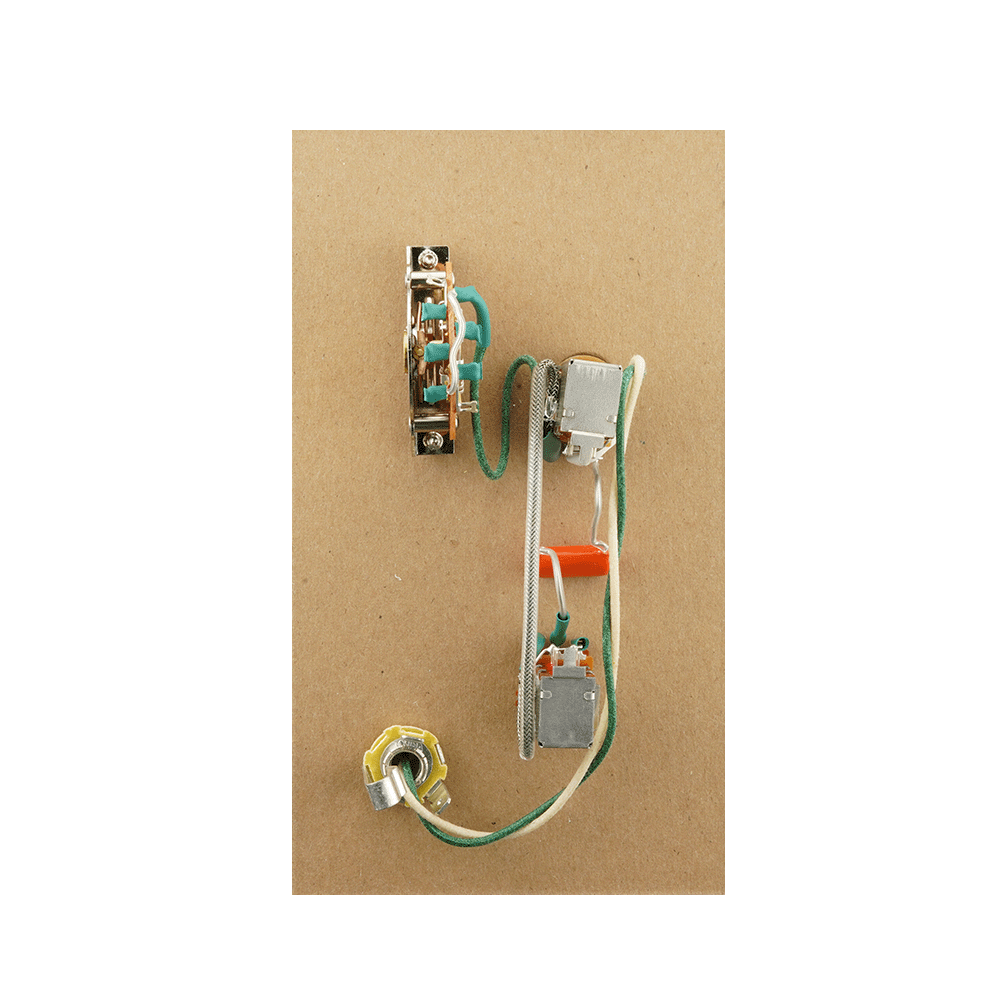

  3. Green-Treble Bleed (Modern High pass Filter) Often called a “Volume bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.

Secondary Circuit: Coil Cutting: Often called by many names like coil splitting, or tapping. This secondary wiring style cancels out the humcanceling properties of a humbucker by grounding a coil and changing it to a single coil.

Switch Layout

  1. Bridge Only
  2. Bridge-Neck
  3. Neck Only

Main controls layout

  1. Master Volume - Neck Coil Cut
    1. Push Pull down - Neck Humbucker
    2. Push Pull Up - Neck Single Coil
  2. Master Tone - Bridge Coil Cut
    1. Push Pull down - Bridge Humbucker
    2. Push Pull Up - Bridge Single Coil

Part Info

Oak Switch Specs

  • Body cavity depth 1-3/8th" (34.93mm)

  • Mounting Screw Spacng1 5/8" (41.28mm)

  • Lever Stem (0.50x.190)


  • Shaft Diameter: 6MM

  • Taper Style: Audio

  • Shaft Length: 9.52MM (3/8th)

  • Knob Pattern: 18 tooth Coarse

  • Nut thread: M8 x 0.75


  • Taper Style: Audio

  • Shaft Diameter: 3/8” (9.52MM)

  • Shaft Length: 3/8th (9.52MM )

  • Knob Pattern: 18 toothCoarse

  • Nut thread: 3/8 x 32

Capacitor Specs

  • Brand: CDE

  • Model: "Orange Drop"

  • Value .047uF

Rean Output Jack Specs

  • Mounting hole diameter 3/8" (9.52mm)

  • Thread 3/8 x 32

  • Threaded portion height 1/4" (6.35mm)

Requirements (Must Read)

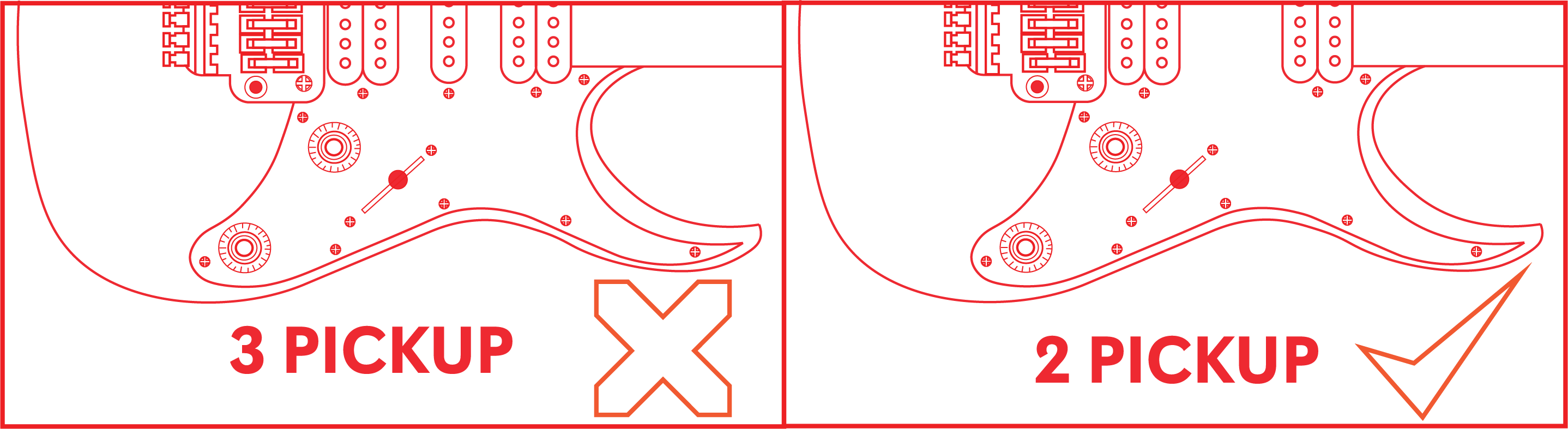

  • This Kit Requires that you have 4 conductor pickup wires- Learn more about pickup wires.
  • Switching from an Import pot to a US Spec pot like Bourns will require you to have 3/8th pot holes on your pickguard or Body
  • When Choosing Bourns pots, you will need a 18 tooth "Coarse" Pattern knob.

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item it is free of any hums, crackles, or pops!


How to install a 50s, Modern, or Volume Bleed Wiring harness in your Ibanez Style Guitar
