Gunstreet Jazz Bass Wiring Harness - Classic

Sale price$63.95

Our kits are a perfect drop-in replacement for your Jazz style Bass guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

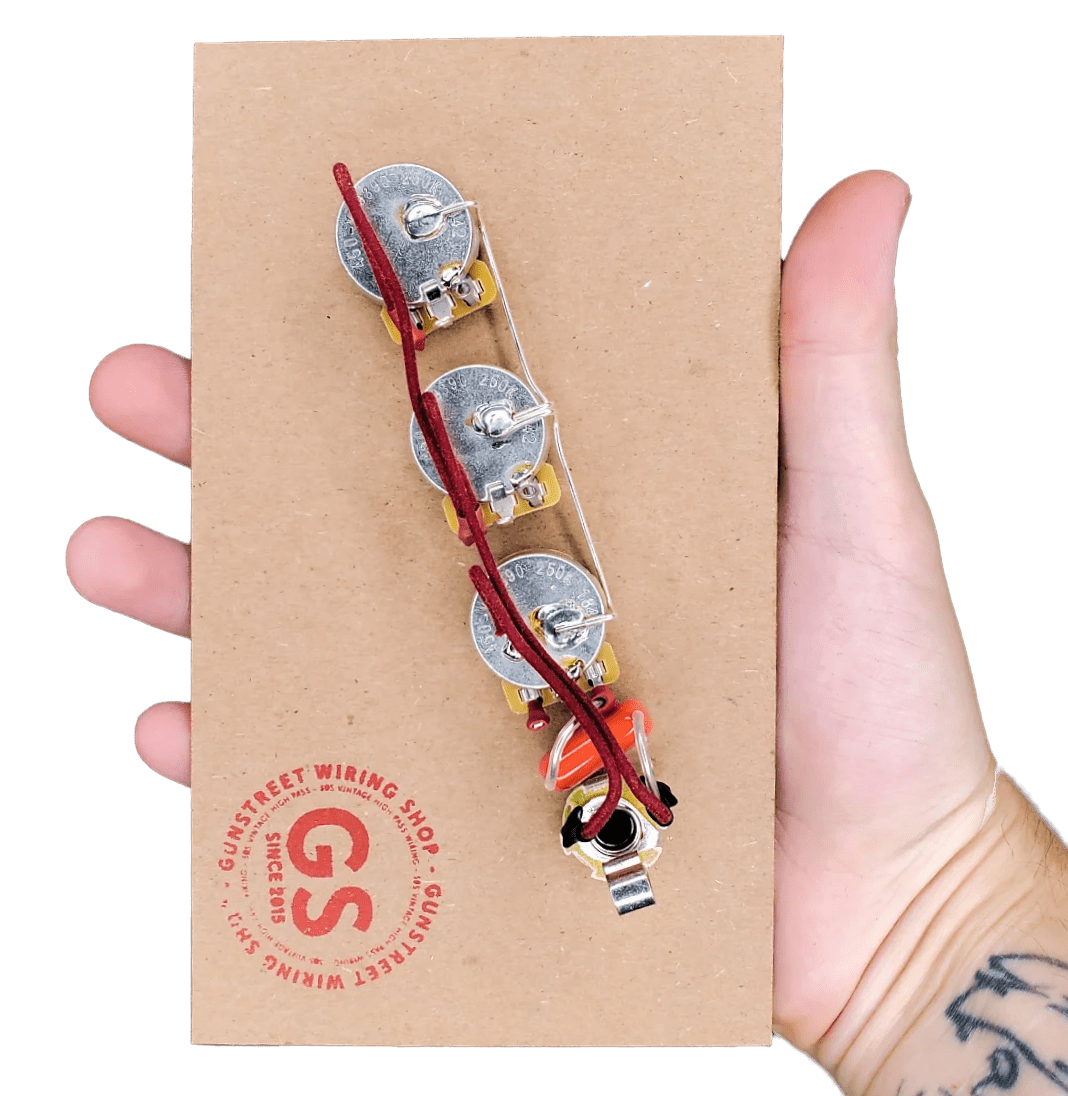

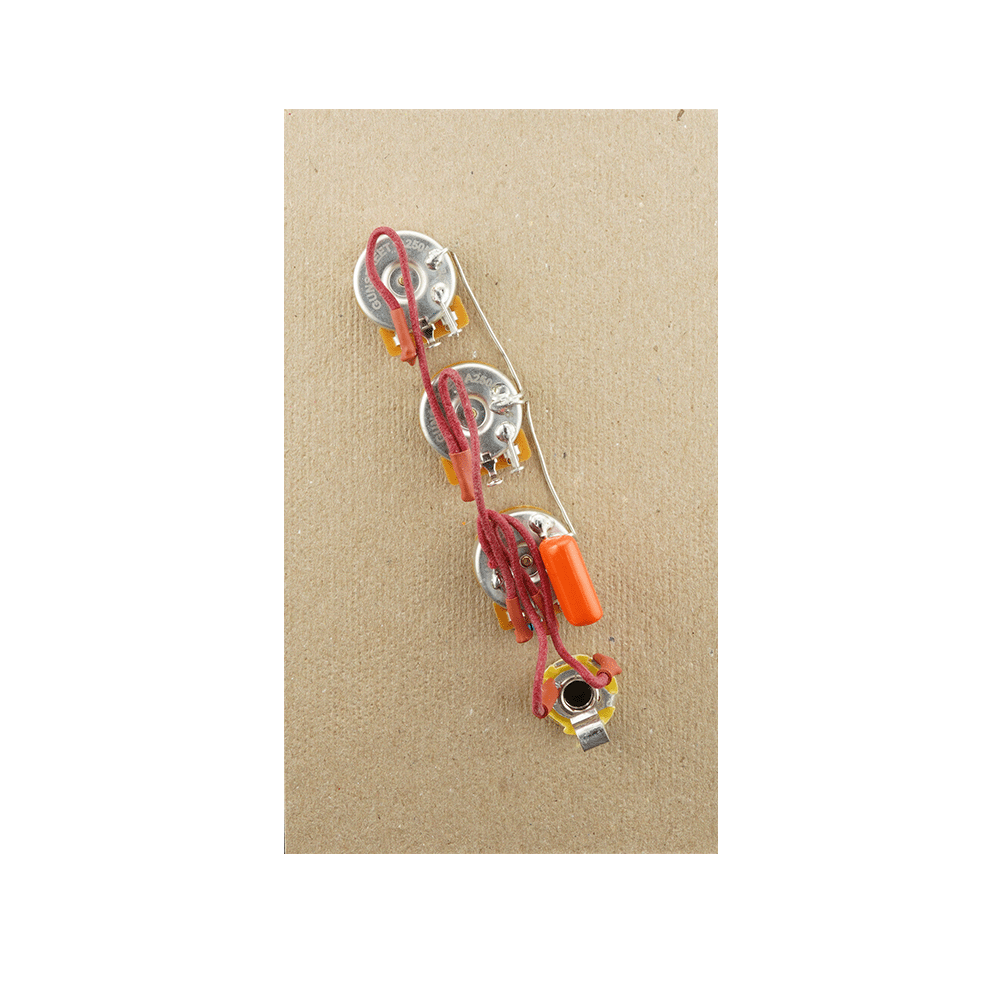

  1. Red 50’s Wiring (Vintage High Pass Filter) This wiring was found in the first gen of electric guitars. It features a transparent sound as you roll off the volume at the cost of a steep volume taper and an on/off tone control that interacts a lot with your volume position

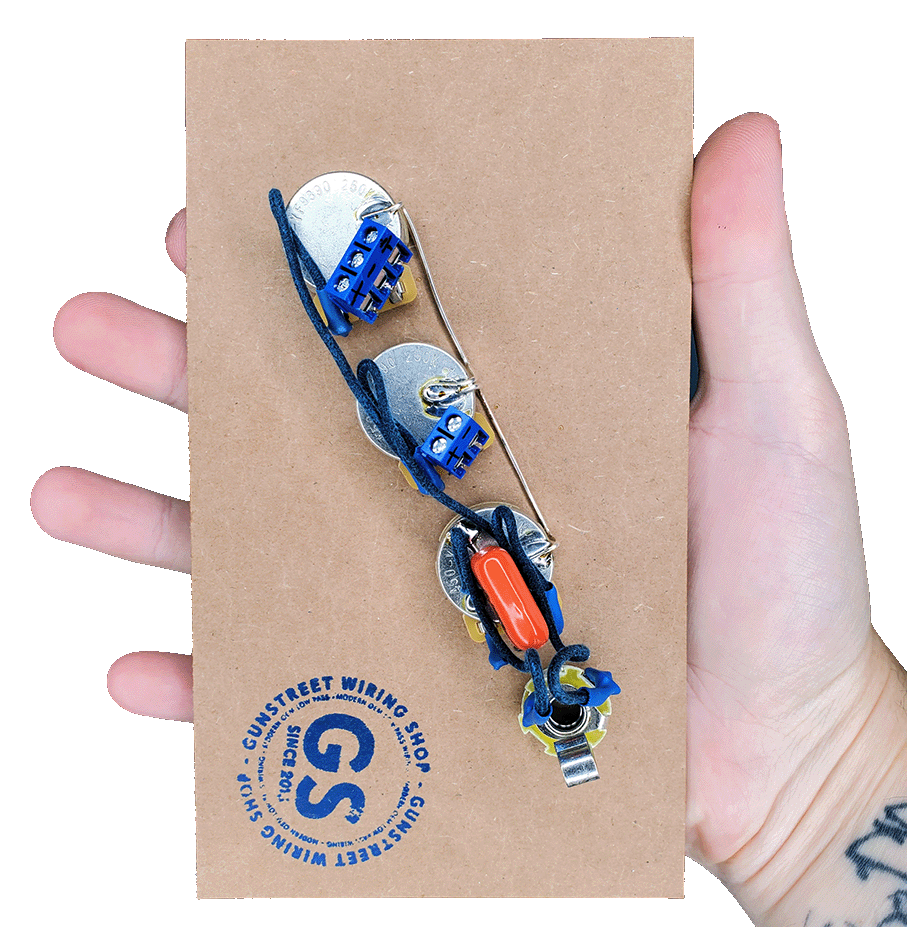

  2. Blue Modern Wiring: (Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.

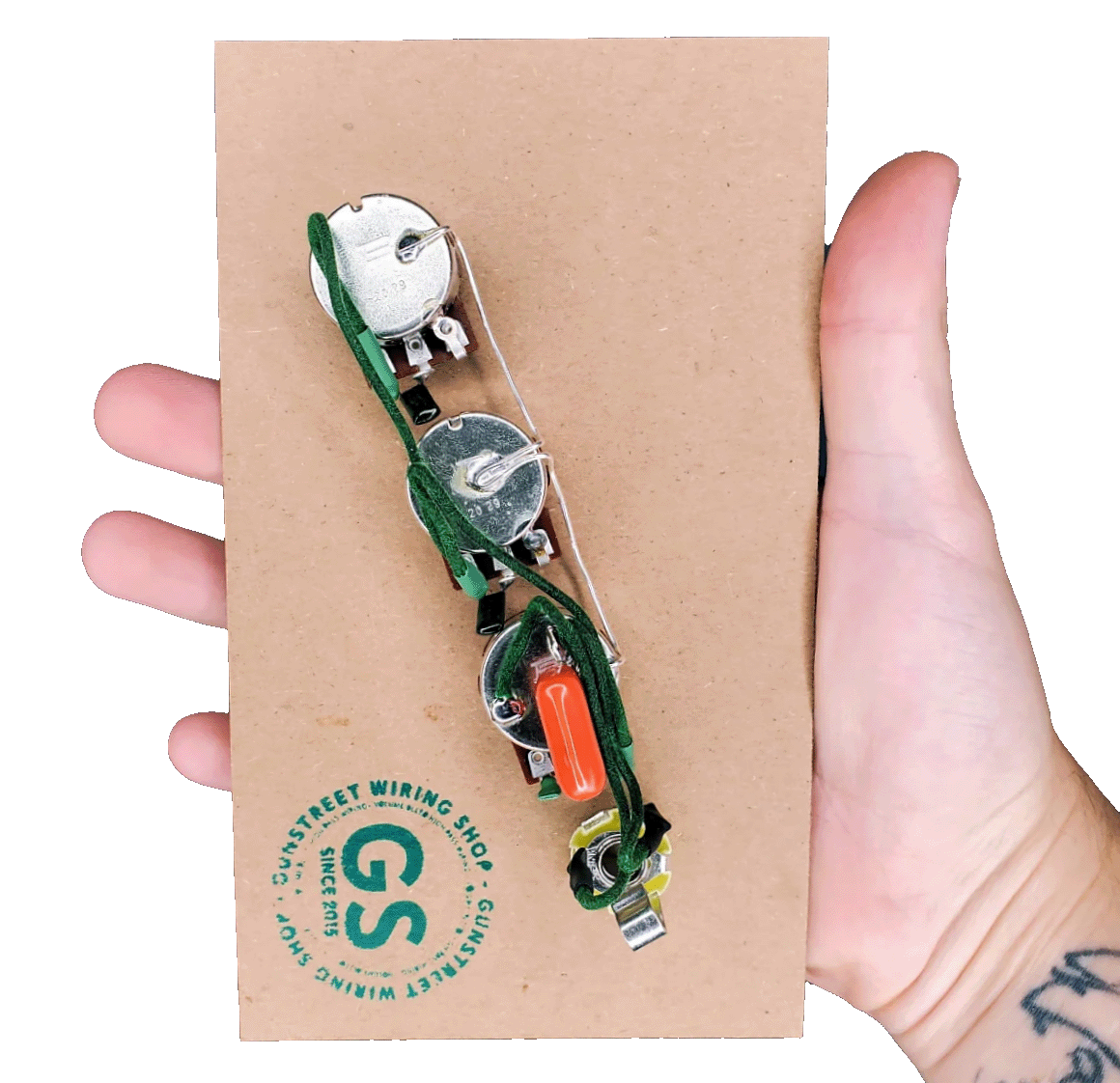

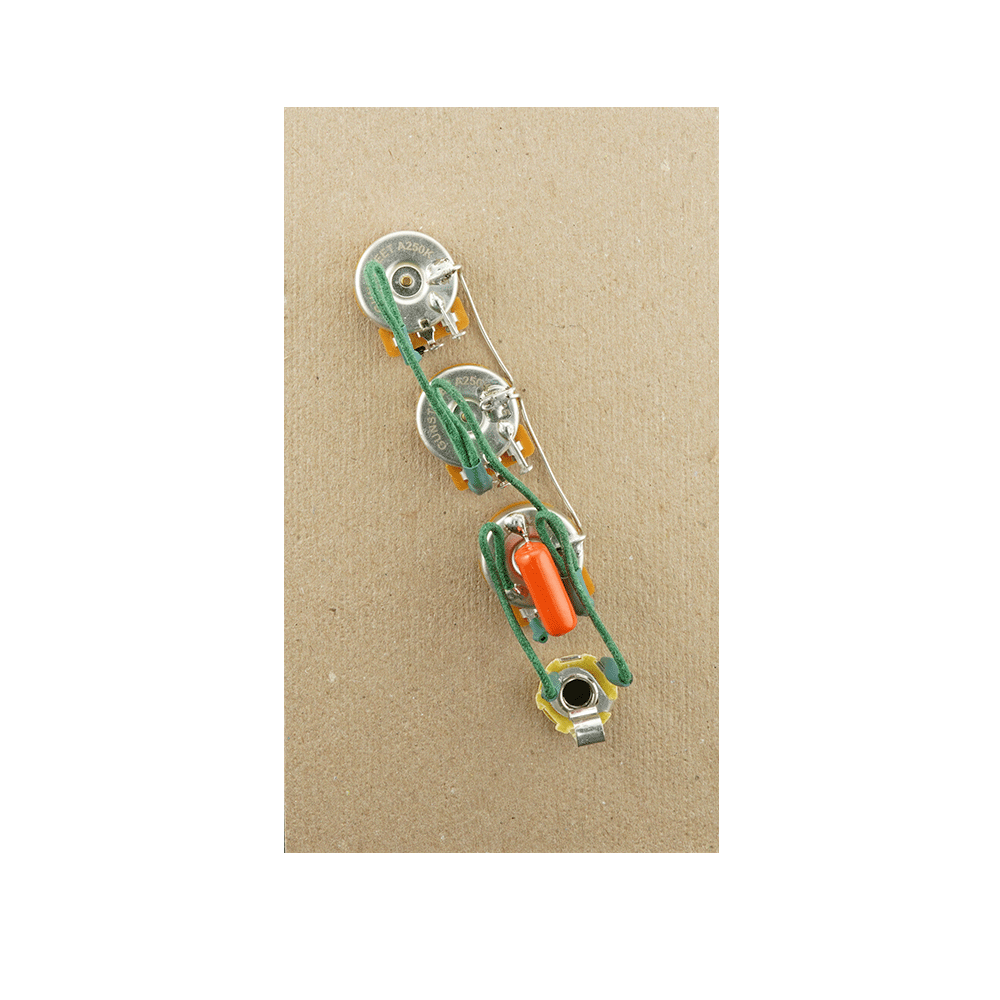

  3. Green Treble Bleed (Modern High pass Filter) Often called a “Volume bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.

Part Info

Our new Custom Gunstreet Pots

  • Value: 250k -/+ 15%
  • Taper Style: Custom Audio
  • Shaft Style: Solid Metal Shaft 1/4th” (6.35mm)
  • Thread Height: 3/8th” (9.52mm)
  • Shaft Diameter: 3/8th (9.52mm)
  • Thread:3/8 x 35

Capacitor

  • Brand: CDE “Orange Drop” Cap
  • Value: 0.047uf -/+10%

Output Jack

  • Brand: Rean
  • Diameter: 3/8th” (9.52mm)
  • Thread Length: 1/4th” (6.35mm)

Requirements (Must Read)

  1. Switching from an Import pot to a US Spec pot like our pot will require you to have 3/8th pot holes on your pickguard
  2. Our Pots feature a US spec 1/4th diameter Shaft. They require a 1/4th diameter set screw knobs. The Import 6mm found of most imports, MIM, and MIJ guitar will not fit.
  3. Some Basses cavities are designed for Mini 12mm pots. To install a 24mm Fullsized pot may require routing out some of the cavity

Our gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!

Filter Circuit:
