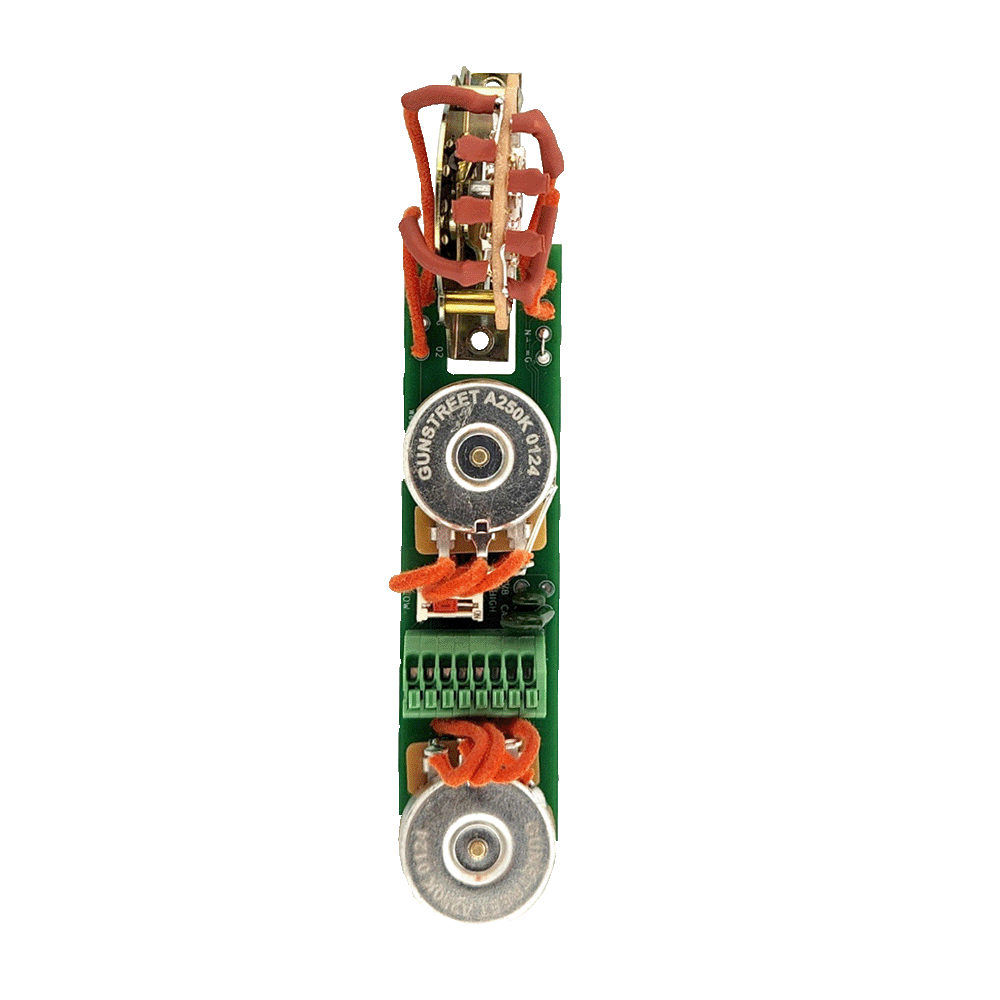

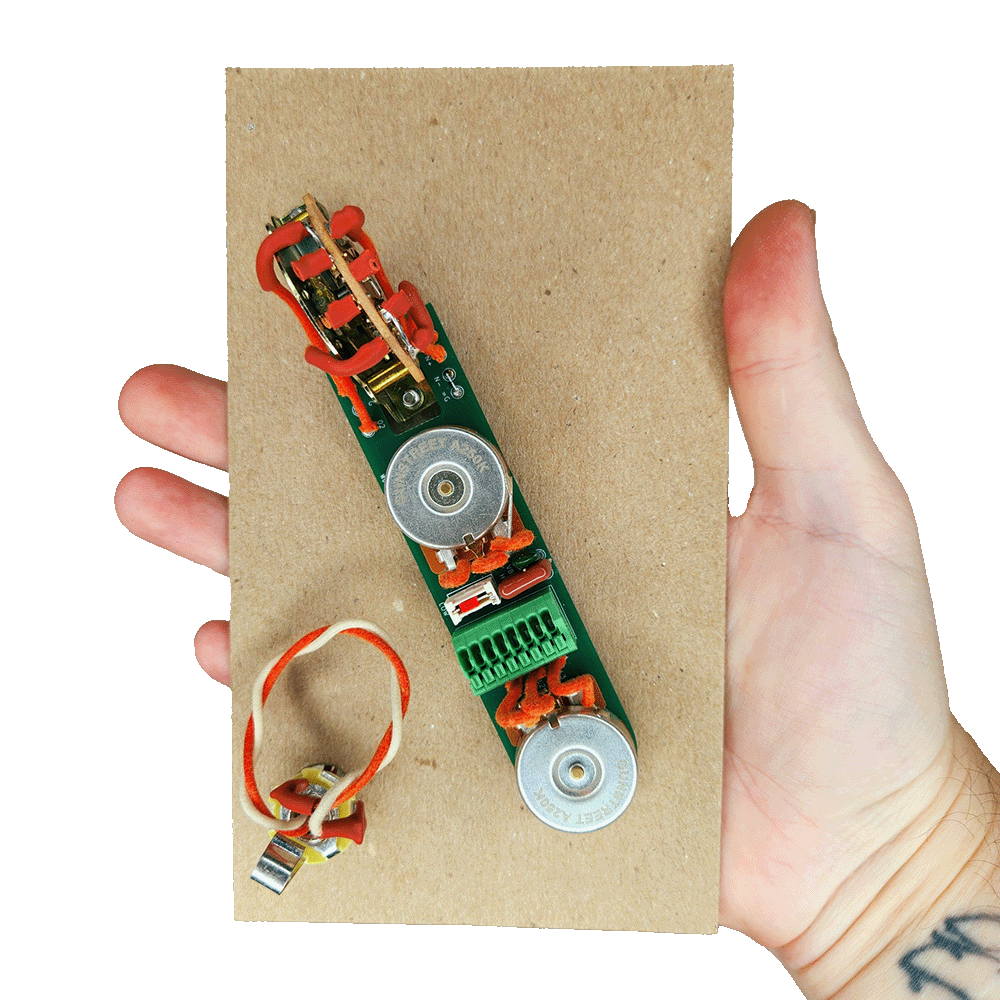

Gunstreet Telecaster Solderless Classic 3 way Wiring Harness

Name: Gunstreet Telecaster Solderless Classic 3 way Wiring Harness
Brand: Gunstreet
SKU: GSWH-SL-TELEC-C3W
Price: 109.95 USD
Availability: InStock
Rating: 5.0 (2 reviews)

$109.95

Do you have Scratchy pots, Dead spots, or controls that just feel in nice terms REALY WEIRD? Enter the all new Gunstreet Solderless Wiring System!

This premium solderless harness not only enhances your sound quality with top-notch components, it also improves the feel, performance, and response of your instrument. You will also get to enjoy the switchable flexibility of two distinct Volume Voicing Options, giving you total control over your instrument's sonic character.

Thanks to the rock-solid solderless design the hard part is already handled! The Gunstreet Solderless harnesses feature a unique adjustable design that fits more instruments than others offering a similar setup and creates for a rapid hassle-free installation. This means you can get back to those sick riffs as quickly as possible!

Whether you realize it or not, your instrument's electronics are a massive part of your playing experience, and now there is no reason you can't experience the best. Upgrade your tone today and experience the difference.

Part Info

DHE Custom Gunstreet Pots

Value: 250k -/+ 15%
Taper Style: Custom Audio
Knob Shaft Style: Solid Metal Shaft 1/4th” (6.35mm)
Thread Height: 3/8th (9.52mm)
Shaft Diameter: 3/8th (9.52mm)
Shaft Threading:3/8 x 35

Capacitor

Brand: Vishay
Values: 0.047uf -/+10%

Output Jack

Brand: Rean
Diameter: 3/8th” (9.52mm)
Thread Length: 1/4th” (6.35mm)

Oak Switch Specs

Body cavity depth 1-3/8th" (34.93mm)
Mounting Screw Spacing: 1 5/8" (41.28mm)
Lever Stem (0.50x.190)

Requirements (Must Read)

Switching from an Import pot to a US Spec pot like our Gunstreet Pots will require you to have 3/8th pot holes on your control plate
Our pots will need a 1/4th diameter knob. The Import 6mm knobs found on most imports, MIM, and MIJ guitar will not fit.
Some cheap Import guitar cavities are designed for Mini 12mm pots. To install a 24mm Fullsized pot may require routing out some of the cavity
If converting your layout to reverse. Confirm your cavity can fit a switch in the last position. Some bodies are routed only for the standard layout.

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!

Instructions and Technical Specs

VVC (Volume Voicing Circuit)

Down: Saves more low end as you are using the Volume

UP: Saves more High end as you are using the Volume

How to install a Solderless 3 way telecaster kit

Videos and Demos

Layout:

Standard (Switch-Volume-Tone) Reverse (Volume-Tone-Switch

Variant
