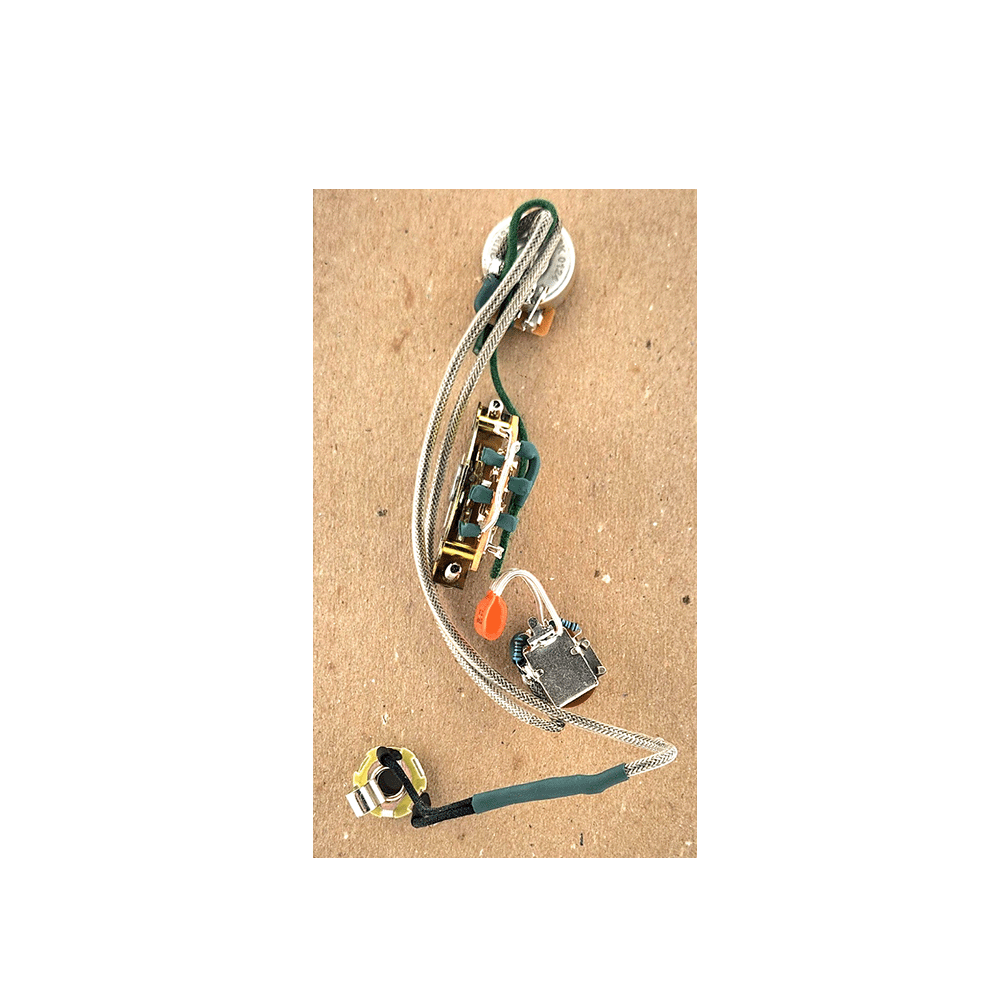

Gunstreet PRS Classic Lever Coil Tap Wiring Harness

Sale price$119.95

Our kits are a perfect drop-in replacement for your PRS style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

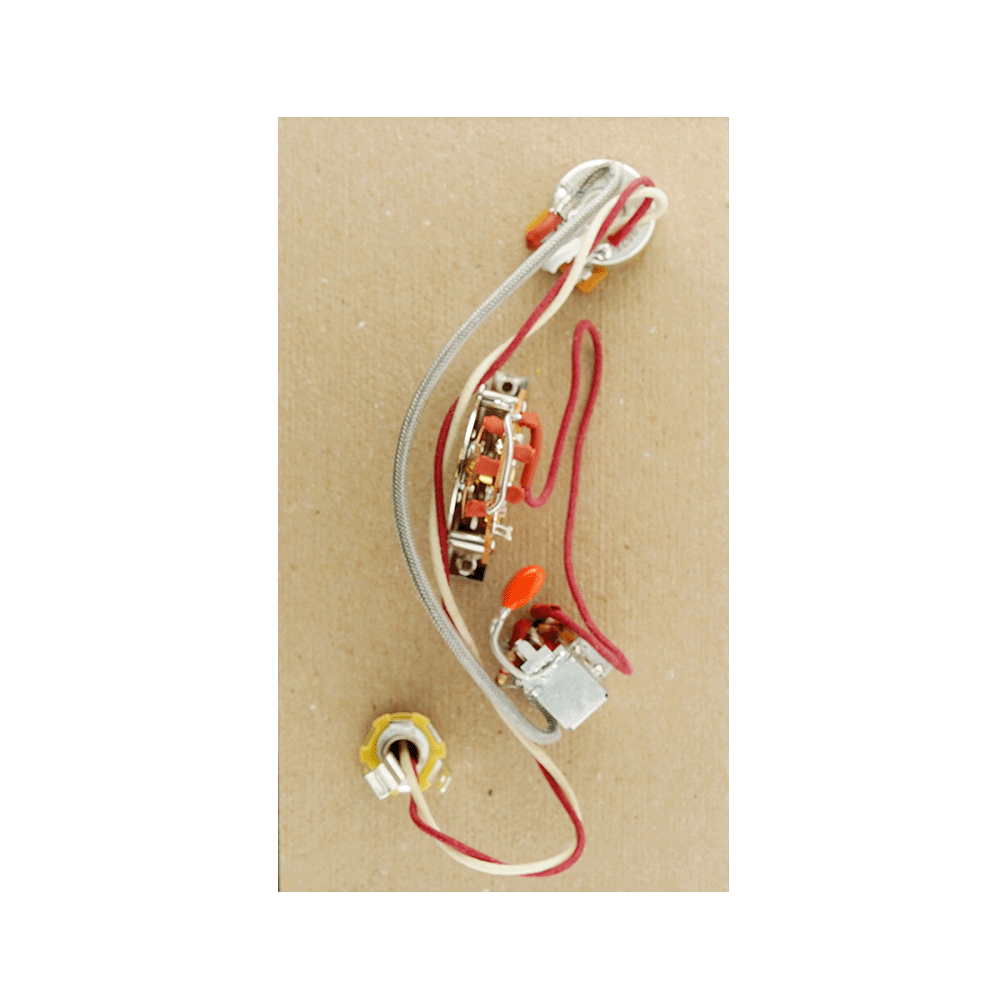

  1. Red 50’s Wiring (Vintage High Pass Filter) This wiring was found in the first gen of electric guitars. It features a transparent sound as you roll off the volume at the cost of a steep volume taper and an on/off tone control that interacts a lot with your volume position
  2. Blue Modern Wiring: (Low pass Filter) This comes standard in most instruments and is what most people are familiar with when it comes to functionality. This style is what you call a low pass filter, meaning as you roll the volume down more highs will disappear.
  3. Green Treble Bleed (Modern High pass Filter) Found stock in most Prs guitars this one is often called a “Volume bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.

Part Info

Part Info

  • 3 way Oak Switch Specs

    • Body cavity depth 1-3/8th" (34.93mm)

    • Mounting Screw Spacng1 5/8" (41.28mm)

    • Lever Stem (0.50x.190)

DHE Gunstreet Pots "Universal fit"

  • Taper Style: Custom Audio Taper

  • Knob type: 18 spline Coarse knurling

  • Shaft diameter: 8mm

  • Required mounting hole diameter: 8mm

  • Thread type: M8 x 0.75
  • Value: 500k +/-15%

Capacitor Specs

  • Brand: CDE

  • Model: "Orange Drop"

  • Value .022uF -/+10%

Neutrik Output Jack Specs

  • Mounting hole diameter 3/8" (9.52mm)

  • Thread 3/8 x 32

  • Threaded portion height 1/4" (6.35mm)

Requirements (Must Read)

  • Your pickups must have 4 conductor wires
  • Our Custom Pots use an 18 tooth knurled shaft. You will need a knob that fit this. SE's stock knobs will fit this, but you will want to confirm US spec models

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!

Instructions

All kits include a paper diagram. Online "How to instructions" coming soon

Filter circuit:
