Gunstreet Super Sonic Custom 10 Position Circuit Wiring Harness

Sale price$109.95

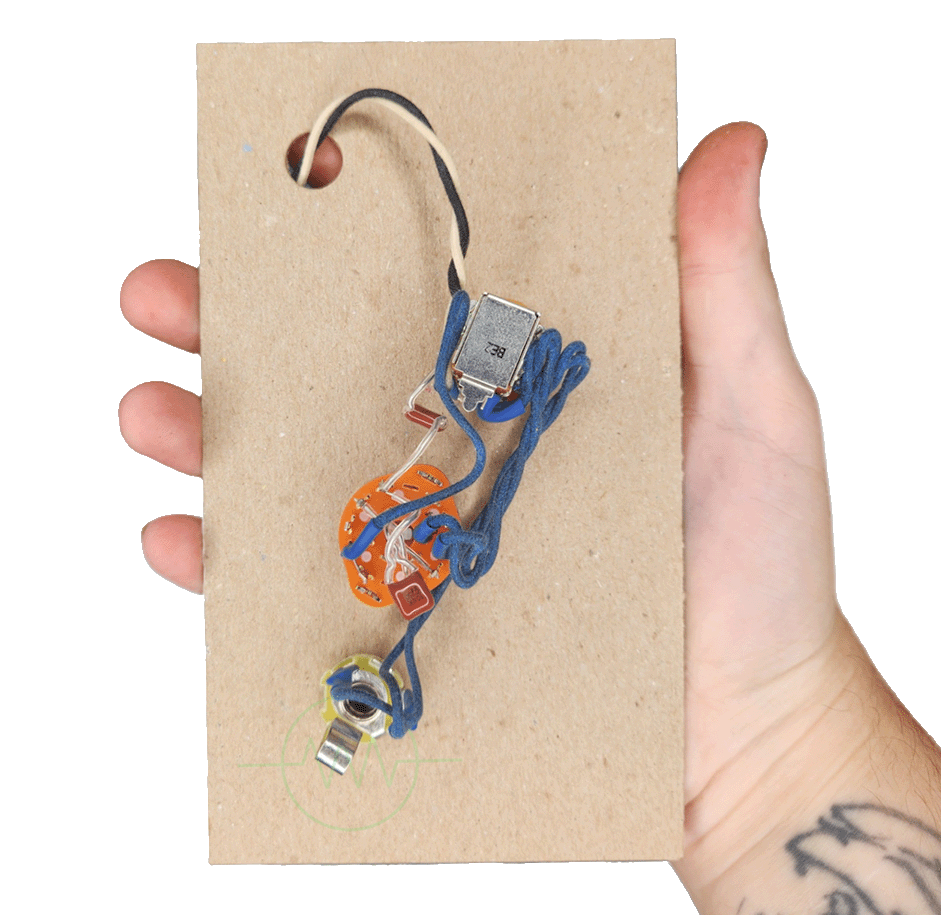

This custom circuit Sean designed gives you a ton of sound options to play with by completely changing the layout of the guitar. Master volume with a coil cut on it, 5 way rotary switch and an arcade button at the top As seen on Youtube - I Finally re-Finished my Squier Super Sonic + 10 total pickup settings & a kill switch - YouTube



Main Filter Circuit:

  • Low Pass: Saves more Lows as you decrease the volume

  • High Pass: Preserves more High end as you decrease the volume



How the switching works

Switching options

  1. Humbucker Mode (Push Pull “down”)

    1. Bridge

    2. Bridge & Neck normal

    3. Neck

    4. Bridge & Neck in Series

    5. Bridge & Neck Filtered Series

  2. Single Coil (Push pull “UP”)

    1. Bridge Single Coil

    2. Bridge & Neck Single Coil normal

    3. Neck Single Coil

    4. Bridge & Neck Single Coil in Series

    5. Bridge & Neck Single Coil Filtered Series

Part info

Alpha Low Profile Metric Control Pot Specs

  • Resistance 500K-ohm

  • Taper Style: Audio

  • Knob type = coarse knurling

  • Shaft diameter 6mm

  • Thread type: M8 x 0.75

  • Required mounting hole diameter 3/8" (9.52mm)

Push pull pot specs

  • Required body depth for install: 1 1/8” (28.58)

Alpha rotary

  • Pos Numbers: 5

  • Decks: 1

  • Terminal style: Non-Shorting

  • Knob Style: Solid Shaft

  • Shaft diameter: 1/4” (6.35 mmm)

Arcade Button

  • Rated lifecycle: 5million

  • Required mounting hole diameter: 1.114inch (28.3MM)

Neutrik Output Jack Specs

  • Mounting hole diameter 3/8" (9.52mm)

  • Thread 3/8 x 32

  • Threaded portion height 1/4" (6.35mm)

Our Gunstreet Promise

We take our quality very seriously. That's why we only use real trained technicians who hand build each kit, and then send it through our proprietary testing process where we audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!
